Home > Products > Teflon Heat Resistant Products > Nitoflon Tape 973UL-S T0.13mm*W50mm*L10m

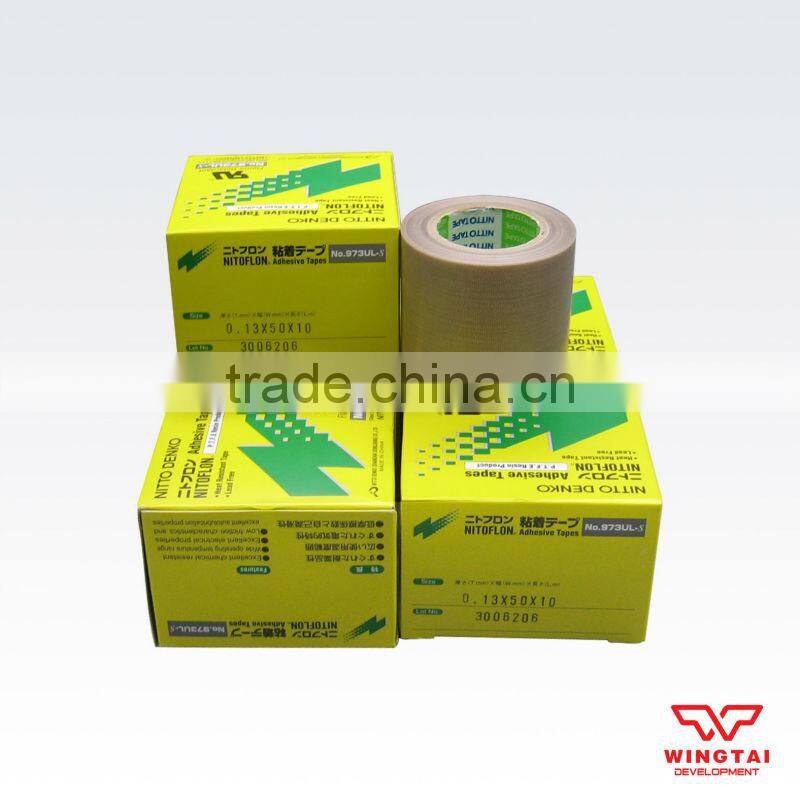

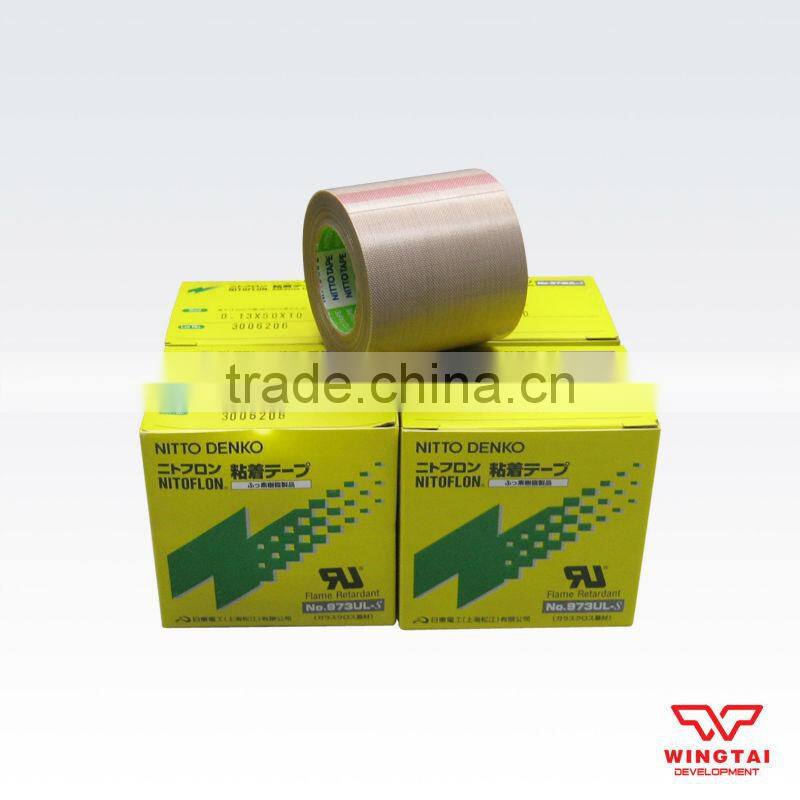

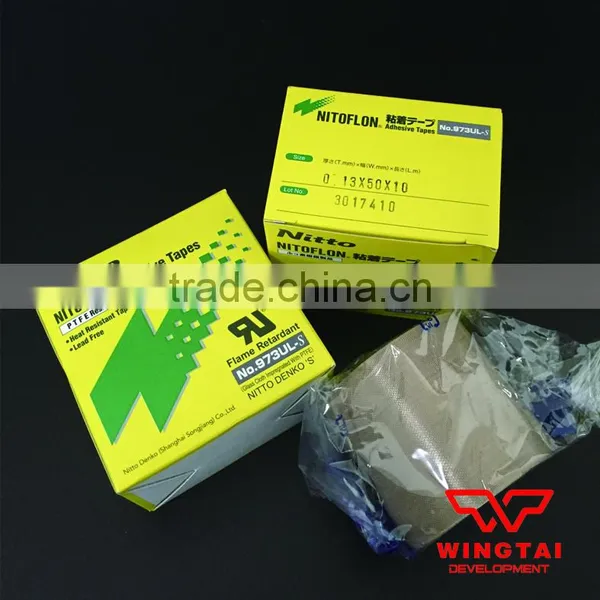

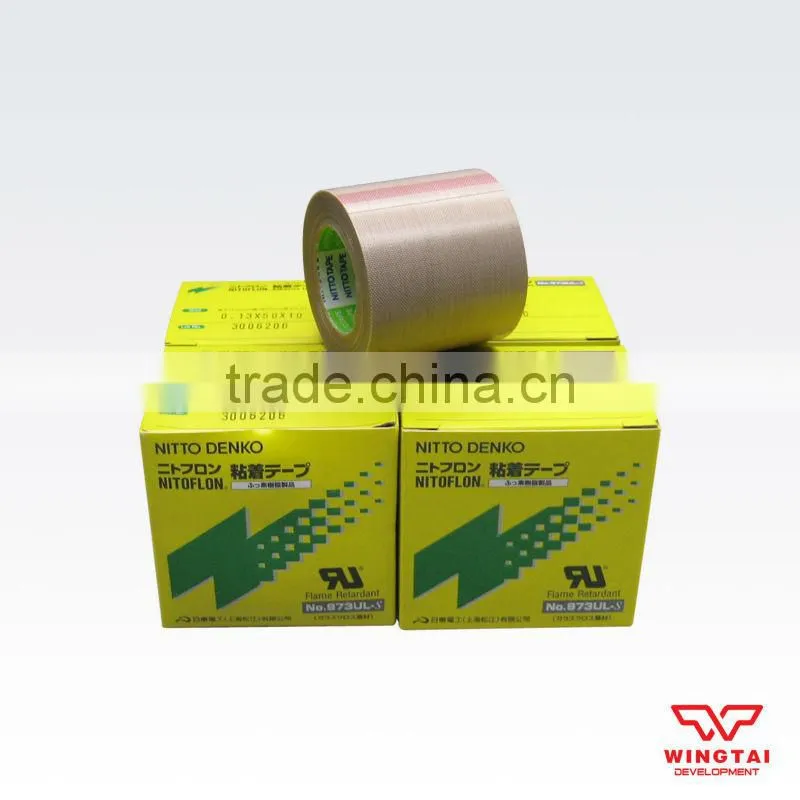

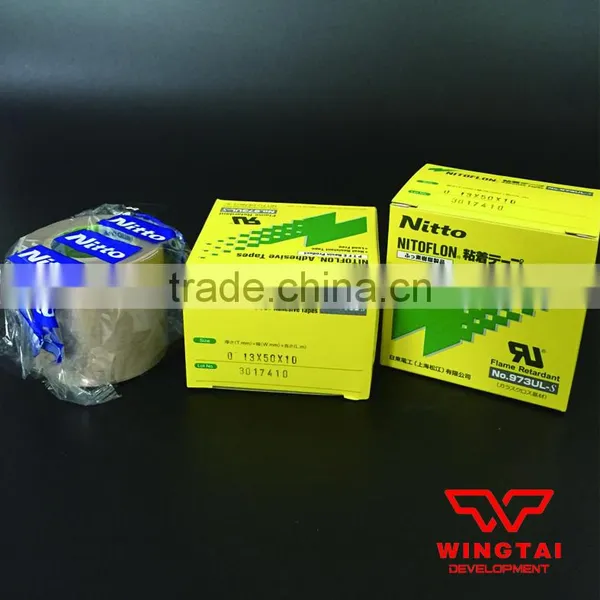

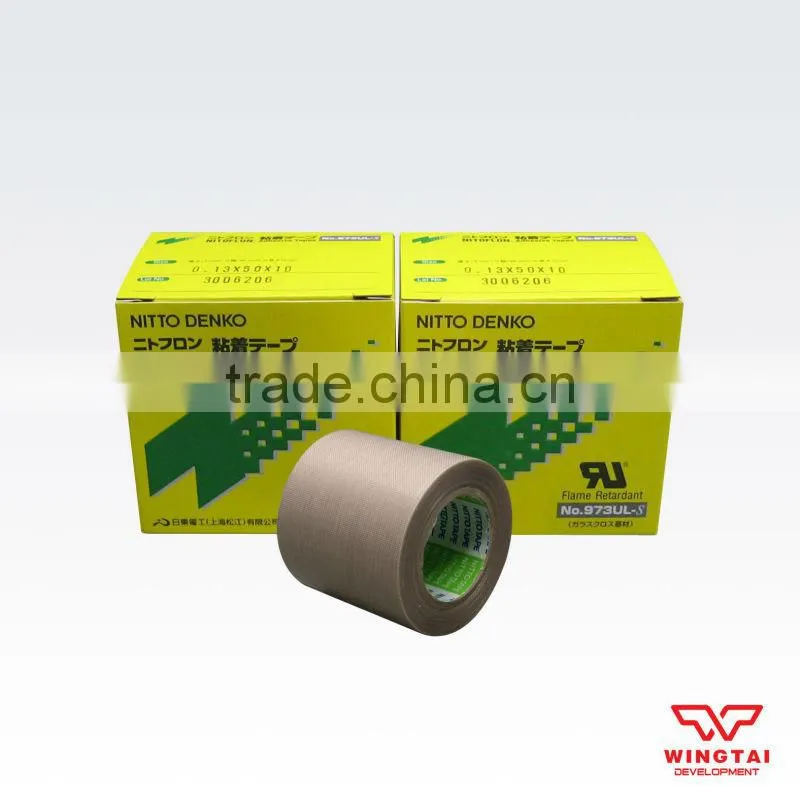

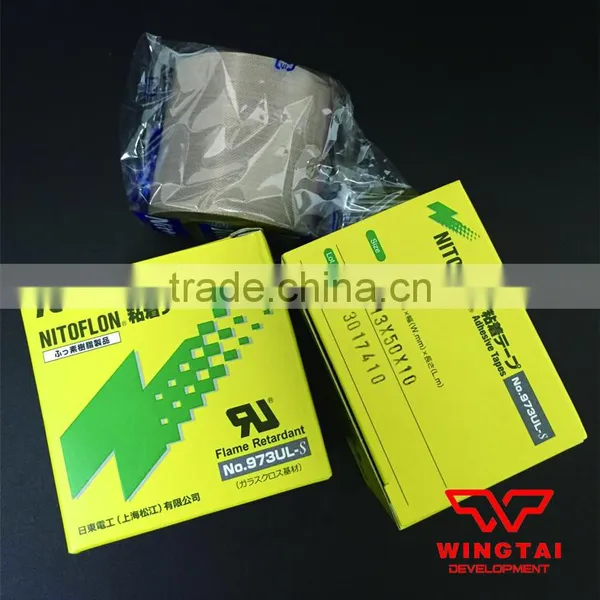

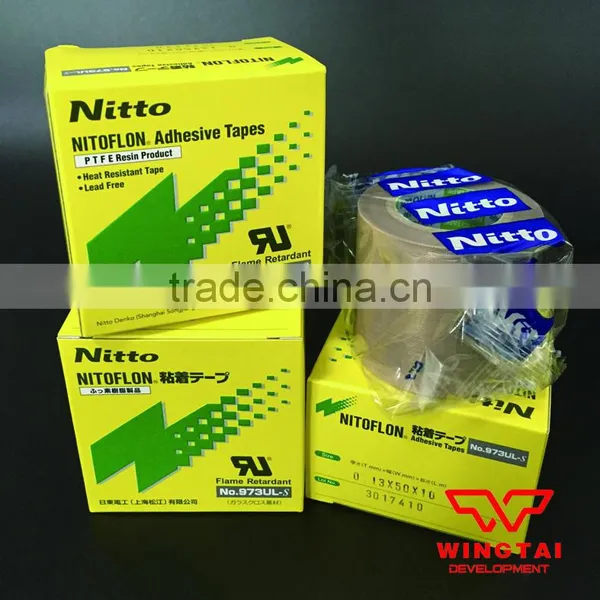

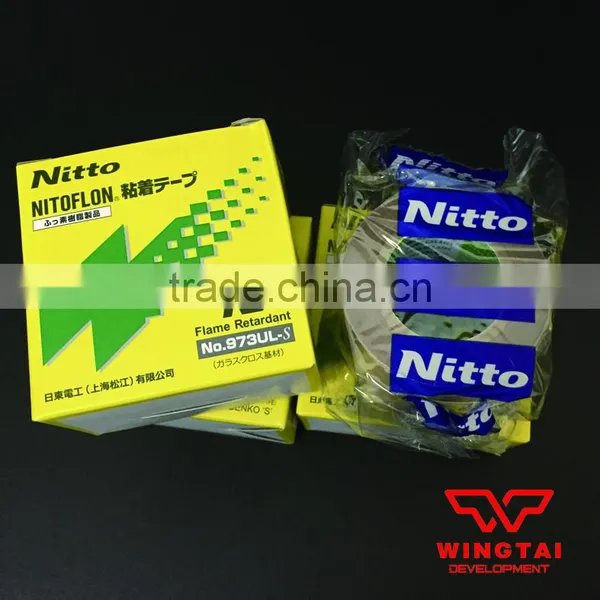

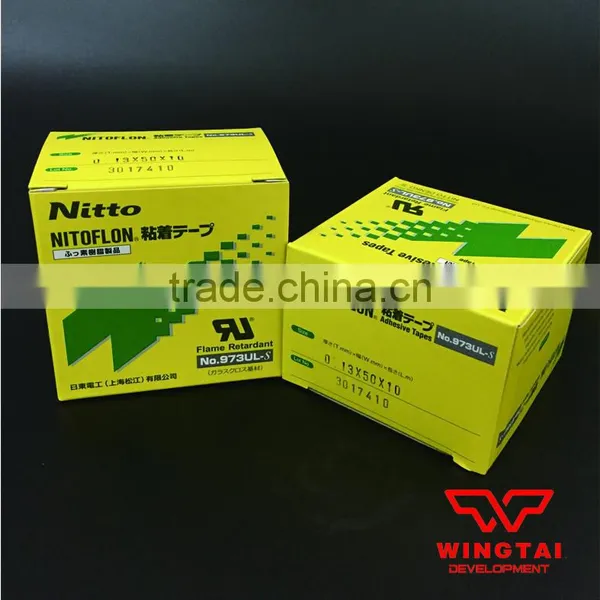

Nitoflon Tape 973UL-S T0.13mmW50mmL10m

Name: Nitoflon Tape 973UL-S T0.13mm*W50mm*L10m
Brand: Nitto
Availability: InStock

FOB Price

US$ 16 - 25 / Roll

1 Roll(Min. Order)

Port Shantou / Shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	PTFE	Use	Masking
Adhesive Side	Single Sided
Adhesive Type	Hot Melt, Pressure Sensitive
Design Printing	No Printing	Place of Origin	Japan
Brand Name	Nitto	Model Number	973UL-S(0.135010)

Product Description

Japan NITTO DENKO P.T.F.E Resin Product NITOFLON Adhesive Tapes

Nitto reflective tape 973UL-S (T0.13mm*W50mm*L10m)

Product Description

Specification
	Color		Beige
	Spec.		T0.13mmW50mmL10m
	Short-term heat resistance		300℃
	Continuous heat resistance		-60~260℃
	Adhesive Strength	25℃	6.8 N/19mm
		100℃	3.2 N/19mm
		150℃	2.2 N/19mm
	Tensile Strength		240 N/19mm
	Unwinding Force		5.9 N/19mm

Features:

Environmentally friendly products.
Has a good off models and smoothness.
Has good heat retention and dimensional stability.
Nonadhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.

Usage:

• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation

Product Information

Overview:

Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.

More Specification

More Specification

Model	Color	Substrate			Short-term heat resistance(℃)	Continuous use temperature(℃)
		Thickness(mm)	Width(mm)	Length(m)
No.973UL-S	Beige	0.13	10	10	300℃	-60~260℃
			13
			15
			19
			25
			38
			50
			75
			100
			300
			600
No.973UL	Beige	0.18	19	10	300℃	-60~260℃
			25
			50

Technical Data

Technical Data

Item		No.973UL-S	No.973UL
Thickness (mm)		0.13	0.15	0.18
Tensile strength (N/19mm)		240	590	530
Adhesive strength (N/19mm)	25°C	6.8	9.0	9.7
	100°C	3.2	3.9	4.7
	150°C	2.2	2.6	3.0
Unwinding force(N/19mm)		5.9	5.9	7.5
Temperature range(℃)		-60~260
Test Method		Compatible with JIS C 2107
