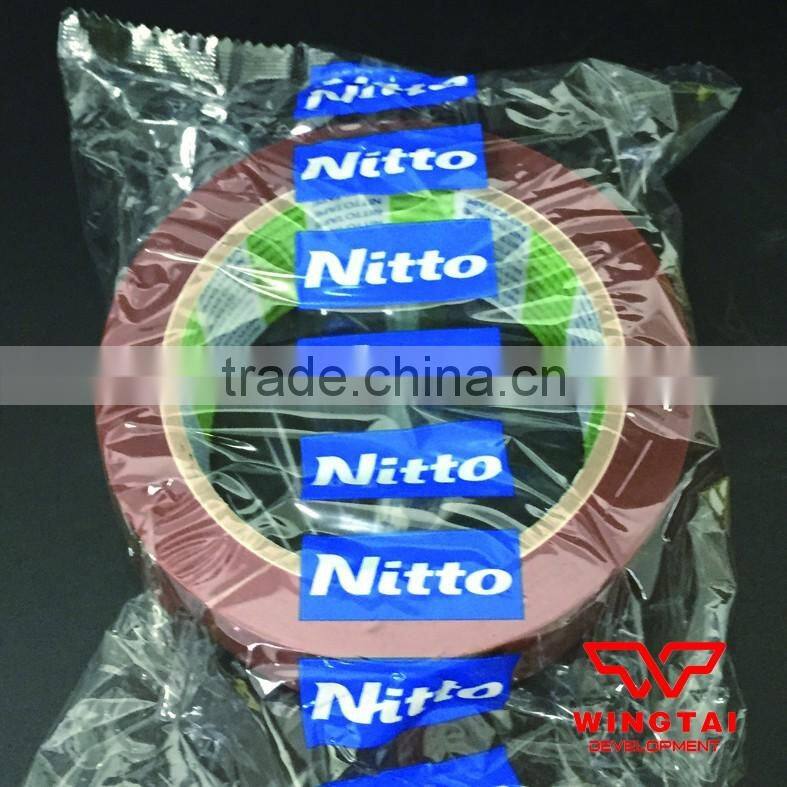

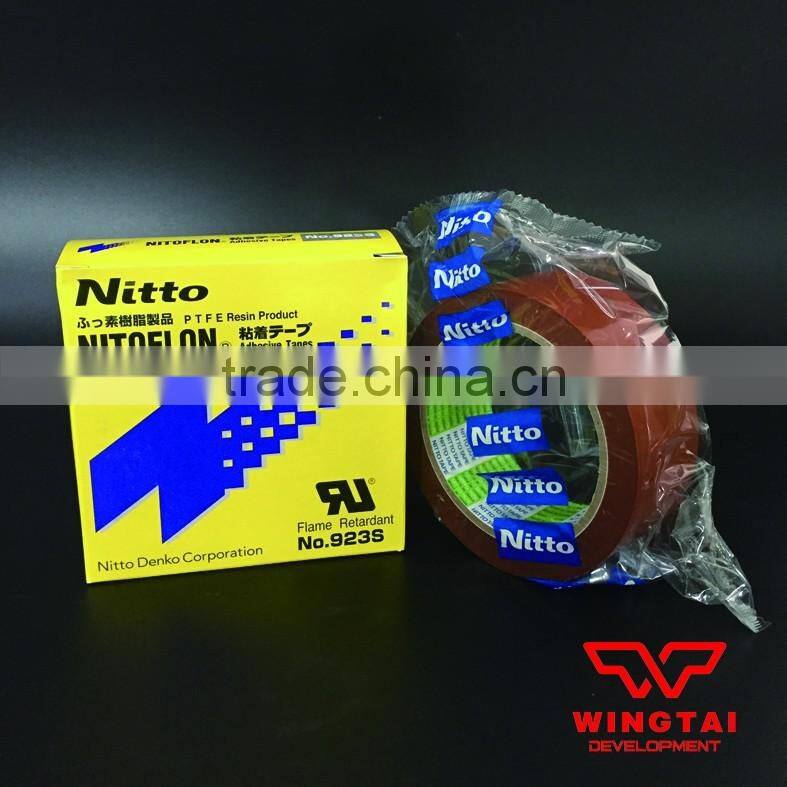

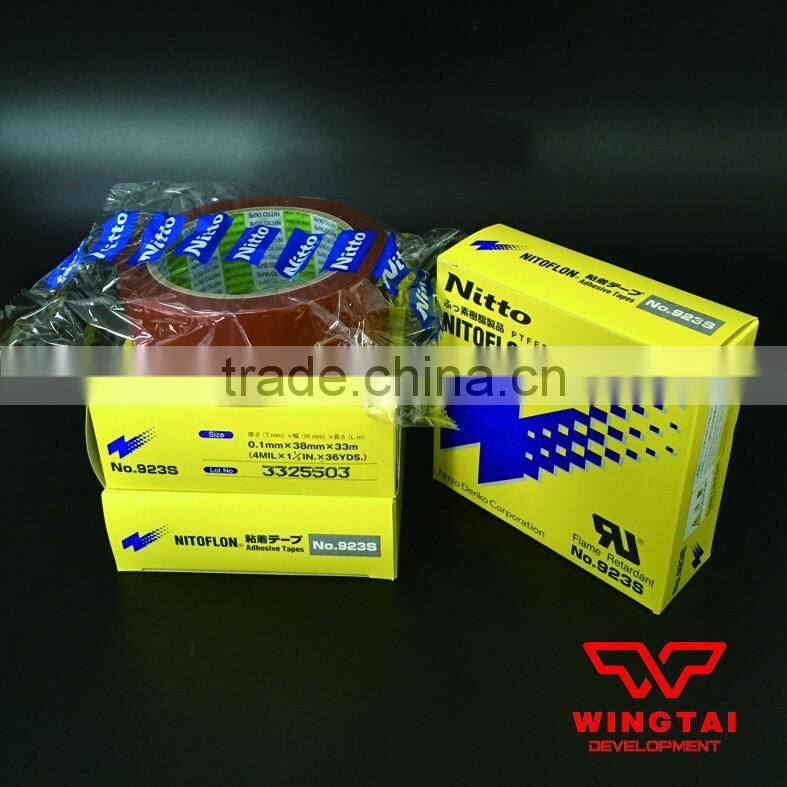

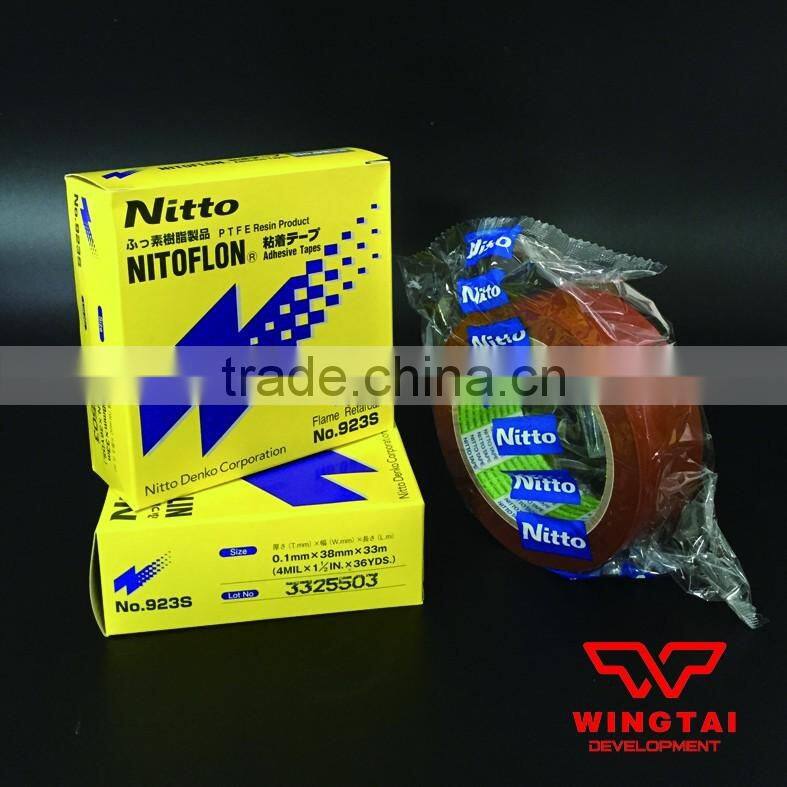

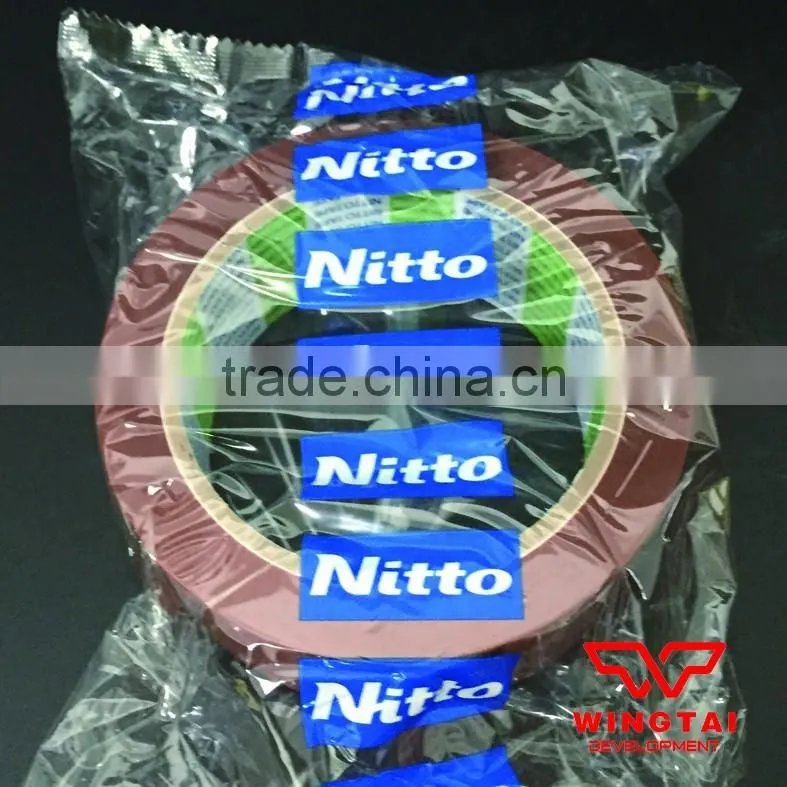

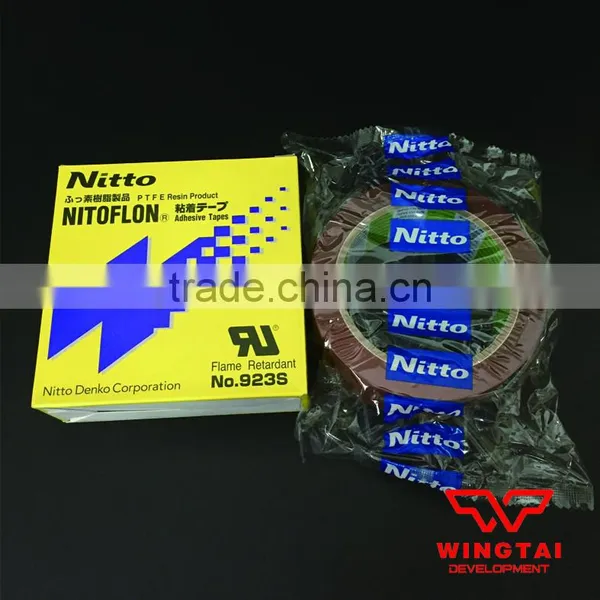

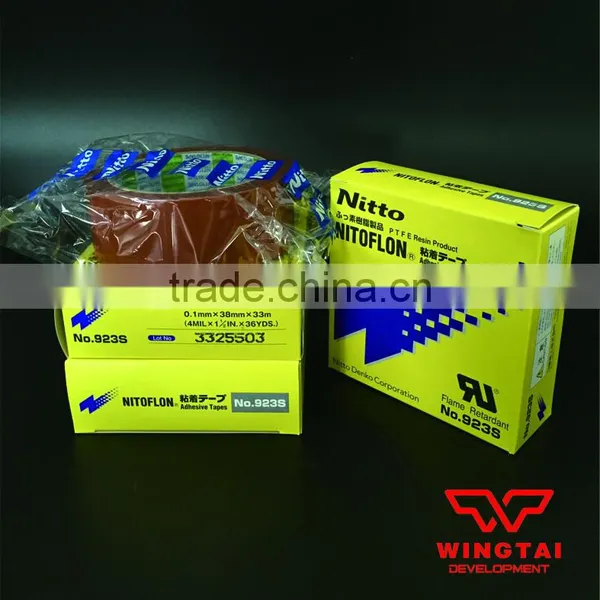

Nitto Tape 923S T0.10mm*W38*L33m
Product Description
Specification | ||
|
Color |
Orange |
Spec. |
T0.10mm*W38mm*L33m |
|
Backing Material |
PTFE film |
|
Adhesive |
Silicone |
|
Flammability Rating |
Passes UL-510 Flame Test |
|
Short-term heat resistance |
-50~300℃ |
|
Continuous heat resistance |
-50~250℃ |
|
NO. 923S is a orange PTFE tape and use oriented polytetrafluoroethylene (PTFE) film as a based material. Single surface treated and coated with a silicone adhesive can prevent with high heat and friction resistance.
Product Information
Features
1.The nonadhesive side exhibits excellent features such as desirable electrical properties, resistance to heat, weather, chemical, water (water-shedding), and anti-friction.
2. UL Rated.
3. Superior tensile strength.
4. Strong electrical properties.
Product Construction
Properties
BACKING MATERIAL |
|
PTFE Film |
||
ADHESIVE |
|
Silicone |
||
COLOR |
|
Brown |
||
Flammability Rating |
|
Passes UL-510 Flame Test |
||
|
|
Imperial |
|
Metric |
Total Tape Thickness |
|
3.9 mils |
|
0.10 mm |
Tensile Strength |
|
37.7 lbs/in |
|
128 N/19mm |
Elongation |
|
71% |
|
71% |
Dielectric Strength |
|
11,000 volts |
|
11.0 kV |
More Specification
Model |
Color |
Substrate |
Short-term heat resistance (℃) |
Continuous use temperature(℃) |
||
Thickness (mm) |
Width(mm) |
Length (m) |
||||
NO.923S |
Orange |
0.10 |
38 |
33 |
-50/300 |
-50/250 |
NO.923S |
Orange |
0.10 |
50 |
33 |
-50/300 |
-50/250 |
