Help CenterXF Boling Dryer
Related Products
-
ZQG Vibra Fluid-Bed Dryer MachineNegotiableMOQ: 1 Piece -
Spring Cone CrusherNegotiableMOQ: 1 Piece
-
Lightweight Fiberglass Pipeline /GRP Pipeline/FRP PipelineUS$ 0.1 - 100MOQ: 1 Meter
-
2013 Filament Winding FRP PipelineUS$ 0.6 - 600MOQ: 10 Meters
-
2013lightweight Fiberglass Pipeline /GRP Pipeline/FRP PipelineUS$ 0.5 - 550MOQ: 1 Meter
General of application
It is suitable for drying powder and granule material such as raw material in pharmaceutical industry, granule material for pressing tablet, infusion of Chinese medicine; in chemical industry, drying and damp removing of citric acid, other powder and granule shape materials. It can also be suitable for food, drinking infusion, etc; in grain process, drying maize embryo, feedstuff and so on. In general the maximum size of material may reach 0.1-6 mm. The best is 0.5-3 mm.
Principle of work
The clean and hot air enters into fluidization bed through distributor of valve plate.The humidity raw material fed from the feeder forms the boiling state by hot air.Because of the wide contace between hot air and raw materials,the time of drying is shoted.The air enters from front of bed boiling in bed several minutes,and float from another of bed.The machine works in negative pressure.

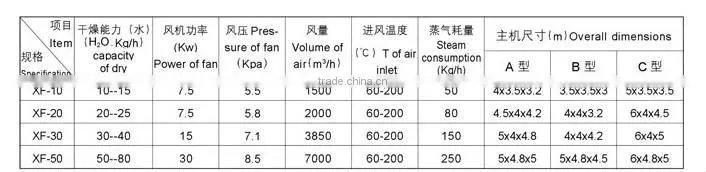

Technical data
