Specifications
BOT/ CDM/TURNKEY biogas power plant,biomass power plant,methane gas power plant,biogas project,design, production,installation.BOT/ CDM/TURNKEY biogas power plant, biomass power plant, methane gas power plant, biogas project

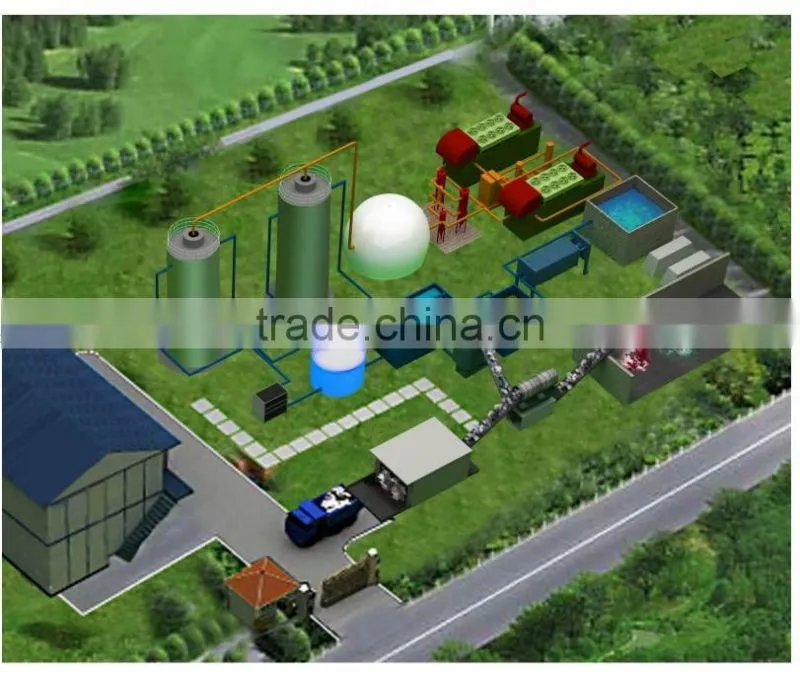

BOT/ CDM/TURNKEY biogas power plant, biomass power plant, methane gas power plant, biogas project front drawing view,
Main Services
A biogas technology consultant.
What is biogas and why do we need it?
What we can get from biogas?
How to produce biogas?
How to use biogas?
Main Mission
A designer of biogas plant.
We provide design service according to customer’s requirement.
Drawing books enable customer to do civil work and construction.
Detailed material list enables customer to choose and purchase the right equipments,
devices and materials easily.
We offer services of construction and installation guide,project inspection and acceptance.
How to Start a biogas power plant/Biomass power plant/biogas project:
The aim of establishing a biogas plant can vary from environmental protection and waste
reduction to renewable energy production, and can include financial and non-financial
incentives. Local farmers and farmers organizations, organic waste producers and collectors,
municipalities, energy producers and other involved actors are the usual initiators of biogas
plant. From the vital spark of a biogas project idea to the end of its life-time, the process undergoes the following steps:
1.Project idea
2.Pre feasibility study
3.Feasibility study
4.Detailed planning of the biogas plant
5.Permission procedure
6.Construction of the biogas plant
7.Operation and maintenance
8.Re-investment, renewal and replacement of components
9.Demolition or refurbishment

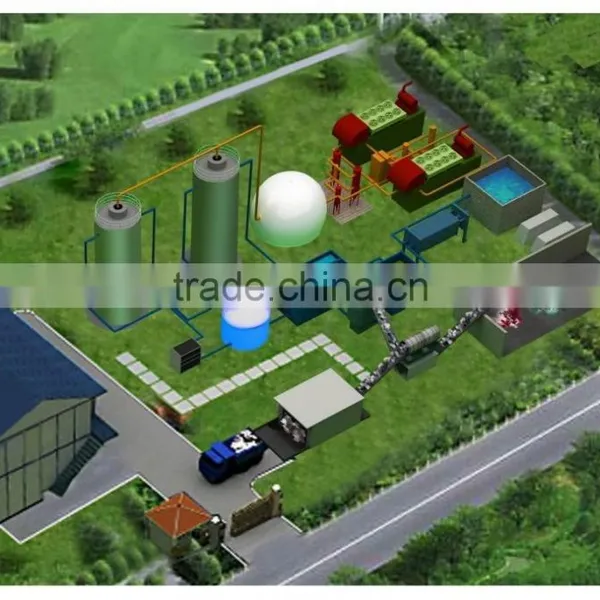

The process flow chart of BOT/ CDM/TURNKEY biogas power plant,biomass power plant,methane gas power plant,biogas project
The main equipments of BOT/ CDM/TURNKEY biogas power plant,biomass power plant,methane gas power plant,biogas project
No. |
Equipment |
1 |
CSTR Anaerobic digestor |
2 |
Double-membrane gas holder |
3 |
Mixing system,Homogeneous pool |
4 |
Pump,manure |
5 |
Pump,slurry |
6 |
Pump,water |
7 |
Pump,water cycle |
8 |
Pipe systemValveInstrumentElectric equipmentAnti-corossionThermal insulation |
9 |
Electric control |
10 |
Biogas scrubber |
11 |
Biogas generator with CHP |
12 |
Biogas generator with CHP |
13 |
Installation |
Some biogas equipments photos of BOT/ CDM/TURNKEY biogas power plant,biomass power plant,methane gas power plant,biogas project
Integrated Enamel pressed steel biogas anaerobic digester,
1 Industrialized production, more reliable quality
2 Faster Construction speed , save the management cost.
3 Nice appearance, more convenient utilization and maintenance.
4 Substantial price and repetitive appliance.
5 Equipment , highlight the additional value
6 Easy to install and transport
Biogas Holder Bag Structure(membrane),
PVC membrane gas holder
Gas inlet/outlet
Fixing device
Membrane material,
Red-mud PVC membrane
Thickness up to 1.8mm available
High tensile strength,tear resustabce,adhesion,temp resist,ordinary flame resistance,airtightness,loading capacity and puncture resistance
Standard color is red,other colors also avaible
Skid Mounted Biogas Scrubber/H2S Scrubber/Biogas h2s Scubber/ Biogas Filter/ Biogas Sulphur Romover/ Biogas Purification System
Matrix biogas desulfurization and treating integrated system , it is for removing the H2S and impurity of the biogas;desulfurization function is to use the TH701 series high efficiency desulfurizer inner the tank, to remove the H2S.
The desulfurization and treating integrated system, with reasonable structure, low bed resistance,High desulfurization and treating degree,Convenient technology operation,High penetrable sulfur degree,good adaptability of installation position,No second pollution,Safe and easy installation, and so on.
The system use TH701 series desulfurizer, which use Iron oxide as the main active constituent, make into high efficiency
biogas treating system with other accelerator,even in environment without Oxygen and Nitrogen, it can remove the H2S else, it can remove the organic sulfur such as mercaptan, and it can remove most the Nitric oxide.
Material
Cast Iron or 304 stainless steel
Function
Remove the Sulfur,moisture,dust,NH3, Fluorine,Chlorine
Biogas Generator/ Biogas Electric Generator/ Biomass Cogeneration Unit/ Biogas CHP/ Biomass Generator
Power Range: 20KW-1000KW
Gas Engine: Cummins/MTU/Perkin Gas Engine/ MAN
Control Panel: Auto and Intelligent ComAp or UK Deep Sea
Generator: French Leroy Somer, UK Stamford/ UK Engga/ USA Marathon
Organic Waste Treatment Solid Liquid Separator
This system adopts the screw extrusion method of continuous work solid liquid separator, suitable for separating containing solid particles is greater than or equal to 0.4-1.0 mm. Material liquid containing solid ratio after the big separation
requirements materials moisture content is low.Especially suitable for the treatment of beer sludge dehydration, man-made board factory waste water, liquid dehydration and cattle farms, pig, chicken, such as the original manure of livestock and poultry and slaughterhouse wastewater, etc
