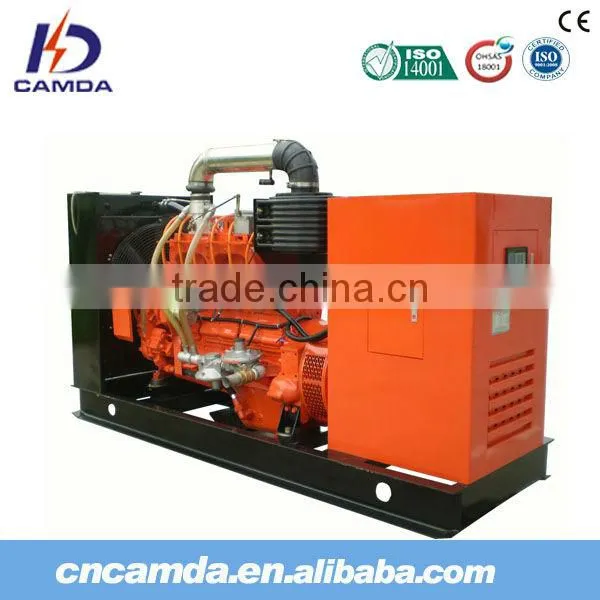

Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine

Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine thumbnail-1
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine thumbnail-2
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine thumbnail-3
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine thumbnail-4
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine thumbnail-5
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine photo-1
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine photo-2
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine photo-3
Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine photo-4

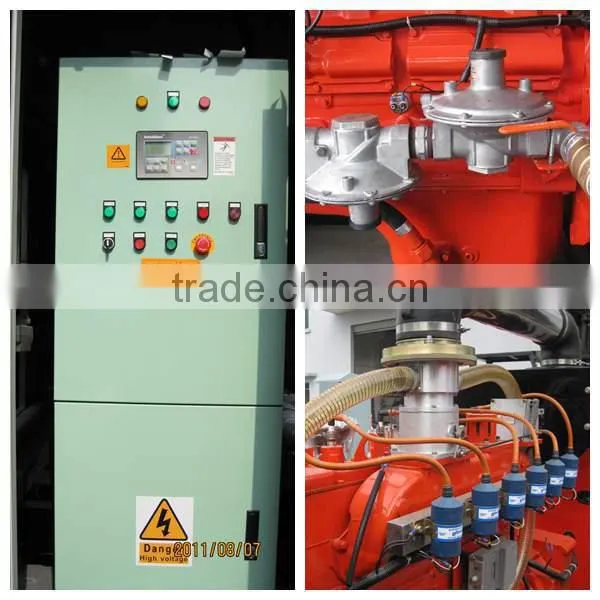

Biogas Generator Set 120KW/biogas Gensetr/gas Generator/gas Engine photo-5
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Camda
Model Number:
KDGH120-G
Contact Supplier Request Quote Chat Now
Camda New Energy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Camda
Model Number KDGH120-G
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50/60HZ
Rated Power 120KW/150KVA
Rated Voltage 380/480
Rated Current 228A/180A

Camda Biogas Power Generator /Gas generator/Biogas engine/Biogas power plant/Biogas Cogeneration/Waste to Energy with CE&ISO certificates

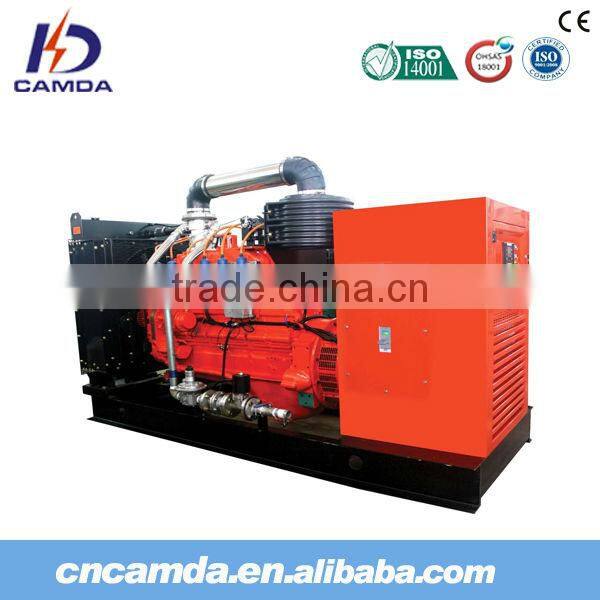

Biogas generator set 120KW/biogas gensetr/gas generator/gas engine




Gas genset data

Genset model

KDGH120-G

Prime power(kW/KVA)

120/150

Continuous Power(kW/KVA)

100/125

Connection Type

3 Phases 4 Lines

Power factor cosfi

0.8 lagging

Frequency (Hz)

50

Rated speed (RPM)

1500

Open type Genset Overall Dimension (mm)

2950x1100x1800

Soundproof type Genset Dimension (mm)

4600x1600x2200

Net weight without canopy(kg)

2525

The lowest gas consumption(m3/kw.h)

0.3 for natural gas/0.6 for biogas

Standard Scope of Supply:

  1. 1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by CCEC (Cummins Joint Venture in China) with best quality
  2. 2. Brand new brushless France Leroy Somer alternator
  3. 3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
  4. 4. Radiator for 40℃/50℃ ambient temperature
  5. 5. Ignition system adopted USA ALTRONIC
  6. 6. Emergency stop mounted
  7. 7. Battery,Battery cable and Battery charger
  8. 8. Standard tool box
  9. 9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
  10. 10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)



Accessories list

1. Maintenance Operation manual

2. Quality certificate, Gen-sets ex-factory testing report







Biogas generator set 120KW/biogas gensetr/gas generator/gas engine

Main Service of Biogas Power Plant



Design of biogas plant.
Drawing books enable customer to do civil work and construction.
Detailed material list enables customer to choose and purchase the right equipments, devices and materials easily.

We offer services of construction and installation guide,project inspection and acceptance.



Application Scope of Biogas Power Plant



1. Farm Waste Management Biogas

2. Food Waste Management Biogas

3. Industry Water Waste Management Biogas

4. Landfill Waste Management Biogas





Product Description





300KW Biogas Genset/ Biogas Generator/ Biogas Waste Power Plant in Malaysia

All biogas equipments as below:

Power Capacity:(300KW)

Install and debuge: 2014

Biogas plant type:  farm waste biogas

Biogas plant destination: Malaysia

300KW Biogas Genset/ Biogas Generator/ Biogas Waste Power Plant in Malaysia Reference Site Photos

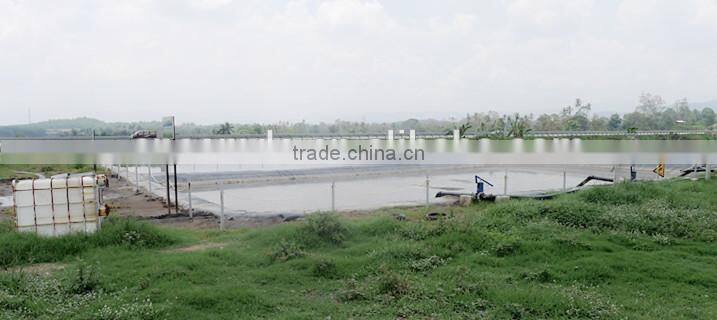

Biogas anaerobic digestor and biogas gas holder

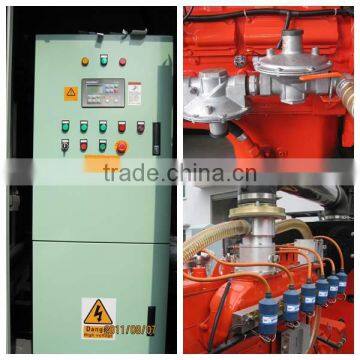

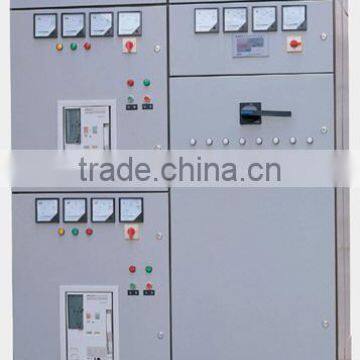

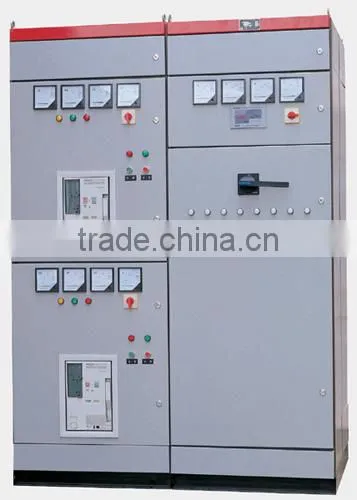

Electric control devices





Biogas generator set with sound and water proof container,remote radiator, auto air/gas mixer system,sychronizing grid parallel control system

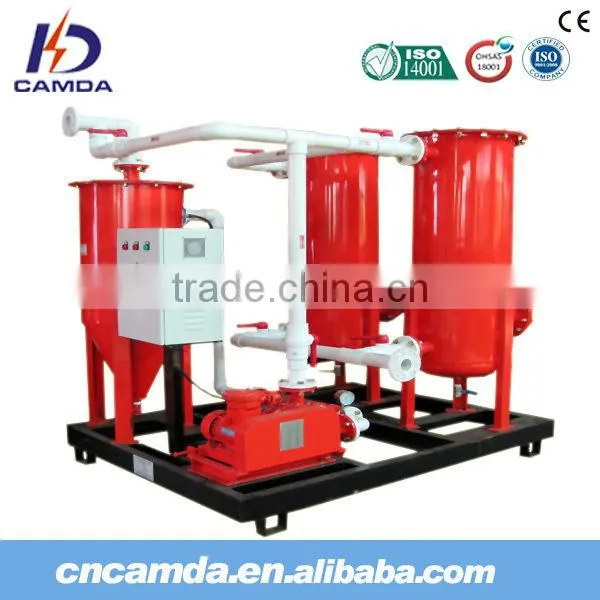

Auxiliary devices of Biogas Power Plant







Company Information

      Camda is established in 1998, located in Dong guan City, with a new industrial park covering 34000m2, dedicated system supplier of energy production,100MW installation capacity annually,anual sales revenue 680 million dollars.

Camda is a dedicated system supplier of energy production by diesel and gas powered generator set, waste treatment projects and solar energy. The company, based in Dongguan of Southern China, is basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas coal bed methane (CBM), associated gas and syngas. With decades of development and innovation, it has expanded its business to provide one-stop solution for waste treatment based on landfill, food waste, animal manure and waste water. Meanwhile, its pioneering in solar thermal power enables it to compete both at home and abroad.
