Genset working condition |
Ambient Temp 0°C~+40°C, Relative Humidity <90%(20°C), Altitude ≤1000m above sea level.
A. Natural gas
1. Adapted Gas: Natural gas,
2. Acceptable Natural gas pipeline pressure: 5~12kPa (before Pressure Regulating Valve.)
3. Gas heat value≥37MJ/Nm3 .
B. Biogas
Acceptable biogas pipeline pressure: 5~12kPa (adjustment required for higher pressure), change ratio≤1kPa/min
CH4 volume content≥30%, adjustment ratio≤2%/min
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3). Genset output power will increase as the gas heat value increase,
and if low heat value gas is used (Heat value<5500kcal/Nm3), it could cause power derate.
H2S content≤200mg/Nm3
NH3 content≤20mg/Nm3

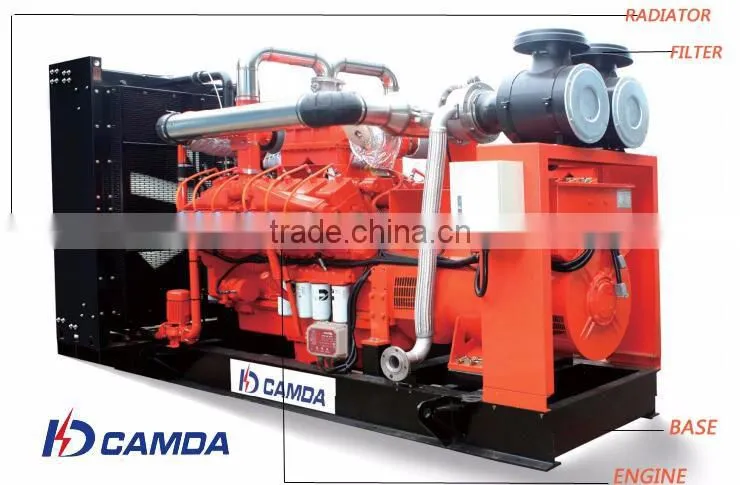

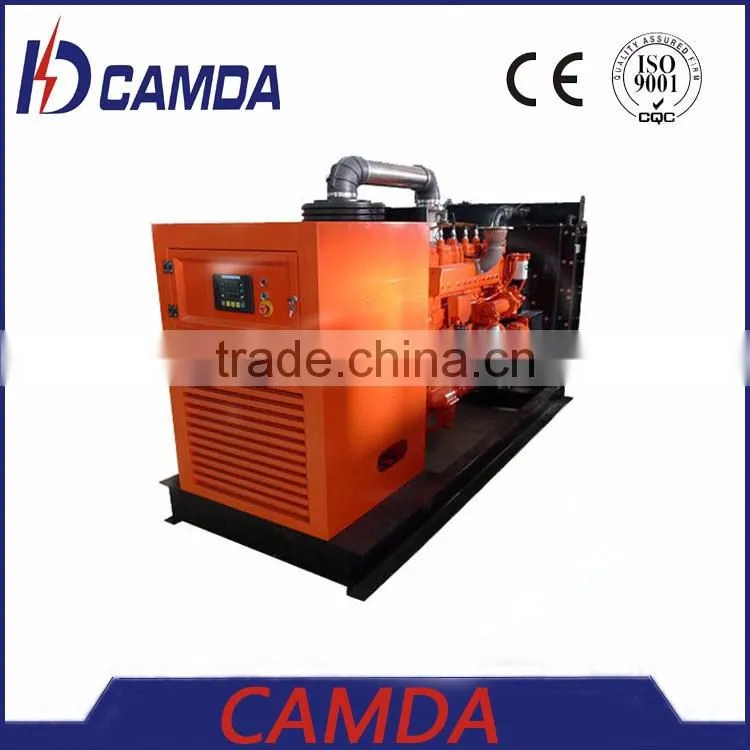

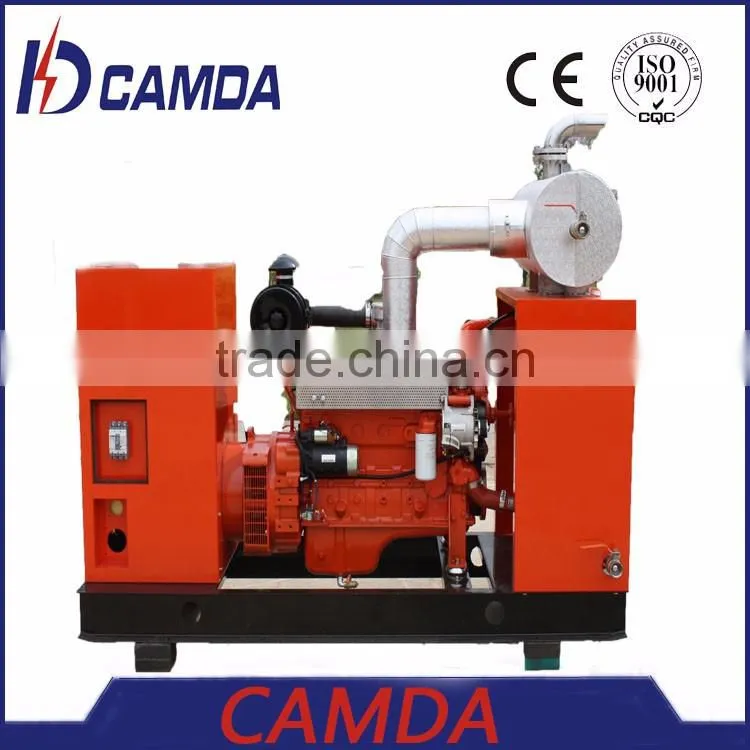

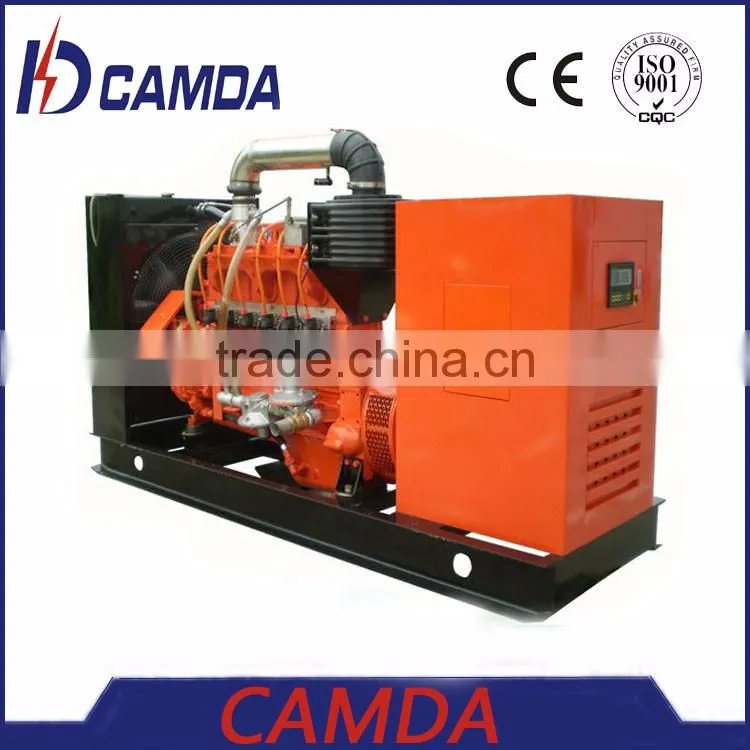

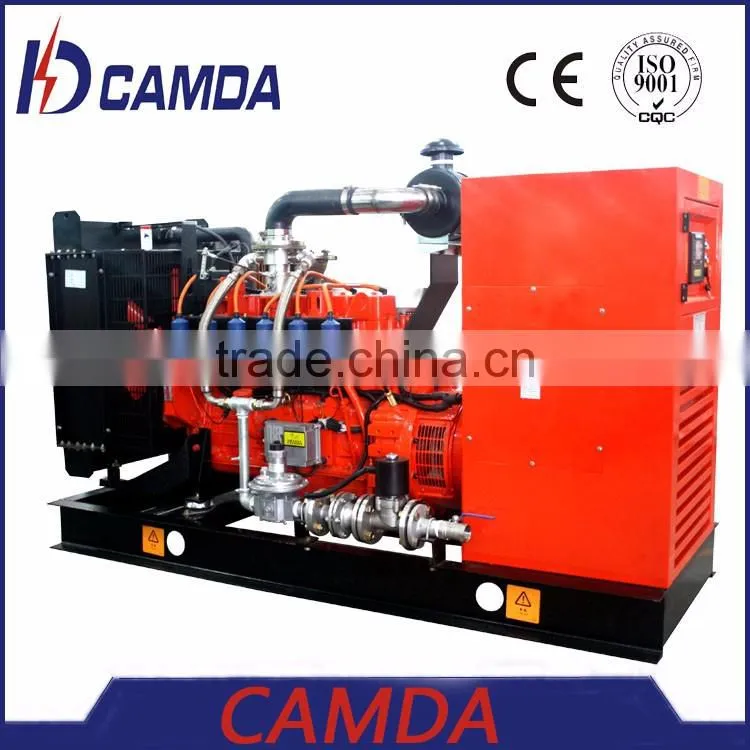

CAMDA Gas Generator Set |
A. Standard Scope of Supply:
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
B. Optional:

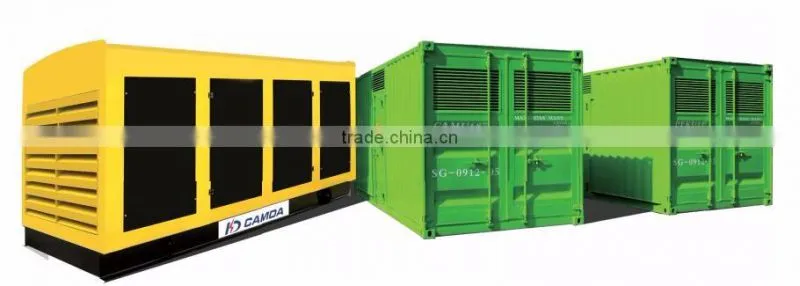

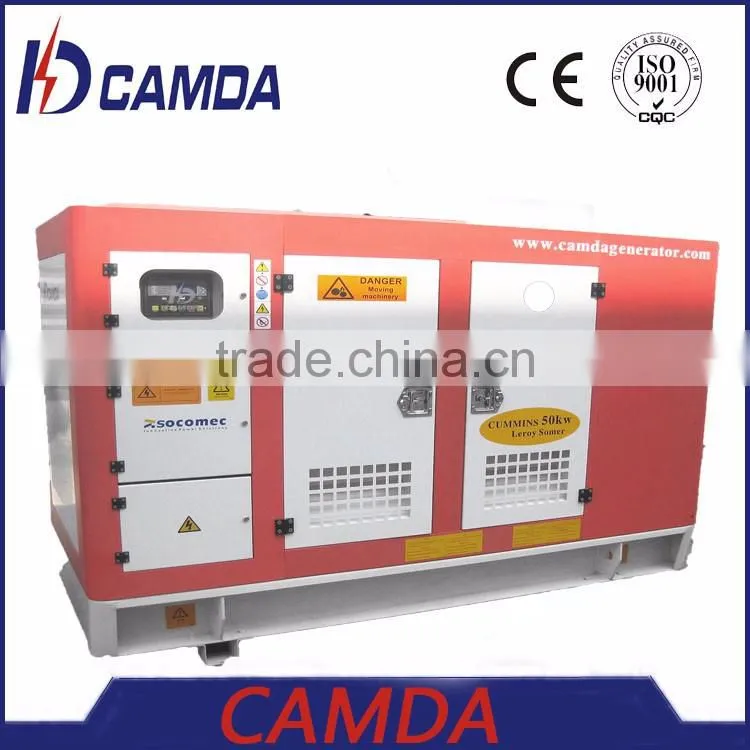

1. Sound-proof canopy
2. CHP system
3. Grid parallel system
4. Remote radiator
5. Auto oil filling system
6. Water heater
7. Oil heater
8. Gas leaking detector
9. Flame detector
10. Gas scrubber

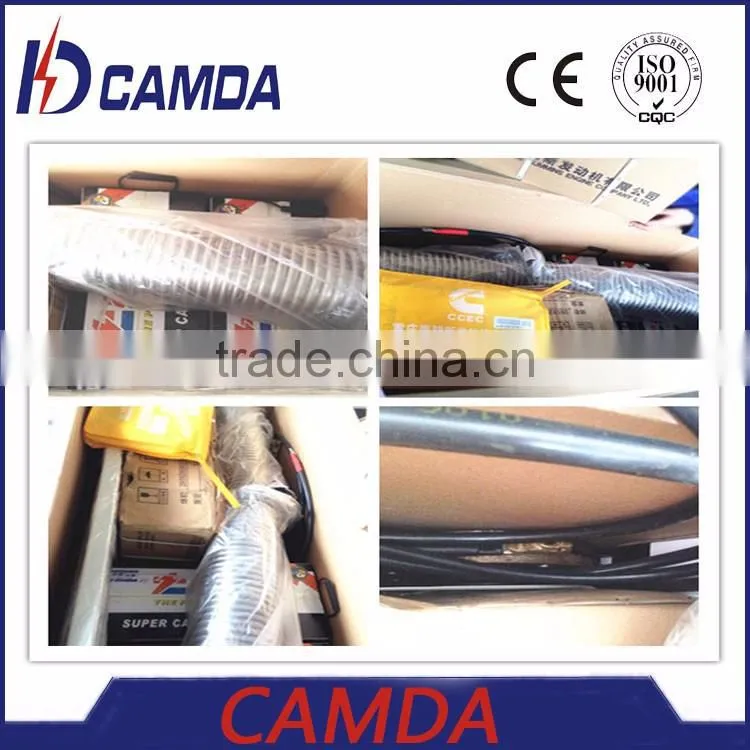

Packaging: sets of generators as you choose
Shipping: 45 working days after receiving deposit of generator
LIFETIME:
According to product design and end users' years experience, strictly following our operation manual and make genset load under 85% of prime power,
we guarantee the major overhaul terminal more than 15000 hours, and lifetime is over 20 years.
WARRANTY:
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since leaving China port,
our company provides free easily- damaged parts for the faults caused by the quality of products or raw material,
but exclude the damageable parts of engine due to customer's incorrect man-made operation.
After expiration, our company provides spare parts with cost for maintnance forever.
Camda New Energy Equipment Co.,Ltd.
(Authorized distributor of GE gas engines, Jenbacher & Waukesha)
Email: sonia@camda.cc • Web:
Address: Tangchun Industrial Zone, Liaobu Town, Dongguan city, Guangdong Province, China. (Postal Code 523407)
