Camda cogenerator with CE and ISO certificate from 30-500KW
Advantages:
1. For our air intake system,
we equip with manual ball valve, solenoid gas valve, fire arrestor and zero pressure valve.
2. For our ignition system,
we use the world famous ALTRONIC system, it contains the Hall sensor,ignition module, ignition coils, high voltage wires.
3. For our cooling system,
according to customers' real situation, we provide several choices: Heat Exchanger, Vertical Water Tank and Remote Radiator

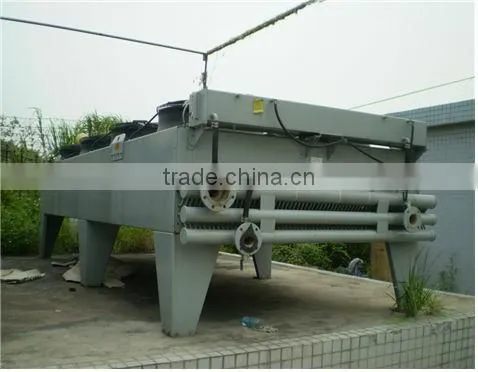

For remote radiator, it is not easy to be clogged, good heat dissipation.
4. For genset control,
we use the Czech imported Comap control system. With this system, we can parallel several gensets and also connect to nation grid.

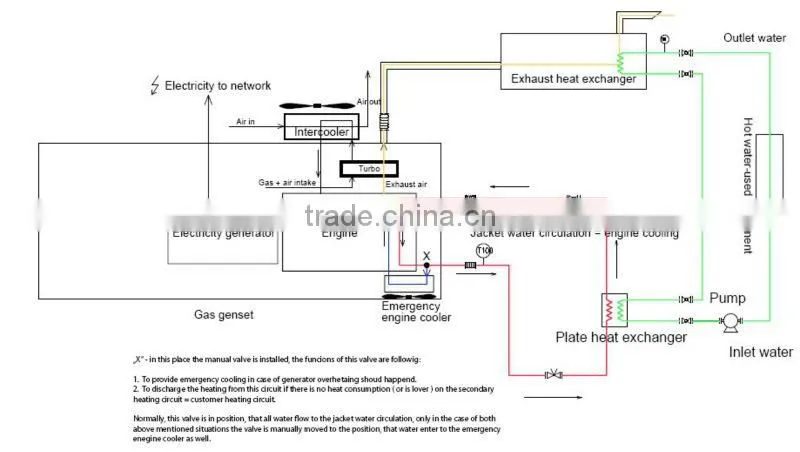

6. CHP introduction
Item |
Specification |
Material |
Quatity |
Exhaust-Gas Heat Exchanger |
304 |
Stainless steel |
1 |
Plate Type Heat Exchanger |
304 |
Stainless steel |
1 |
Water Circulating Pump |
ZG35 |
Cast steel |
2 |
Pipes&valves |
ZG3,20# |
Cast steel |
1 |
Equipment housing |
Q235-A |
Normal steel |
1 |
Hot-water cylinder |
Q235-A |
Normal steel |
1 |
Electric control cabinet |
Equiped |
N/M |
1 |
Co-generation Power |
169kw(Jacket water)+106kw(Exhaust gas)=275kw |
|
|
Cooling Water (Hot-water supply) |
Inlet Temperature |
30°C |
Outlet Temperature |
70°C |
|
Flow |
5.6M3/hr |
|
Jacket Water |
Inlet Temperature |
82°C |
Outlet Temperature |
74°C |
|
Flow |
19.3M3/hr |
|
Exhaust Gas |
Inlet Temperature |
600°C |
Outlet Temperature |
200°C |
|
Flow |
956kg/hr |
|
Exhaust Gas Heat-Exchanger |
Model |
GL Π-8-6-400 |
Heat Exchanging Area |
32.1m2 |
|
Jacket Water Heat-Exchanger |
Model |
BR0.1-1.1-E |
Heat Exchanging Area |
9.5m2 |
|
Standard Scope of Supply:
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by Cummins with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
Certificate:
