Camda Biogas Generator 500kw for sale/Bio gas generator with CHP/Biomasss generator/Organic Waste treatment/Waste to energy power plant/Cogeneration generator with CE&ISO certificates
Specifications of 500kw natural gas generator/biogas generator/LPG power generator/Landfill gas generator:
Gas genset data | ||
Genset model |
KDGH500-G |
|
Prime power(kW/KVA) |
500/625 |
|
Continuous power (kW/KVA) |
500/625 |
|
Connection type |
3 Phases 4 Lines |
|
Power factor cosfi |
0.8 lagging |
|
Frequency (Hz) |
60 |
|
Rated speed (RPM) |
1800 |
|
Open type Overall Dimension (mm) |
4400/2010/2480 |
|
Soundproof type Dimension (mm) |
40'ft container |
|
Net weight without canopy(kg) |
6080 |
|
Gas Engine Data | ||
Model |
HGKT38 |
|
Brand |
CAMDA |
|
Type |
4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning |
|
Cylinders& Arrangement |
12V |
|
Bore X Stroke(mm) |
159X159 |
|
Displacement(L) |
37.8 |
|
Compression ratio |
11:1 |
|
Aspiration |
Intercooled and Turbocharged |
|
Cooling Method |
Radiator fan water cooling or Heat exchange |
|
Governor type(speed regulating type) |
Electronic governing |
|
Starting method |
Electric, 24 V motor |
|
The lowest gas consumption(m3/kw.h) |
0.3 for natural gas/0.6 for biogas |
|
Idling speed(r/min) |
700 |
|
Oil recommended |
SAE 15W-40 CF4 or above |
|
Oil consumption |
≤1.0g/kW.h |
|
|
Standard Scope of Supply:
Accessories list 1. Maintenance Operation manual 2. Quality certificate, Gen-sets ex-factory testing report | ||
Advantages For Natural Gas Generator Set (Import gas engine based)
Natural gas and biogas as fuel
CE,ISO international quality control certificate approval
Low operation cost
Low gas consumption
1.Adopt gas engine block,so the instructure is very strong. Also it is easy for customer to get maintenance spare parts.
2. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.
3. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.
4.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.
5. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.
6. Long designed overhaul term: 25000~30000 hours
7. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.
Our product list:
Genset Model |
Engine Model |
Alternator Model |
Controller |
Prime Power (kVA/kW) |
KDGH24-G |
HG4B |
LSA42.3VS3 |
DSE7320 |
30/24 |
KDGH30-G |
HG4B |
LSA43.2S4 |
DSE7320 |
37/30 |
KDGH50-G |
HG6B |
LSA44.3S2 |
DSE7320 |
62/50 |
KDGH80-G |
HG6TB |
LSA44.3S5 |
DSE7320 |
100/80 |
KDGH120-G |
HGN14 |
LSA44.3L10 |
DSE7320 |
150/120 |
KDGH160-G |
HGNT14 |
LSA46.2M5 |
DSE7320 |
200/160 |
KDGH200-G |
HGNT14 |
LSA46.2L6 |
DSE7320 |
250/200 |
KDGH250-G |
HGKT19 |
LSA46.2VL12 |
DSE7320 |
312/250 |
KDGH300-G |
HGKT19 |
LSA47.2VS2 |
DSE7320 |
375/300 |
KDGH400-G |
HGKT38 |
LSA47.2M7 |
DSE7320 |
500/400 |
KDGH500-G |
HGKT38 |
LSA49.1S4 |
DSE7320 |
625/500 |

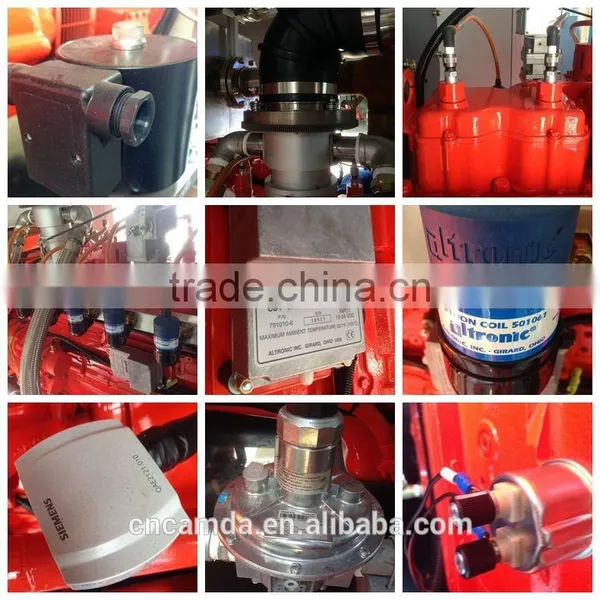

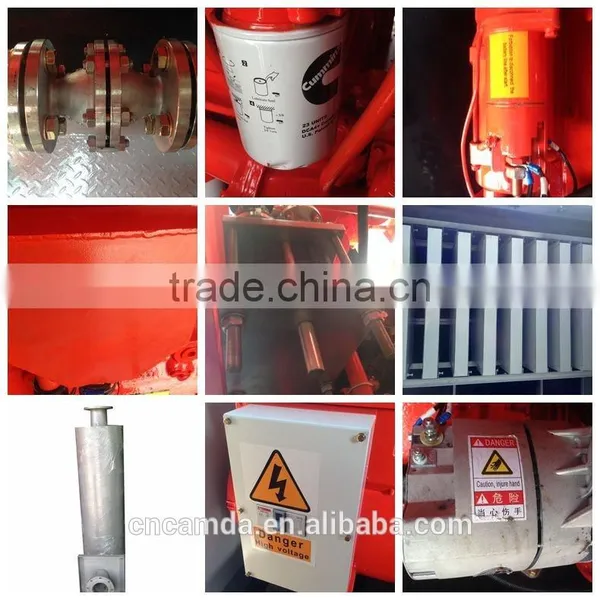

Specific photos:

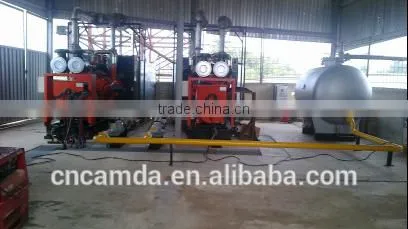

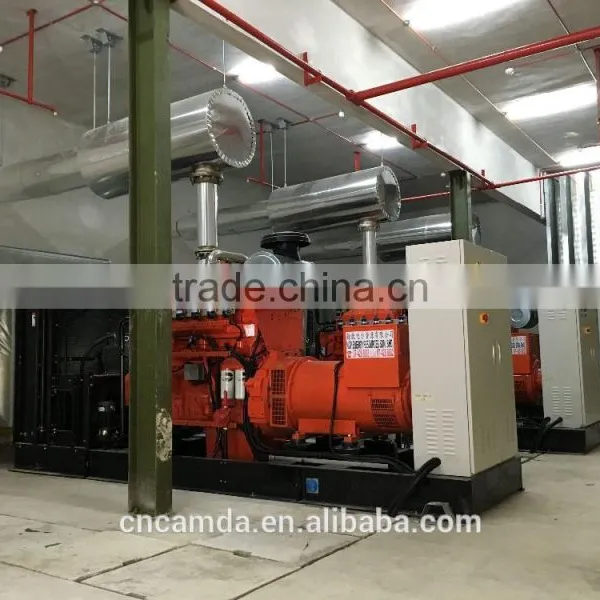

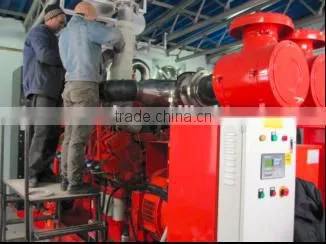

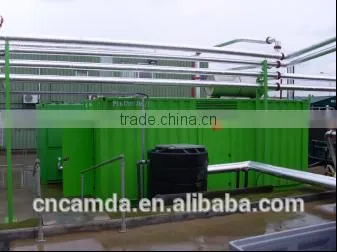

Some of our gas generators projects cases
a. 2x500kW gas generators in Nigeria, installed in October of 2012.
b. 2x500kW gas generators in Russia, installed in December of 2011.
c. 2x250kW gas generators in England, installed in May of 2011.
Genset lifetime and Warranty
LIFETIME
According to product design and end users' years experience, strictly following our operation manual and make
gen-set load under 85% of prime power, we guarantee the major overhaul terminal more than 15000 hours, and
lifetime is over 20 years.
AFTER SERVICE
12 months or 1500 running hours warranty covering all manufacturing defects (whichever comes first)since
leaving China port, our company provides free easily-damaged parts for the faults caused by the quality of products
or raw material, but exclude the damageable parts of engine due to customer's incorrect man-made operation. After expiration, our company provides spare parts with cost for maintenance forever.
