Product Details
Place of Origin: | Fujian, China | Brand Name: | CAIMORE | Model Number: | CM550-56G |
Product Description

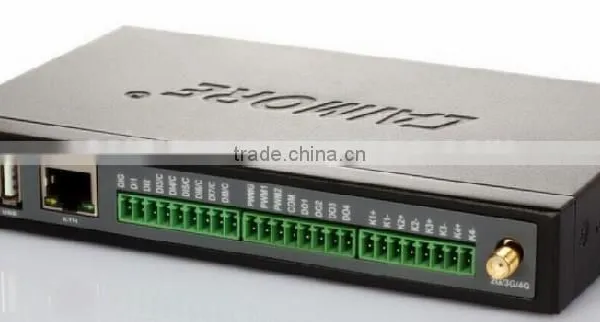

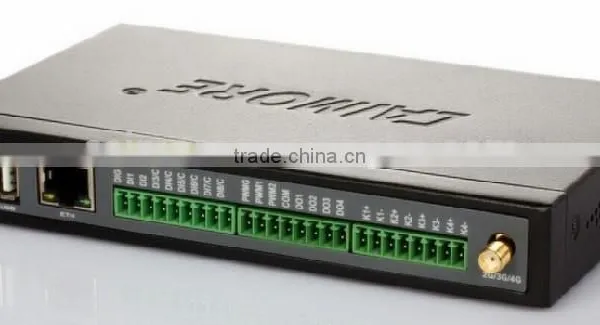

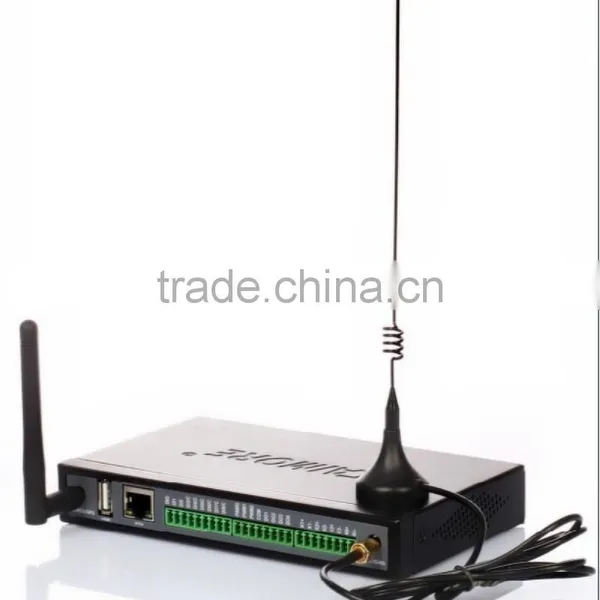

CM550-56F CAIMORE Communication--M2M Industrial Wireless Zigbee 3G WCDMA RTU Router
CM550-56F ZigBee+GPRS RTU IP MODEM is a kind of data terminal device that provides data transfer function by public GPRS and ZigBee network.
It adopts highpowered industrial 32 bits CPU and embedded real time operating system. It supports RS232, RS485 (or RS422) and ZigBee port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and ZigBee devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter andpulse wave output function.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Design for Industrial Application
1. High-powered industrial cellular module
2. High-powered industrial ZigBee module
3. High-powered industrial 32 bits CPU
4. Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
5. Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
6. Housing: iron, providing IP30 protection
7. Power range: DC 5~35V
8. Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
9. RS232/RS485/RS422 ports:15KV ESD protection
10. SIM/UIM port: 15KV ESD protection
11. Power port: reverse-voltage and overvoltage protection
12. Antenna port: lightning protection(optional)
Standard and Convenience
1. Adopt terminal block interface, convenient for industrial application
Stability and Reliability
1. Support hardware and software WDT
2. TTL logic level RS232 interface can be customized
3. Support intellectual mode, enter into communication state automatically when powered
4. Provide management software for remote management
5. Support several work modes
6. Convenient configuration and maintenance interface
High-performance
1. Support data transfer by cellular and ZigBee network
2. Support TCP server and support multi TCP client connection(optional)
4. Support double data centers, one main and another backup
5. Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
6. Support multi data centers and it can support 5 data centers at the same time
7. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
8. Support dynamic domain name(DDNS) and IP access to data center
9. Design with standard TCP/IP protocol stack
10. Support APN/VPDN
Cellular | GPRS/GSM |
Standards and Frequency Bands | Support EGSM900/GSM1800MHz dual band, GSM800/900/1800/1900MHz four band (optional). Support GSM phase 2/2+ Support GPRS multi-slot class 10. Class 12(optional) |
Coding Scheme | CS1~CS4 |
Communication Bandwidth | the theory of broadband :171.2Kb/s; the actual broadband :100Kbits>X>20Kbits/s |
Transmit Power | GSM850/900:<33dBm;GSM1800/1900:<30dBm |
Receiver Sensitivity | <-107dBm |
ZIGBEE Parameters: | |
Item | Content |
Wireless module | use industrial ZIGBEE wireless module |
Frequency Bands | 2405MHZ ~ 2480MHZ |
Main Chip | CC2530F256+CC2591 |
Addressing Mode | 64 bit IEEE address,8 bit IP address |
Channel Access | CSMA-CA and CSMA-CA of time slot |
Channel Number | 16 |
Hardware system: | |
Item | Content |
CPU | Industrial CPU,stable and reliable performance |
MMU | CPU with MMU memory management unit, can prevent memory overflow exception |
Flash | 64Mbits, a large enough memory to store programs and data |
SDRAM | 256Mbits, a large enough cache to improve system operation speed |
Operating System: | |
Item | Content |
Operating System | Using LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable; |
Interface Type: | |
Item | Content |
Serial port | 1 RS232 serial port (supports RS422/TTL) |
Data bits: 5,6,7,8 bit | |
Stop bits: 1, 1.5,2 bit | |
Parity: none, odd , even , space and mark | |
Baudrate: 110bps ~ 115200bps | |
Ethernet | 1xLAN(One 10/100 Base-T Ethernet ports), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection. |
USB | 1xUSB, USB2.0, HOST interface, speed at 12Mbps |
Indicator | “POWER”, “Link / ACT”,“COMM” and “ONLINE” |
Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers. |
UIM interface | 1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection |
Power Interface | Block interface,power supply over-voltage protection and reverse current protection. |
Analog input | Resolution:16 bit,input voltage(-10V-+10V),input current(0-20mA),sampling rate(1.365kSPS),Accuracy±0.5% or better |
Switch input | Input range(0-3.3V low level,5-30V high level)conatins all the way count function(1KHz) |
Relay output(dry contact) | Drive ability 5A/30VDC,5A/250VAC |
Optocoupler digital output | Open collector output,Max 30V,max current 40mA,Max power 125mW |
Optocoupler PWM output | Open collector output,Max 30V,max current 40mA,Max power 125mW,output frequency 0-1KHz,adjustable duty cycle |
Power supply: | |
Item | Content |
Supply voltage | Wide voltage design, DC 7V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection |
Standard power supply | DC9V/1.5A |
Current while Communicating | Average communication current :200mA @ +9 VDC; |
Communicating instantaneous peak current: 1.0A @ +9 VDC | |
Standby current | Standby average current:0.15A@+9VDC |
Physical features: | |
Item | Content |
Shell | Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments. |
Product Dimensions | 167*104*26mm(not including the antenna and the fixed parts) |
Packing Size | 350*215*88mm |
Weight | 0.52Kg |
Other parameters: | |
Item | Content |
Operating Temperature | -25ºC ~+75ºC |
Storage Temperature | -40~+85ºC |
Relative Humidity | 95%(No condensation) |
