CM550-53F M2m Zigbee Home Automation 4g Lte RTU With RS485 Port
US$ 200 - 220
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
CAIMORE
Model Number:
CM530-53F
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CM550-53G M2m Zigbee Home Automation 2g Gprs/gsm RTU With RS485 PortUS$ 200 - 220MOQ: 2 Sets -
CM550-53H M2m Zigbee Home Automation 3g Hspa+ RTU With RS485 PortUS$ 200 - 220MOQ: 2 Sets
-
Cm550-56w Wcdma Modbus Rtu Modem Zigbee With i /0 ModemUS$ 203 - 220MOQ: 2 Sets
-
CM550-51G RTU GPRS Wireless Remote Control Device Industrial 8 SUPPORT Voice Data Fax SmsUS$ 100 - 383.33MOQ: 1 Set
-
CM550-51W RTU GPRS Wireless Remote Control Device Industrial 8 SUPPORT Voice Data Fax SmsUS$ 133.33 - 383.33MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
CAIMORE
Model Number
CM530-53F
Product Description
| 1,Support APN/VPDN | |
| 2,Support double data center backup and multiple data center ( 8 data center) receiving data, the biggest number of sending center is up to 256 | |
| 3,Remote wakeup: support short message,voice,data etc wakeup method and overtime disconnect network | |
| 4,Support center server fixed IP, when center adopts dynamic IP, it can support DDNS dynamic domain communication mode. | |
| 5,Support 6 CH counter input,8 CH switch input,8 CH analog input,4 CH digital output,2 CH PMW output,4 CH relay output | |
| 6,Support 1 RS232/RS485 | |
| 7,Support 1 Ethernet port,and USB(optional) | |
| 8,Support extendable wireless RTU managment platform protocol | |
| 9,Support remote configure,remote control and remote upgrade | |
| 10,Support WEB configure | |
| 11,Support telnet | |
| 12,Support serial port software upgrade | |
| 13,Support GPS/Compass(optional) | |
| 14,Support Zigbee mesh network(optional) | |
| 15,Support LINUX, UNIX and WINDOWS operating systems |

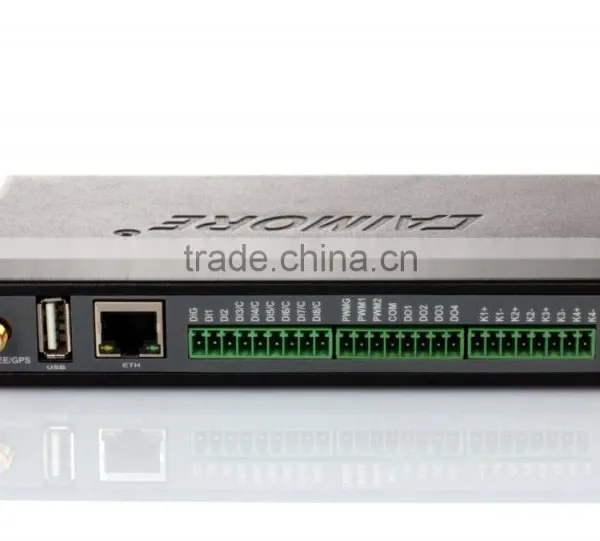

Product View
Specification Information:
| Model No. | CM550-53W(WCDMA) | ||||||||||||||||||||
| Cellular Parameters: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
|
|||||||||||||||||||||
| ZIGBEE Parameters: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| Wireless module | use industrial ZIGBEE wireless module | ||||||||||||||||||||
| Frequency Bands | 2405MHZ ~ 2480MHZ | ||||||||||||||||||||
| Main Chip | CC2530F256+CC2591 | ||||||||||||||||||||
| Addressing Mode | 64 bit IEEE address,8 bit IP address | ||||||||||||||||||||
| Channel Access | CSMA-CA and CSMA-CA of time slot | ||||||||||||||||||||
| Channel Number | 16 | ||||||||||||||||||||
| Hardware system: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| CPU | Industrial CPU,stable and reliable performance | ||||||||||||||||||||
| MMU | CPU with MMU memory management unit, can prevent memory overflow exception | ||||||||||||||||||||
| Flash | 64Mbits, a large enough memory to store programs and data | ||||||||||||||||||||
| SDRAM | 256Mbits, a large enough cache to improve system operation speed | ||||||||||||||||||||
| Operating System: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| Operating System | Using LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable; | ||||||||||||||||||||
| Interface Type: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| Serial port | 1 RS232 serial port (supports RS422/TTL) | ||||||||||||||||||||
| Data bits: 5,6,7,8 bit | |||||||||||||||||||||
| Stop bits: 1, 1.5,2 bit | |||||||||||||||||||||
| Parity: none, odd , even , space and mark | |||||||||||||||||||||
| Baudrate: 110bps ~ 115200bps | |||||||||||||||||||||
| Indicator | “POWER”, “Link / ACT”,“COMM” and “ONLINE” | ||||||||||||||||||||
| Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers. | ||||||||||||||||||||
| UIM interface | 1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection | ||||||||||||||||||||
| Power Interface | Block interface,power supply over-voltage protection and reverse current protection. | ||||||||||||||||||||
| Analog input | Resolution:16 bit,input voltage(-10V-+10V),input current(0-20mA),sampling rate(1.365kSPS),Accuracy±0.5% or better | ||||||||||||||||||||
| Switch input | Input range(0-3.3V low level,5-30V high level)conatins all the way count function(1KHz) | ||||||||||||||||||||
| Relay output(dry contact) | Drive ability 5A/30VDC,5A/250VAC | ||||||||||||||||||||
| Optocoupler digital output | Open collector output,Max 30V,max current 40mA,Max power 125mW | ||||||||||||||||||||
| Optocoupler PWM output | Open collector output,Max 30V,max current 40mA,Max power 125mW,output frequency 0-1KHz,adjustable duty cycle | ||||||||||||||||||||
| Power supply: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| Supply voltage | Wide voltage design, DC 7V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection | ||||||||||||||||||||
| Standard power supply | DC9V/1.5A | ||||||||||||||||||||
| Current while Communicating | Average communication current :200mA @ +9 VDC; | ||||||||||||||||||||
| Communicating instantaneous peak current: 1.0A @ +9 VDC | |||||||||||||||||||||
| Standby current | Standby average current:0.15A@+9VDC | ||||||||||||||||||||
| Physical features: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| Shell | Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments. | ||||||||||||||||||||
| Product Dimensions | 167*104*26mm(not including the antenna and the fixed parts) | ||||||||||||||||||||
| Packing Size | 350*215*88mm | ||||||||||||||||||||
| Weight | 0.52Kg | ||||||||||||||||||||
| Other parameters: | |||||||||||||||||||||
| Item | Content | ||||||||||||||||||||
| Operating Temperature | -25ºC ~+75ºC | ||||||||||||||||||||
| Storage Temperature | -40~+85ºC | ||||||||||||||||||||
| Relative Humidity | 95%(No condensation) | ||||||||||||||||||||
Widely Application
Why US:
1. 13 years industry R & D accumulation and application of telecommunication supplier.
2. 80 R&D engineers, 150 staffs.
3. 2015 was award " China's TOP 10 Security Brands"
4. 2015 Caimore bus WIFI coverage project eligible Oscars Awards in M2M industry.
5. 2011 was awarded “ Best Supplier of Customer Satisfaction in China’s industrial Control Sector”
6. 16000 customers choice
7. 300000 markets tested
8. GPRS/CDMA/3G/4G network equipment provided.
9. Patent technology, stable and security
