I. Introduction
1. based on Zigbee2007PRO standard with the advantages of small volume, lower power
consumption,
networking flexibly, good stability and easy to use etc.
2. suit for embedded instruments and other equipment, achieve device ZIGBEE wireless
communication.
3. operating frequency is 2.4G, the module has digital IO interface and is used widely.
The module exempt from the problem that customers develop radio frequency;
4. Support TI-MAC,SimpliciTI,Z-Stack,RemoTI etc software to enable customers to develop the product which accord with IEEE 802.15.4,
ZigBee 2007,ZigBee Pro and ZigBee RF4CE etc standard or other standards.
5. The module is embedded with wireless network communication software which is based
on Zigbee2007PRO protocol, this can help customers achieve point-to-point and point-to-multiple points wireless network communication.

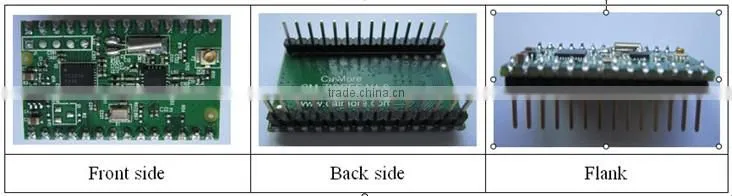

Actual module diagram
II product feature
Industrial Design
Ø Industrial wireless module.
Ø Strengthened circuit board.
Ø Industrial components.
Ø Convenient and rapid development environment.
Stable and reliable
Easy to use
III. Technical parameter
Wireless parameter
Item |
content |
Wireless module |
use industrial ZIGBEE wireless module |
RF frequency channel |
2405MHz~2480MHz |
communication protocol |
IEEE 802.15.4 Zigbee2007pro |
network structure |
point-to-point, point-to-multiple points, mesh |
modulation mode |
DSSS(O-QPSK) |
transmission rate |
250Kbps |
communication range |
the maximum is 2000m |
addressing mode |
64 bits IEEE address,8 bits network address |
data encryption |
128bit AES |
Error Checking |
CRC16/32 |
Channel access mode |
CSMA-CA and Time buttress CSMA-CA |
Number of channel |
16 |
transmitted power |
<20dBm |
Receiving sensitivity |
<-98.8dBm |
Other parameters:
Item |
Content |
Operating Temperature |
-40 ºC ~+80ºC |
Extended operating temperature |
-40 ºC~+85ºC |
Storage Temperature |
-40~+85ºC |
Physical size |
23mm * 37mm*5mm |
Applications

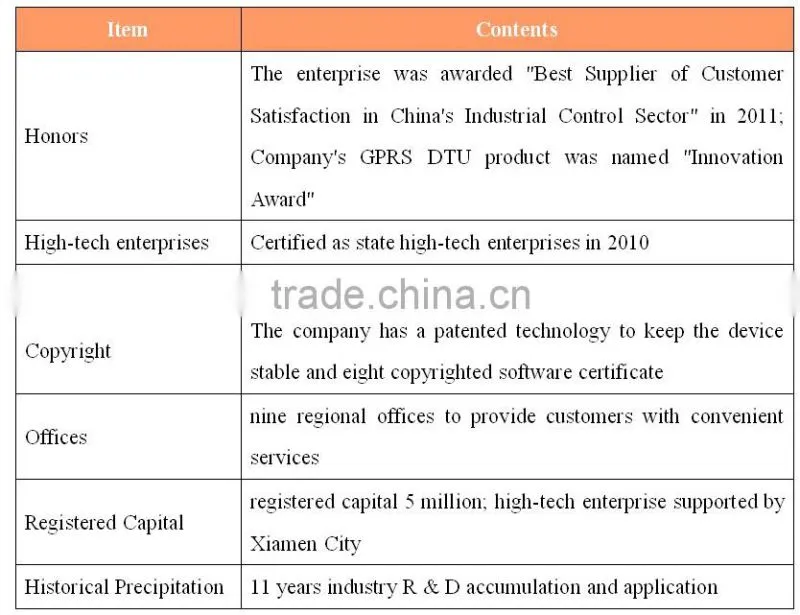

Certification and Honor
