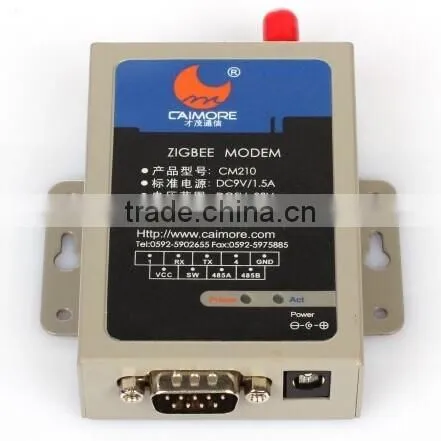

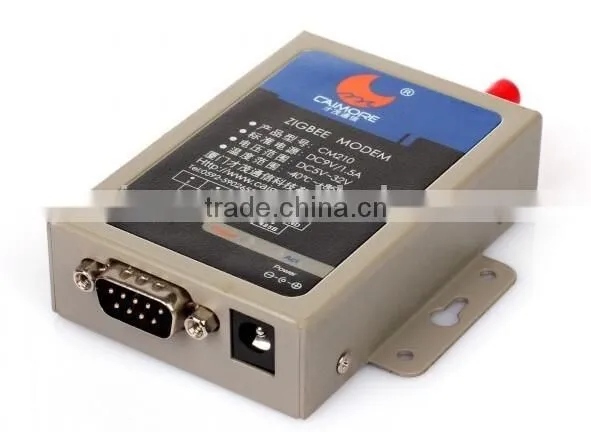

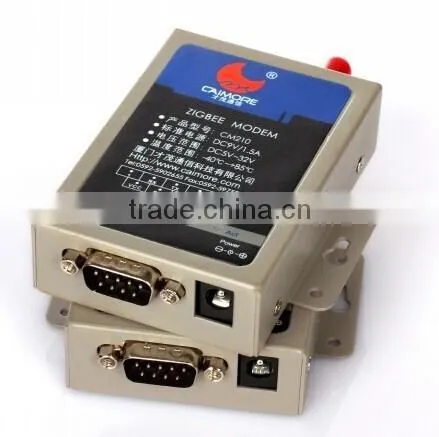

Caimore Stable Industrial Zigbee Modem TI With AT Command
US$ 45 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Caimore
Model Number:
CM210
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CC2530 2.4G Industrial Embedded ZIGBEE Module for Smart HomeUS$ 10 - 50MOQ: 1 Piece -
CC2530 Industrial Zigbee Wireless Temperature Monitoring With RS232 RS485US$ 20 - 80MOQ: 1 Piece
-
CC2530 Industrial Digi Zigbee With RS232 RS485US$ 20 - 80MOQ: 1 Piece
-
CC2530 Industrial Zigbee Remote Sensor With RS232 RS485US$ 20 - 80MOQ: 1 Piece
-
CC2530 Industrial Zigbee rf Sensor With RS232 RS485US$ 20 - 80MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
Caimore
Model Number
CM210
Caimore Stable Industrial Zigbee Modem with AT Command
Introduction
| 1,using industrial wireless module, the interference is strong, and transmission is stable . | |
| 2,Ø Real-time operating system | |
| 3, PCB followed the principles of 20H and 3W, meanwhile circuit boards of all products use high-quality materials to ensure the plate material stable and reliable. | |
| 4,machine components use strictly screened industrial-grade components. | |
| 5, Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection. | |
| 6,serial port RS232, built-in 15KV ESD protection. | |
| 7,metal case, anti-radiation, anti-interference; shell and system security isolation, thunder protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments. | |
| 8,Using 802.15.4,Zigbee2007pro wireless protocol. | |
| 9. Ø Support AT command | |
| 10.passed 3000V electrical shock test, especially suit for being used in harsh industrial environments; system EMC / EMI performance is very excellent, system is stable and reliable; passed EMC test; we were awarded "The Best Supplier of China's Industrial Control Industry" in 2010. | |
| 11. Provides serial debugging software, network speed test software, provide different levels of debugging output to facilitate customers to view a variety of information and locate the problem quickly. | |
| 12. improved graphical configuration tool that provides rapid deployment capabilities for customers to achieve rapid deployment; provides bulk configuration. |
Product Interface diagram:
Product accessories diagram
Technical parameter
| Wireless Parameters | |
| Item | Content |
| Wireless module | use industrial ZIGBEE wireless module |
| RF frequency channel | 2405MHz~2480MHz |
| communication protocol | IEEE 802.15.4 Zigbee2007pro |
| network structure | point-to-point, point-to-multiple points, mesh |
| modulation mode | DSSS(O-QPSK) |
| transmission rate | 250Kbps |
| communication range | the maximum is 2000m |
| addressing mode | 64 bits IEEE address,8 bits network address |
| data encryption | 128bit AES |
| Error Checking | CRC16/32 |
| Channel access mode | CSMA-CA and Time buttress CSMA-CA |
| Number of channel | 16 |
| transmitted power | <20dBm |
| Receiving sensitivity | <-98.8dBm |
| Interface Type: | |
| Item | Content |
| Serial port | 1 RS232 serial port |
| Data bit: 7 or 8 bit | |
| Stop bits: 1 or 2 bit | |
| Parity: no parity, odd parity, even parity | |
| Serial speed: 600bps ~ 11520bps | |
| Flow Control: None flow control, hardware flow control | |
| RS485 | Support double line RS485 communication interface |
| Indicator | With power, communication indicator |
| Antenna Interface | Standard SMA female interface, 50 ohm; we also can provide 3M/5M/10M/15M antenna extension cable to meet different customers' different requirement. |
| Power Interface | Standard 3-pin power jack |
| Power supply: | |
| Item | Content |
| Supply voltage | Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection |
| Standard power supply | DC9V/500mA |
| Current while Communicating | Average communication current : 30mA @ +9 VDC; |
| instantaneous peak current: 50mA @9 V | |
| Physical features: | |
| Item | Content |
| Shell | Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, thunder protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments. |
| Product dimensions | 81x55x20 mm(not include the antenna and the fixed parts) |
| Packing Size | 298x226x60mm |
| Weight | 0.41kg |
| Other parameters: | |
| Item | Content |
| Operating Temperature | -40 ºC ~+80ºC |
| Extended operating temperature | -40 ºC~+85ºC |
| Storage Temperature | -40~+85ºC |
| Physical size | 23mm * 37mm*5mm |
Zigbee Typical networking mode( mesh)
The Typical Application
Certification and Honor
