Specifications
zigbee modem1.2000m communication range
2.power consumption 30-35mW
3. networking flexibly
4. good stability
Industrial CC2530 2.4G zigbee modem with high quality
I. Introduction
This ZIGBEE MODEM is designed according to harsh environment, it have the advantages:
Strong antijamming ability, lower power consumption, networking flexibly, good stability
and easy to use etc.

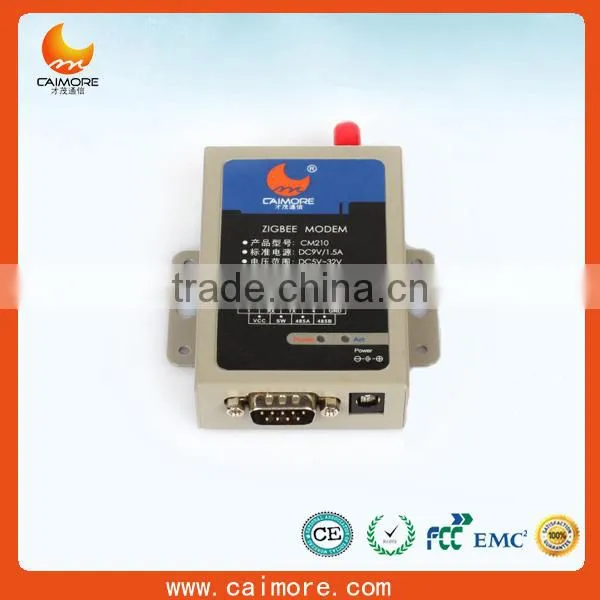

Product Interface diagram:

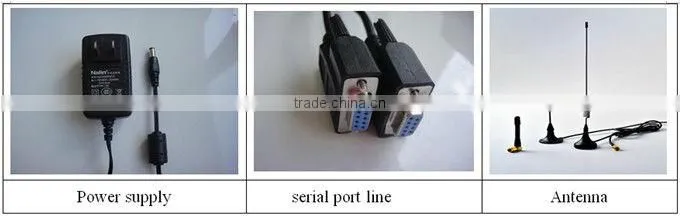

Product accessories diagram
II product feature
Industrial Design
Ø Industrial wireless module
Ø Real-time operating system
Ø Strengthened circuit board
Ø Industrial components
Ø Industrial power supply: DC 5V-DC32V
Ø Serial ports ESD protection: serial port RS232, built-in 15KV ESD protection.
Ø Metal shell
Stable and reliable
Ø Complete protocol stack
Ø Can select multiple operating mode, easy to use, flexible
Ø System configuration of AT command and maintain interface
Ø EMC performance outstanding
Easy to use
III. Technical parameter
Interface Type:
Item |
Content |
Serial ports |
1 RS232 serial port Data bit: 7 or 8 bit Stop bits: 1 or 2 bit Parity: no parity, odd parity, even parity Serial speed: 600bps ~ 11520bps Flow Control: None flow control, hardware flow control |
RS485 |
Support double line RS485 communication interface |
Indicator |
With power, communication indicator |
Antenna Interface |
Standard SMA female interface, 50 ohm; we also can provide 3M/5M/10M/15M antenna extension cable to meet different customers' different requirement. |
Power Interface |
Standard 3-pin power socket |
Power supply:
Item |
Content |
Supply voltage |
Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection |
Standard power supply |
DC9V/500mA |
Current while Communicating |
Average communication current : 30mA@9V instantaneous peak current: 50mA@9V |
Physical features:
Item |
Content |
|
Shell
|
Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, thunder protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suit for harsh industrial control environments. |
Product dimensions |
81x55x20 mm(not include the antenna and the fixed parts) |
Packing Size |
298x226x60mm |
Weight |
0.41kg |
Wireless parameter
Item |
content |
Wireless module |
use industrial ZIGBEE wireless module |
RF frequency channel |
2405MHz~2480MHz |
communication protocol |
IEEE 802.15.4 Zigbee2007pro |
network structure |
point-to-point, point-to-multiple points, mesh |
modulation mode |
DSSS(O-QPSK) |
transmission rate |
250Kbps |
communication range |
the maximum is 2000m |
addressing mode |
64 bits IEEE address,8 bits network address |
data encryption |
128bit AES |
Error Checking |
CRC16/32 |
Channel access mode |
CSMA-CA and Time buttress CSMA-CA |
Number of channel |
16 |
transmitted power |
<20dBm |
Receiving sensitivity |
<-98.8dBm |
Other parameters:
Item |
Content |
Operating Temperature |
-40 ºC ~+80ºC |
Extended operating temperature |
-40 ºC~+85ºC |
Storage Temperature |
-40~+85ºC |
Physical size |
23mm * 37mm*5mm |

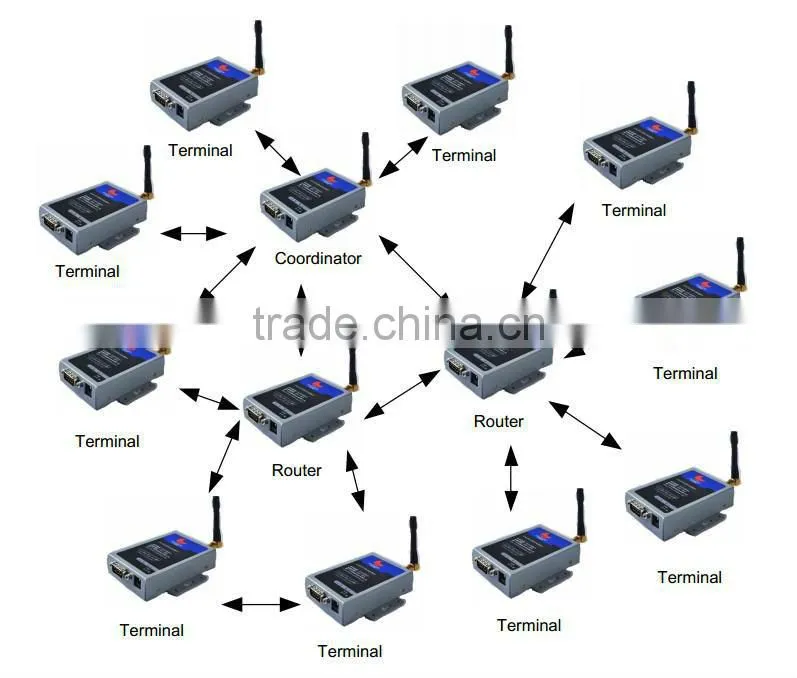

IV. Zigbee Typical networking mode( mesh)
V. The Typical Application
