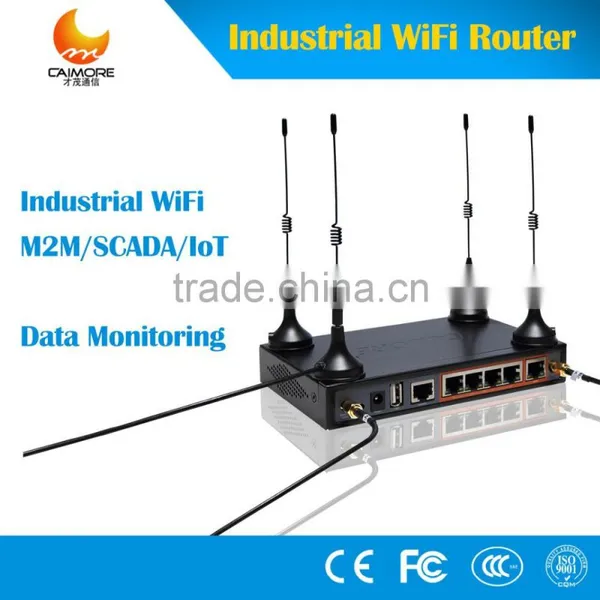

WCDMA wireless WiFi industrial VPN Router with four lan port
WIFI Wireless parameters
Item |
Content |
|
WIFI module
|
WIFI module chip-embedded, high integration, good stability |
WIFI standard |
Support 802.11 a/b/g/n standard, speed, support 6M/9M/12M/18M/24M/36/48/54Mbps,up to 108M |
|
Encryption
|
Supports WAP encryption, built-in WAP and WAP 2.0, Built-in 64-bit and 128-bit WEP encryption, Support WEP encryption, built-in 802.11I 4.0 WEP (128-bit and 64-bit) TKIP, AES and CCMP and other hardware security engine |
|
AP mode |
Support AP mode
|
Transmission distance |
Outdoor non-stop, outdoor coverage up to 150 meters |
TD-SCDMA Wireless Parameters
Item |
Content |
Wireless module |
use industrial wireless module |
Standards and frequency bands |
TD-SCDMA/HSDPA/HSUPA:2010~2025MHz GSM/GPRS/EDGE:850/900/1800/1900MHz Support 3GPPclass B |
Coding scheme |
TD-SCDMA/HSDPA/HSUPA/EDGE/GPRS mode |
Communication bandwidth |
Downlink (Max up to 2.8Mbps) Uplink (Max up to 384Kbps) |
Transmit power |
<24dBm |
Receiver sensitivity |
<-108dBm |
Function support |
Support data, voice, SMS and fax |
Interface Type:
Item |
Content |
WAN port |
one WAN port (Line0), supports PPPOE |
Ethernet port |
Four 10/100 Base-T Ethernet port(LAN1-LAN4), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection |
Serial port |
1 RS485 interface 1 or RS232 serial port (support RS422/TTL) Data bit: 7,8 bit Stop bits: 1, 2-bit Parity: no parity, odd parity, even parity, SPACE and MARK parity Serial speed: 110bps ~ 230400bps Flow Control: None flow control, RTS / CTS hardware flow control or XON / XOFF software flow control |
USB interface |
one USB interface, USB2.0, HOST interface, speed at 12Mbps |
Indicator LED |
“POWER” , wide area network “WAN”, communication “COMM”, “WIFI”, Ethernet port and online “LINK / ACT” indicator |
Antenna Interface |
Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers |
|
UIM interface |
1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection |
Voice Interface |
Standard headset interface (requires software) |
Power Interface |
Standard 3-pin power jack |
RESET button |
Reset button to restore factory settings |

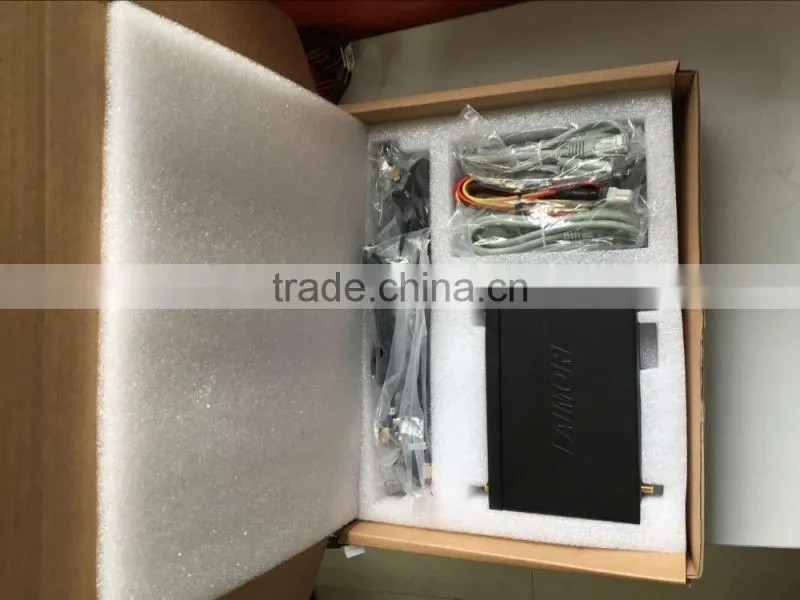

Samples will ship withine one -three working days .
Shipping way can be customized : DHL,TNT,UPS,FeDex etc.
Caimore mainly dearly in MDVR , MNVR , Industrial router with and without wifi , Bus wifi router with VOD function , DTU ,RTU ,sms modem and so on for 12 ears .

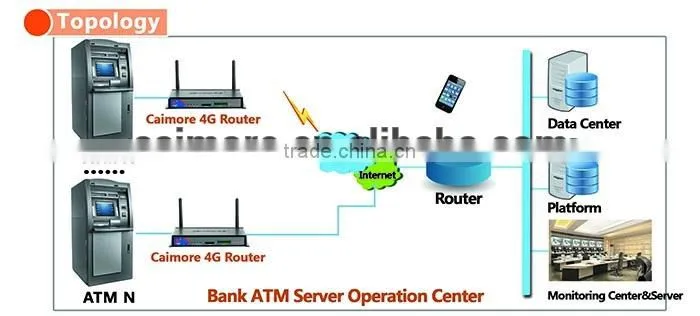

We slove problems in Vending machines , charging-plie, ATM , Kiosk ,CCTV ,elevator and so on .
Hope to receive from you .
Call at +86-15080025764 .
skype : caimoremichelle
Viber/whatsapp/Mob:+86 15080025764
