4XLAN 3G TDSCDMA Commercial Router
- 2000 Set / Sets per Month
- Xiamen
- T/T Credit Card
- Cisco Fiber Switches N9K-C93180YC-FX
- SIERRA AR7586
- Quectel LC29D GPS Beidou Inertial Guidance Module
- telit 4G module LE910C4-NF
- Acrel 4G LORA communication AWT200-1E4S1-4G/LR Intelligent data communication gateway, supports 4-way serial port
- Acrel Wireless communication terminal Supports centralized collection of up to 10,000 points AWT200-1E8SL
Product Details
Place of Origin: | Fujian, China | Brand Name: | Caimore | Model Number: | CM520-82S |
Product Description
Specifications
Commercial Router1. Supporting VPN including PPTP, MPPE, L2TP, GRE and IPSEC
2. CE certification
3. 4 x LAN WCDMA router
Commercial Router
I. Introduction

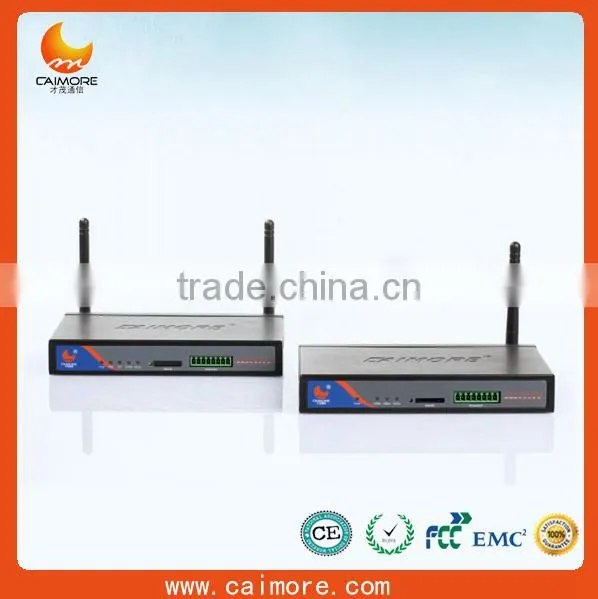

Caimore Commercial Router (Type: CM520-82S ), is a wireless router by using
TDSCDMA networks, with industrial design and 4 RJ45 Ethernet port .
Product Interface diagram:
Accessories Photos:
II product characteristics
Industrial Design Stable and reliable
1.Online maintenance patents.
2.Three-tier system protection.
3.UIM / SIM card ESD protection.
4.Serial ports ESD protection.
5.Metal shell.
6.All wireless modules are certified by the CGD or FCC certification or CE certification.
7.High-speed processing CPU.
8.Large memory.
9.Complete protocol stack.
10.EMC performance outstanding.
III. Powerful Function
1.Supports Ethernet data communication and packet forwarding, also supports serial port TCP / UDP
transparent data transmission or serial configuration
2.Support VPN tunnel, including PPTP, MPPE, L2TP, GRE and IPSEC
3.Intelligent anti-dropped, support online testing, online maintenance, automatic redial, router is always on-line
4.Support IPTABLES firewall, packet filtering
5.support Regular on-line offline functionality, can set the device on-line and offline in a certain period of time
6.Support a variety of trigger and offline modes, including text messages, phone ringing, serial port data,
network data trigger and offline mode
7.Support dynamic routing and static routing, RIPv1, RIPv2, OSPF, BGP, NDSP, IRMP, SNSP, IGMP,
DVMRP, PIM-SM/DM
8.Support multiple protocols: TCP / IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, etc.
9.Support DHCP / DHCPD functionality
10.Supports NAT port mapping function, such as SNAT, DNAT
11.Support DDNS(Dynamic Domain Name Server): support ORAY, 88IP, and DYNDNS domain name
service provider
12.Support DMZ
13.Support the APN / VPDN network
14.Convenient WEB configuration, Remote WEB Management
15.Support WEB configuration save and restore to achieve the rapid deployment parameters backup and
batch of equipment
16.Support telnet management, user-friendly console shell interactive environment
17.Support multiple terminals sharing router ppp wan
18.Support multiple wireless dial-up mode: automatically assigned, specify the IP, specify local and remote IP
19.Support as a PPP server, multiple authentication methods, support mutual authentication
20.Easy to use COM and SYSLOG System diagnostics, debugging
21.Support Serial port local software upgrades
22.Supports TFTP remote software upgrade
23.Support real-time clock
24.Support both LINUX and WINDOWS operating systems
Easy to use.
Wireless parameters:
Item | Content |
Wireless module | use industrial wireless module |
Standards and frequency bands | TD-SCDMA/HSDPA/HSUPA:2010~2025MHz |
GSM/GPRS/EDGE:850/900/1800/1900MHz | |
Support 3GPPclass B | |
Coding scheme | TD-SCDMA/HSDPA/HSUPA/EDGE/GPRS mode |
Communication bandwidth | Downlink (Max up to 2.8Mbps) Uplink (Max up to 384Kbps) |
Transmit power | <24dBm |
Receiver sensitivity | <-108dBm |
Function support | Support data, voice, SMS and fax |
Interface type
Applications
Certifications & Honors
