4XLAN 4G LTE FDD VPN Router
- Xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Caimore | |
| Model Number | CM520-82F |
Product Description

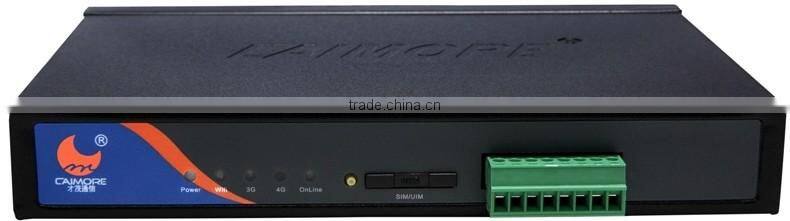

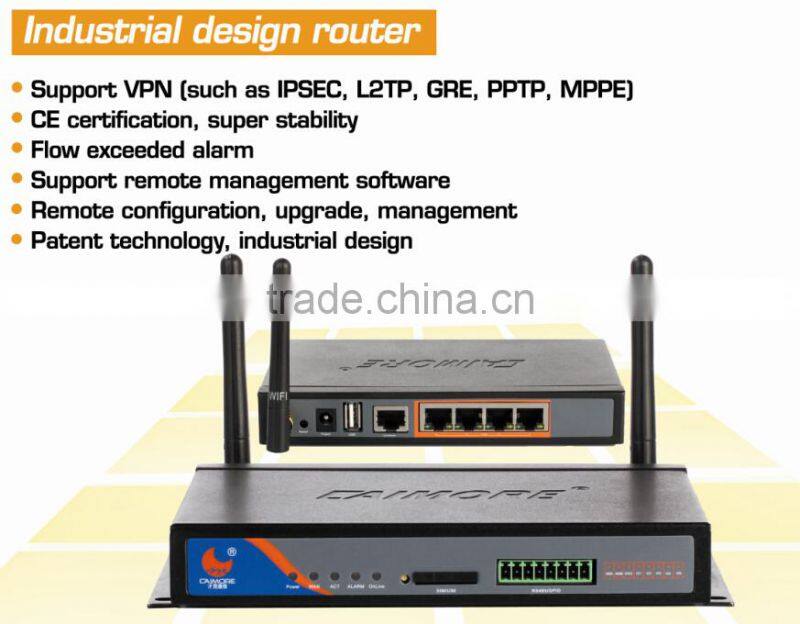

CM520-82F 4XLAN 4G LTE FDD VPN Router

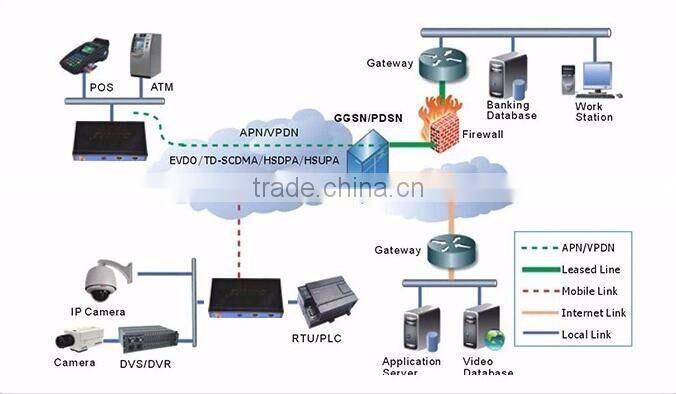

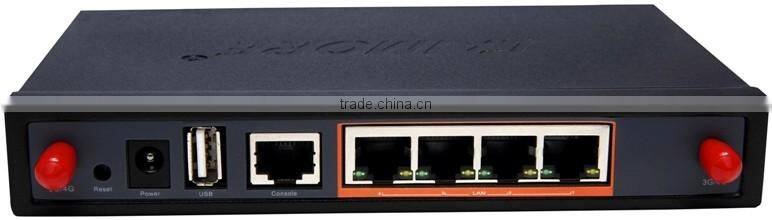

Caimore CM520-82F wireless router is an 4G LTE industrial router with 1 WAN port and 4 Ethernet RJ45 ports (4xLAN), which supports APN / VPDN, power-on auto-dialing, automatic maintenance of communication links.

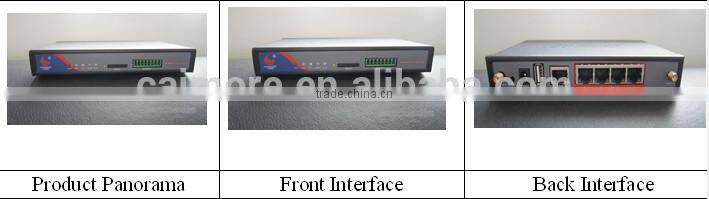

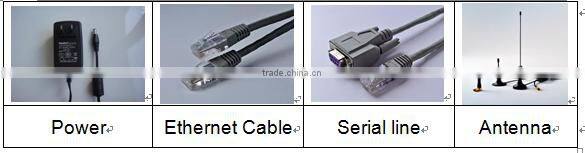

Product Accessory Picture
| Cellular Parameters | |
| Item | Content |
| Cellular | WCDMA/EDGE/GPRS/GSM |
| Standards and frequency bands (WCDMA) | Support WCDMA 850/900/1900/2100MHz |
| Dual Band EGSM 850/900/1800/1900MHz | |
Support GPRS / EDGE CLASS 12 | |
| Communication bandwidth(WCDMA) | |
| WCDMA CS:UL 64kbps/DL 64kbps | |
| WCDMA PS:UL384kbps/DL384kbps | |
| Transmit power | |
| Receiver sensitivity | |
| Function support |
| Interface Type: | |
| Item | Content |
| Ethernet port | 4xLAN(Four 10/100 Base-T Ethernet ports), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection. |
| Serial port | 1 RS232 serial port or 1 RS485 interface (supports RS422/TTL) |
| Bytesize: 7,8 bit | |
| Stopbits: 1, 2-bit | |
| Parity: no parity, odd parity, even parity, SPACE and MARK parity | |
| Baudrate: 110bps ~ 115200bps | |
Flow Control: None flow control, RTS / CTS hardware flow control or XON / XOFF software flow control. | |
| GPIO | "RX","TX","GND","RS485A","RS485B","GND","IO1","IO2"(IO reversed) |
| Indicator | "Power","3G","4G","Online" |
| Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers. |
| UIM interface | 1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection |
| Power Interface | Standard 3-pin power jack |
| Hardware system | |
| Item | Content |
| CPU | Industrial high-performance embedded ARM9 processing; 200MPS; with 16KB Dcache, high-speed cache data speed up high-speed data access with 16KB Icache, high-speed instruction cache enhanced instruction processing speed. |
| MMU | CPU with MMU memory management unit, can prevent memory overflow exception. |
| Flash | 64Mbits (expandable to 256Mbits) have enough memory to store programs and data. |
| SDRAM | 256Mbits (expandable to 2048Mbits), a large enough cache to improve system operation speed. |
| Operating System | |
| Item | Content |
| Operating System | Using real-time operating system with memory management unit, real-time, fast, stable. |
| Power supply: | |
| Item | Content |
| Supply voltage | Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection. |
| Standard power supply | DC9V/1.5A |
| Current while Communicating | Average communication current : 390mA @ +9 VDC; |
| instantaneous peak current: 1.0A @ +9 VDC | |
| Standby current | average current: <56mA @ +9 VDC |
| Physical features: | |
| Item | Content |
| Housing | Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suitable for harsh industrial control environments. |
| Product dimensions | 195 * 121 * 30mm |
| Packing Size | 298x226x60mm |
| Weight | 0.7kg |
| Other parameters: | |
| Item | Content |
| Operating Temperature | -25ºC ~+65ºC |
| Extended operating temperature | -35 ºC~+75ºC |
| Storage Temperature | -40~+85ºC |
| Relative Humidity | 95%(No condensation) |

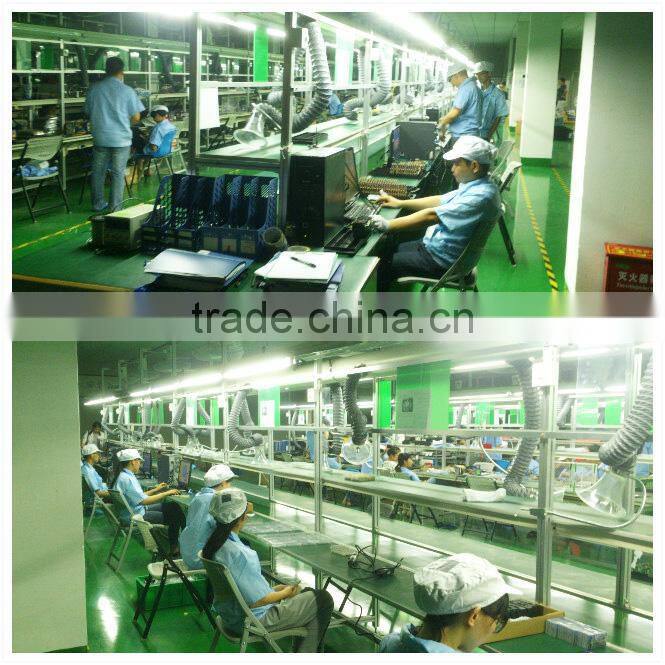

Production Line
