4G LTE-FDD Bus WIFI Router With GPS

4G LTE-FDD Bus WIFI Router With GPS thumbnail-1
4G LTE-FDD Bus WIFI Router With GPS thumbnail-2

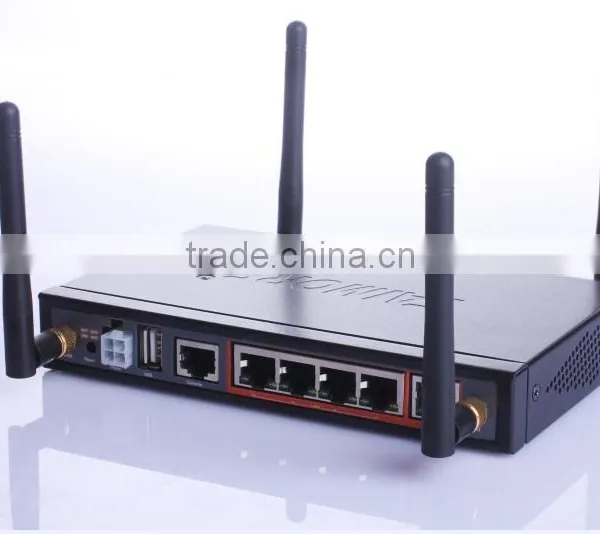

4G LTE-FDD Bus WIFI Router With GPS photo-1

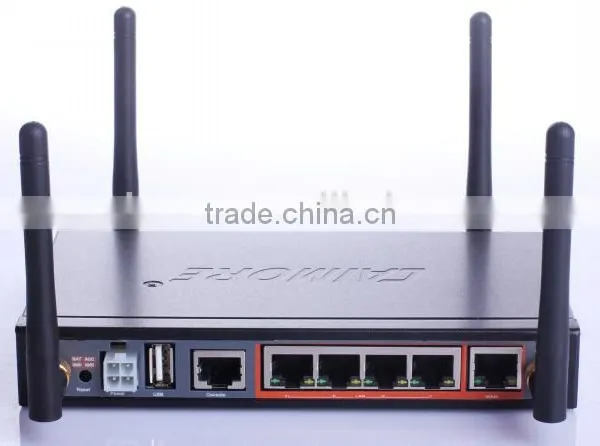

4G LTE-FDD Bus WIFI Router With GPS photo-2
US$ 1 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Caimore
Model Number:
CM520-8AF
Contact Supplier Request Quote Chat Now
Xiamen Caimore Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Caimore
Model Number CM520-8AF
Model No. CM520-8AF(LTE-FDD)
Cellular Parameters
Item Content
Cellular LTE-FDD/HSPA+/UMTS/HSDPA/HSUPA/WCDMA/EDGE/GSM
Standards and frequency bands     (FDD) LTE FDD: 2600/2100/1800/DD800MHz
UMTS: 2100/900MHz
RxDiv Band: UMTS 2100/900MHz LTE FDD 2600/2100/1800/DD800MHz
Communication bandwidth(FDD) LTE FDD:DL 100Mbps/UL 50Mbps
DC_HSPA+:DL 42Mb/s
HSPA+:DL 28Mb/s
HSDPA: DL 14.4Mb/s
HSUPA+:DL 5.76Mb/s
WCDMA CS:UL 64kbps/DL 64kbps
WCDMA PS:UL384kbps/DL384kbps
Transmit power WCDMA/HSDPA:24dBm LET:23 dBm
Receiver sensitivity <-109dBm
Function support Support data, voice, SMS and fax
WIFI Parameters
Item Content
WIFI module WIFI module chip-embedded, high integration, good stability
WIFI standard Support 802.11 a/b/g/n standard, speed,
Support 6M/9M/12M/18M/24M/36/48/54Mbps,up to 108M
Encryption Supports WAP encryption, built-in WAP and WAP 2.0, Built-in 64-bit and 128-bit WEP encryption, Support WEP encryption, built-in 802.11I 4.0 WEP (128-bit and 64-bit) TKIP, AES and CCMP and other hardware security engine
AP mode Support AP mode
Transmission distance Outdoor non-stop, outdoor coverage up to 150 meters
GPS Parameters
ITEM CONTENT
GPS Module Use industrial GPS wireless module
Receiver type Receive GPS,48 channels, Frequency L1 ,chip speed 1575.42MHZ,C/A code,chip speed 1.023MHZ.
Positioning accuracy Positioning:2.5m CEP   SBAS:2.0m CEP
Speed accuracy Speed accuracy < 0.01m/s(high speed)<0.01° (heading),( 50 % @ 30 m/s )
Capture time Cold start: 35S,Auxiliar start <3S;Hot start:1S
Output informaiton NMEA,UBX BIN:GGA GSA GSV RMC VTG GLL
navigation data update rate 1Hz
sensitivity Track:-163dBm;Navigation:-160dBm;Acquisition:-147dBm
Operating limit Speed:500m/s Height:50000m
Hardware system
Item Content
CPU Industrial high-performance embedded processing MIPS CPU, dominant frequency 320Mhz
MMU CPU with MMU memory management unit, can prevent memory overflow exception
Flash 64Mbits (expandable to 256Mbits) have enough memory to store programs and data
SDRAM 256Mbits (expandable to 2048Mbits), a large enough cache to improve system operation speed
Operating System
Item Content
Operating System Using LINUX2.6 operating system with memory management unit and real-time feature, upgrades is very fast and system is stable;
Interface Type:
Item Content
WAN port one WAN port (Line0), supports PPPOE
Ethernet port Four 10/100 Base-T Ethernet port(LAN1-LAN4), Ethernet IEEE 802-3, 802-2; built-in 1.5KV magnetic isolation protection
Serial port 1 RS485 interface 1 or RS232 serial port (support RS422/TTL)
Data bit: 7,8 bit
Stop bits: 1, 2-bit
Parity: no parity, odd parity, even parity, SPACE and MARK parity
Serial speed: 110bps ~ 115200bps
Flow Control: None flow control, RTS / CTS hardware flow control or XON / XOFF software flow control
TF card 2 TF card
USB interface one USB interface, USB2.0, HOST interface, speed at 12Mbps
Indicator LED “POWER” , “WIFI”, "3G","4G","ONLINE"
Antenna Interface Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers
UIM interface 1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection
Power Interface Standard 4-pin vehicle power jack
RESET button Reset button to restore factory settings
Power supply:
Item Content
Supply voltage Wide voltage design, DC 5V to the DC32V power supply directly to the device; and built-in power supply over-voltage protection and reverse current protection
Standard power supply DC9V/1.5A
Communication Current Average communication current : 390mA @ +9 VDC;
Communicating instantaneous peak current: 1.0A @ +9 VDC
Standby current Standby average current: <56mA @ +9 VDC
Physical features:
Item Content
Housing Metal housing, anti-radiation, anti-interference; lightning protection design;protection rating IP30; particularly suit for harsh industrial control environments.
Product dimensions 174*131*27mm(not including the antenna and the fixed parts)
Packing Size 350*215*88mm
Weight 0.7kg
Other parameters:
Item Content
Operating Temperature -25ºC ~+65ºC
Extended operating temperature -35 ºC~+75ºC
Storage Temperature -40~+85ºC
Relative Humidity 95%(No condensation)
Features
1. Support WIFI (802.11 a/b/g/n) function and 4G/3G wireless network, the system loaded wide area network communication VPN tunnel, WIFI LAN transmission security authentication and other security features, to achieve seamless connectivity between wireless LAN and wireless WAN, and also provide users with high-speed, secure, reliable mobile broadband services.
2.Support the function of Internet cache; save data flow, reduce load and save cost.
3.Support remote back-stage management, advertisement push, remote upgrade and configuration.
4. Support the function of network behavior management that is stipulated mandatorily by state.
5. Support dual TF card: the device adopts dual TF card design, and maximum capacity 128G can store thousands of advertising data or movie files.
6. Provides a standard WAN, supports PPPOE, can directly connect to ADSL equipment and other leased line.
7.Support wireless video monitoring and dynamic image transmission
8. Support local multimedia.
9. Supports Ethernet data communication and packet forwarding, also supports serial port TCP / UDP transparent data transmission or serial configuration.
10. Support GPS/Beidou system (Optional)
11. Support 3 channel analog input with photoelectric isolation; it can detect vehicle fault or apply to vehicle alarm. (Optional, Customized)
12. Support 3 channel control output; it can control vehicle flameout, etc. (Optional, Customized)
13. Support VPN tunnel, including PPTP, MPPE, L2TP, GRE and IPSEC
14. Intelligent anti-dropped, support online testing, online maintenance, automatic redial, and router is always on-line.
15. Support IPTABLES firewall, packet filtering.
16. Support regular on-line offline functionality, can set the device on-line and offline in a certain period of time.
17. Support multiple protocols: TCP / IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, etc.
18. Support static routing.
19. Support DHCP / DHCPD functionality.
20. Support NAT port mapping function, such as SNAT, DNAT.
21. Support DDNS (Dynamic Domain Name Server): support ORAY, 88IP, and DYNDNS domain name service provider
22. Support DMZ
23. Support the APN / VPDN network
24. Convenient WEB configuration, support Remote WEB Management.
25. Support WEB configurations save and restore to achieve the rapid deployment parameters backup and batch of equipment.
26. Support telnet management, user-friendly console shell interactive environment
27. Support multiple terminals sharing router ppp wan.
28. Support multiple wireless dial-up mode: automatically assigned, specify the IP, specify local and remote IP.
29. Support as a PPP server, multiple authentication methods, and support mutual authentication
30. Easy to use COM and SYSLOG System diagnostics, debugging
31. Support Serial port local software upgrades
32. Supports TFTP remote software upgrade
33. Support real-time clock
34. Support both LINUX and WINDOWS operating systems
