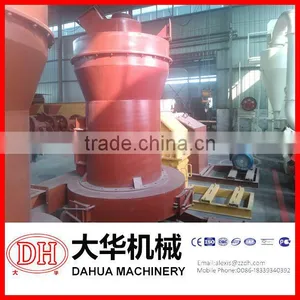

Raymond roller mill, stone mill, milling machine
- 50 Set / Sets per Month
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Dahua |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Roymond mill:---humidity less than 6%
---30 to 400 mesh,high capacity
---20year experiences to produce.
Raymond mill application:
The Ramond Mill Machine is used in grinding the non-flammable and non-explosive stuff which has the moh’s hardness below 9.3, humidity less than 6%; Raymond mill is effective closed-circuit high fineness powder manufacturing equipment, which is applicated in small and medium mining, silicate and chemical, building-material, metallurgy, refractory material, pharmaceuticals and lime industry.
Raymond mill working principle:
When Raymond mill works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.
The Parameter of Raymond Mill:
Model | Grinding Roller | Grinding Ring | Feeding | Output size (mm) | Capacity | Motor | Overall | |||
Nos | Diameter | Height | Outside | Height | ||||||
3R1410 | 3 | 140 | 100 | 495 | 100 | <8 | 0.613-0.044 | 0.15-1.2 | 14.1 | 3340×2200×3200 |
3R2115 | 3 | 210 | 150 | 726 | 150 | <15 | 0.613-0.044 | 0.28-1.8 | 28.2 | 4480×3100×3970 |
3R2615 | 3 | 260 | 150 | 865 | 150 | <15 | 0.613-0.044 | 0.35-2.8 | 35.7 | 5000×4100×4850 |
3R2715 | 3 | 270 | 150 | 884 | 150 | <15 | 0.613-0.044 | 0.40-3.4 | 42.7 | 5050×4150×4900 |
3R3015 | 3 | 300 | 150 | 965 | 150 | <15 | 0.613-0.044 | 0.45-3.7 | 55 | 5200×4200×4950 |
4R3016 | 4 | 300 | 160 | 990 | 160 | <20 | 0.613-0.044 | 0.6-4.5 | 55 | 5250×5000×5500 |
4R3216 | 4 | 320 | 160 | 1073 | 160 | <25 | 0.613-0.044 | 1.0-5.2 | 72.5 | 7700×7200×8800 |
5R4119 | 5 | 410 | 190 | 1400 | 190 | <30 | 0.613-0.044 | 2.0-9.0 | 157.5 | 7900**** |
