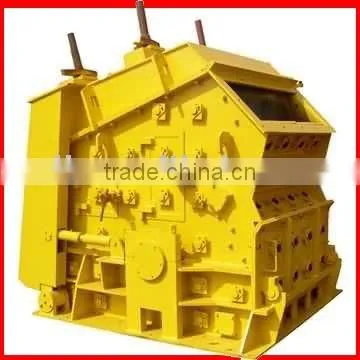

stone impact crusher 1. Crushing hard rock. 2. Connection with locking sleeve assembly. 3. The blow bar with high chrome.Impactor ,stone Impact crusher, Efficient crusher,Big crusher
This series is optimized after adopting domestic and foreign techniques. It can crush granite, basalt, bluestone, etc. The diameters of these materials are from 100mm to 500mm and crushing compression strength not more than 320Mp. It features big reduction ratio, high crushing efficiency, and convenient maintenance. The final product is desirable device for aggregation used in highway and railway surface and water and electricity industry.
Features:
1. Crushing hard rock.
2. Connection with locking sleeve assembly.
3. The blow bar with high chrome.
4. Hydraulic or hand opening.
5. Impact plate with special shape.
6. Crushed product with cubical shape.
7. Easy maintenance.
8. Reliable operation.
.
Model |
Specifications (mm) |
Feeding size Opening (mm) |
Max Feeding Size (mm) |
Capacity (t/h) |
Power (Kw) |
Weight (Excluding motor Kg) |
PF-0607 |
644×740 |
320×770 |
100 |
10-20 |
30 |
4000 |
PF-0807 |
850×700 |
400×730 |
300 |
15-30 |
30-45 |
8130 |
PF-H-1007 |
1000×700 |
400×730 |
300 |
30-50 |
37-55 |
9500 |
PF-A-1010 |
1000×1050 |
400×1080 |
350 |
50-80 |
55-75 |
12127 |
PF-B-1210 |
1250×1050 |
400×1080 |
350 |
70-120 |
110-132 |
14000 |
PF-B-1214 |
1250×1400 |
400×1430 |
350 |
130-180 |
132-160 |
18579 |
PF-1013 |
1000×1300 |
650×1350 |
400 |
80-120 |
90-110 |
12000 |
PF-1315 |
1320×1500 |
860×1520 |
500 |
160-250 |
180-260 |
19000 |
PF-1320 |
1320×2000 |
860×2030 |
500 |
360-350 |
300-375 |
24000 |
