Specifications
1,simple structure,low maintenance2,high magnetic force strong absorption
3,electromagnetic speed,free installation

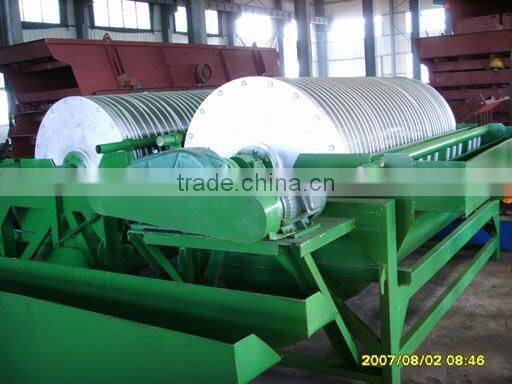

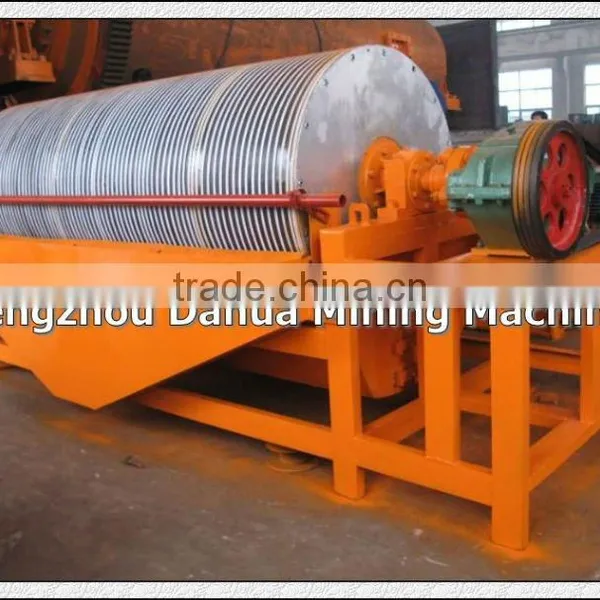

CTB magnetic cobber Detail Information:
This magnetic separator can separate raw materials with different magnetic rigidities. The machine works by using magnetic force and the machine force. Magnetic separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications.
CTB magnetic cobber Structure:
The heart of each separator is the magnetic system. With a unique design it has a proven record of high efficiency. Available in a circular design with process vessel diameters smaller than 3mm, this magnetic separator is an efficient piece of equipment for processing fine magnetic minerals, such as hematite, limonite, wolfram, ilmenite and tantalum-niobium. Recently, this equipment has also been more and more frequently used in purifying quartz, feldspar and nephline.
CTB magnetic cobber Features:
The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.
Main reference parameter of the CTB Magnetic Cobber :
Model |
Diameter
mm |
Length of drum
mm |
Speed
r/min |
Feeding size
mm |
Capacity
t/h |
Power
KW |
CTB6012 |
600 |
1200 |
<35 |
2-0 |
10-20 |
1.5 |
CTB6018 |
600 |
1800 |
<35 |
2-0 |
15-30 |
2.2 |
CTB7518 |
750 |
1800 |
<35 |
2-0 |
20-45 |
2.2 |
CTB9018 |
900 |
1800 |
<35 |
3-0 |
40-60 |
3 |
CTB9021 |
900 |
2100 |
<35 |
3-0 |
45-60 |
3 |
CTB9024 |
900 |
2400 |
<28 |
3-0 |
45-70 |
4 |
CTB1018 |
1050 |
1800 |
<20 |
3-0 |
50-75 |
5.5 |
CTB1021 |
1050 |
2100 |
<20 |
3-0 |
50-100 |
5.5 |
CTB1024 |
1050 |
2400 |
<20 |
3-0 |
60-120 |
5.5 |
CTB1218 |
1200 |
1800 |
<18 |
3-0 |
80-140 |
5.5 |
CTB1224 |
1200 |
2400 |
<18 |
3-0 |
85-180 |
7.5 |
CTB1230 |
1200 |
3000 |
<18 |
3-0 |
100-180 |
7.5 |
