Specifications
1. China famous manufactory2. ISO9001 quality
3. Best price in the market
4. Good reputation from users
6. Multi-type dryer

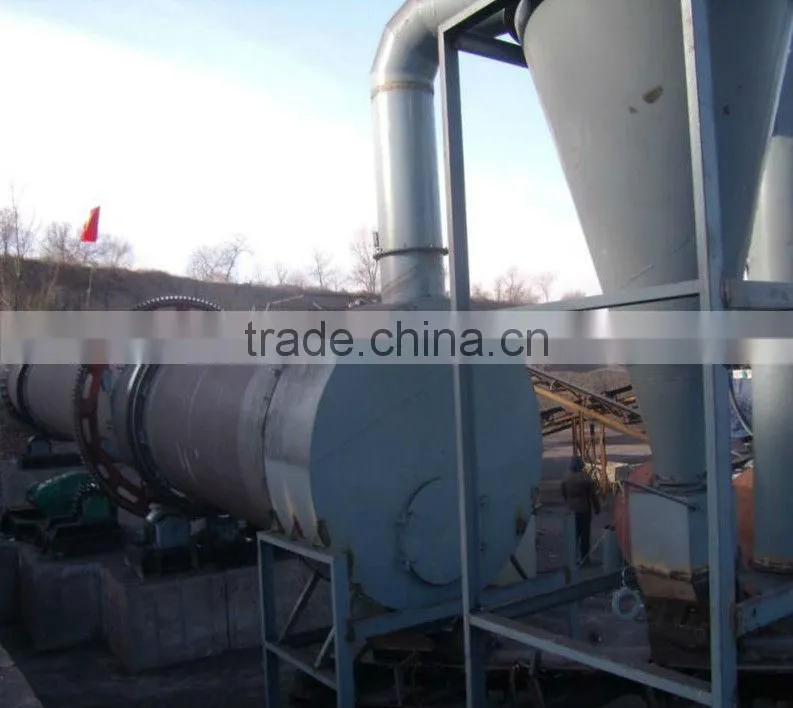

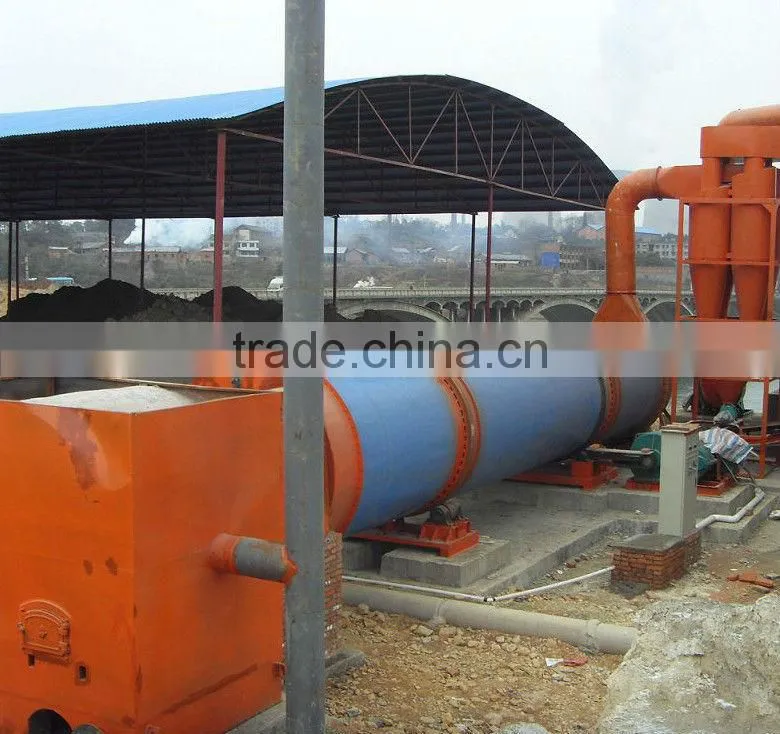

River Sand, Silica Sand Rotary Dryer with Dust Collector Introduction:

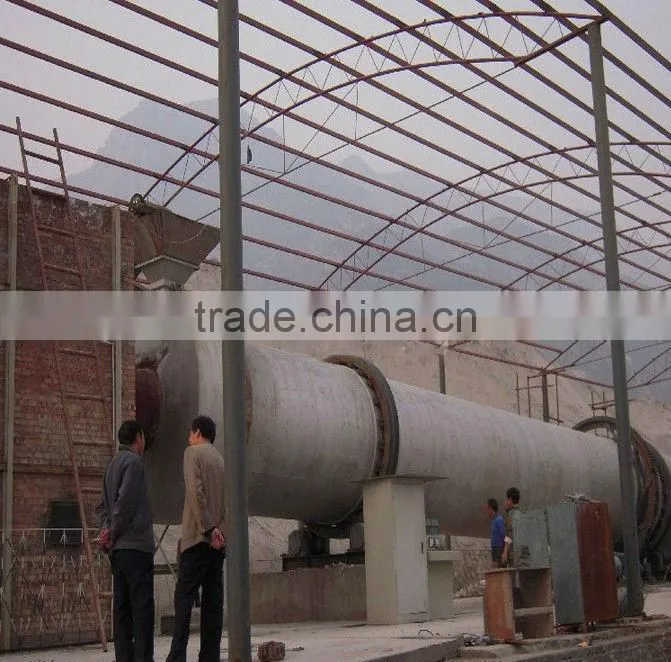

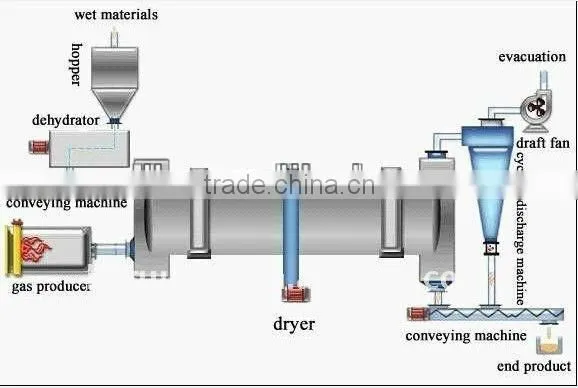

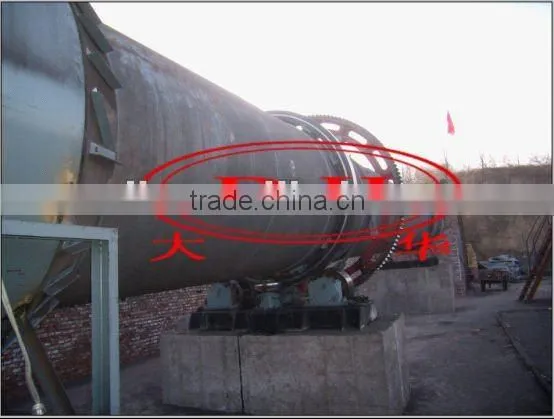

The industrial dryer( River Sand, Silica Sand Rotary Dryer with Dust Collector ) is a type of dryer employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with a heated gas. The industrial dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The industrial dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the industrial dryer under gravity.
River Sand, Silica Sand Rotary Dryer with Dust Collector Application:
Industrial dryer( River Sand, Silica Sand Rotary Dryer with Dust Collector ) is mainly used for the drying of materials like slag, clay and coal dust in building material industry or metallurgy industry, and leaching slag in metal beneficiation.
In order to control the temperature of the industrial dryer, a thermocouple which can show the temperature change of the industrial dryer’s feeding and discharging ends is allocated on the feeding and discharging devices. This offers support for the better control of the working temperature (normal 350-380 centigrade) in the drum.
Industrial dryer( River Sand, Silica Sand Rotary Dryer with Dust Collector ) is used in the drying of graininess material, and sticky paste material or high moisture material by adding materials.
Industrial dryer ( River Sand, Silica Sand Rotary Dryer with Dust Collector )advantages: great production capacity, wide rang of application, small flow rate resistance, large fluctuation range in manipulation and convenient operation.
Industrial dryer is most used in the drying of sand, mineral powder, coal slurry, chicken manure and dairy manure.
Industrial Dryer ( River Sand, Silica Sand Rotary Dryer with Dust Collector )Structure:

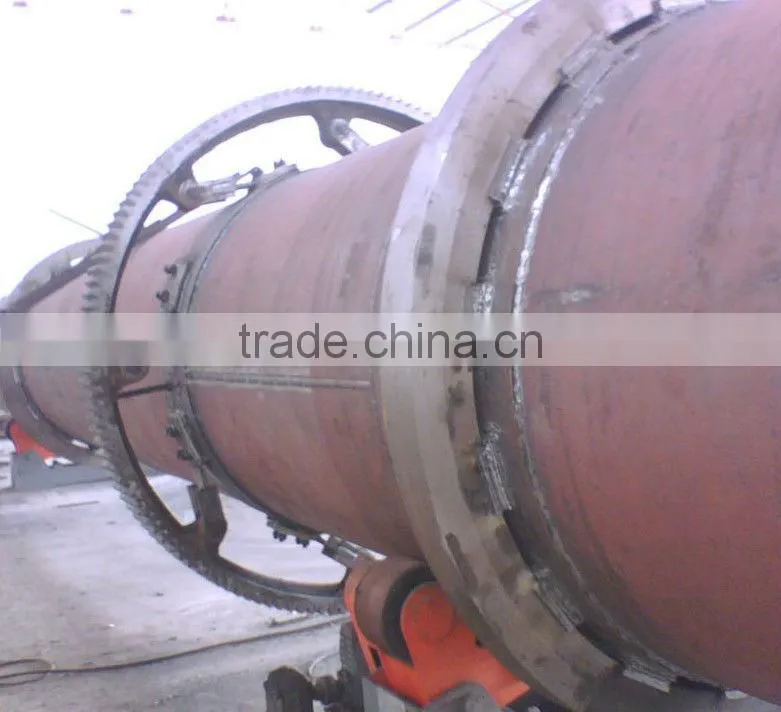

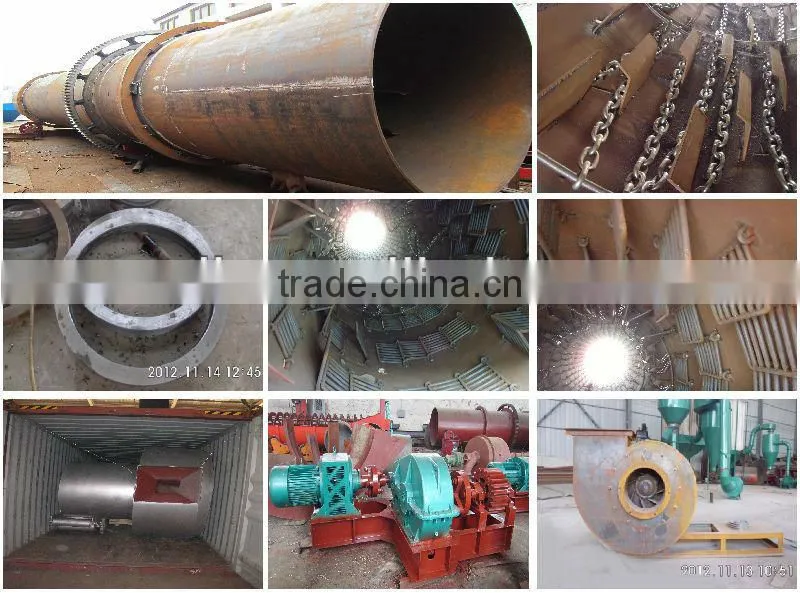

This industrial dryer consists of rotary body, throwing flitch, transmission device, supporting device and sealing ring.
The industrial dryer of our factory adopts new type throwing flitch device which has multi-functions such as guidance, current sharing and material throwing and can make the materials distributing evenly on the radial section of the industrial dryer. So that the material curtain become thin, even and universal and exposed to the hot current totally thus the heat energy is fully utilized.
The industrial dryer in our factory chooses the right operation parameter, the coal consumption and power consumption is 10-15% lower than general dryer, and the output per hour is 10-15% higher. Industrial dryer is widely used in the cement and beneficiation industries.
Technical Parameters of Professional rotary dryer:
Specific-ations(m) |
Capacity(t/h) |
Main motor |
Main gear box |
Weight(t) |
||
Power(kw) |
Model |
Model |
Speed reduction ratio |
|||
Ø1.2*10 |
2.5 |
7.5 |
Y160M-R3 |
ZL50-16-I |
----- |
13.5 |
Ø1.5*12 |
3.3-4.9 |
10 |
Y160L-6-B3 |
JZQ500-III-2F |
----- |
18.9 |
Ø1.5*15 |
4-6 |
18.5 |
Y200L1-6 |
JZQ500-III-2F |
----- |
21 |
Ø1.8*12 |
4-6 |
18.5 |
Y160L-6 |
ZQ50-16II-2 |
16.46 |
22.83 |
Ø2.2*12 |
7-12 |
18.5 |
Y200L7-6 |
JZQ650-III |
31.5 |
37.6 |
Ø2.2*14 |
7-12 |
22 |
Y200L7-6 |
JZQ650-III |
31.5 |
40 |
Ø2.2*16 |
12 |
30 |
Y225M-6 |
JZQ750-III |
31.5 |
45 |
Ø2.4*14 |
12 |
30 |
Y250M-6 |
JZQ750-III |
31.5 |
51 |
Ø2.4*18 |
10-13 |
37 |
Y250M-6 |
ZL85-13-I |
27.16 |
54 |
Ø2.4*20 |
10-14 |
37 |
Y250N-6 |
ZL85-13-I |
27.16 |
54.14 |
Ø3*20 |
25 |
55 |
Y250M-4 |
ZL100-16-I |
41.52 |
78 |
Ø3*25 |
32-36 |
75 |
YR280M-4 |
ZL100-16-I |
41.52 |
104.9 |
