Specifications
Separator Machine1.Reliable production
2.Good performance
3.High capacity

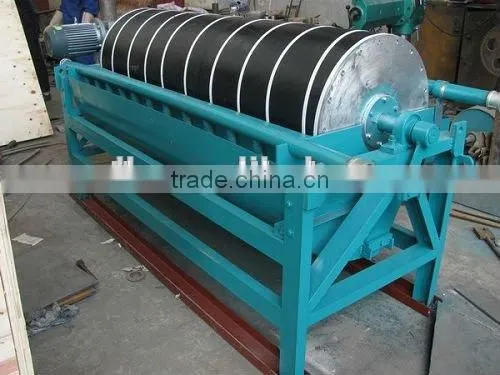

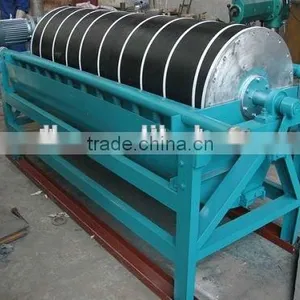

Magnetite Iron Ore, Gold, Lead Zinc Magnetic Separator Machine widely used for Conveyor Belts in South Africa
Introduction: magnetic separator is usually used for sorting the fine-grained strong magnetic minerals, or removing strong magnetic minerals from non-magnetic minerals. With a deep magnetic field, the machine can make a continuous row of ore feeding and discharge. It also has enough working clearance and high processing capabilities.
Features: 1. The magnetic system adopts quality ferrite material and NdFeB magnet. 2. The average magnetic induction of the drum surface is about 100 ~ 600 mT. 3. Downstream tank, half upstream tank,upstream tank or double-drum type can be available. 4. Simple structure, large handling capacity, convenient operation and easy maintenance.

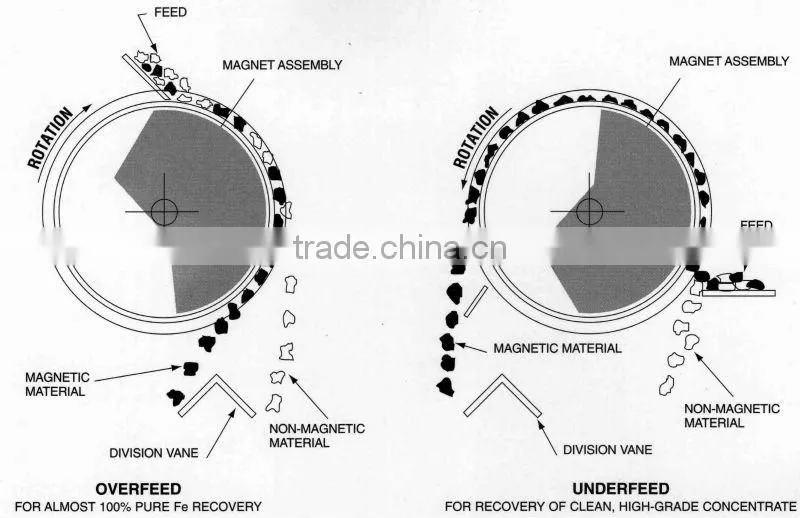

Working principle: When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
Guide for Model Selection:The drum can be equipped with three kinds of tanks. That is downstream tank (Series CTS), upstream tank (Series CTN) and half upstream tank (Series CTB). The downstream tank (Series CTS) is applicable to rougher flotation and concentration of ore with size: 0~10mm. The upstream tank (Series CTN) is applicable to rougher flotation and concentration of ore with size: 0~0.6mm and the recovery of heavy-medium in coal preparation industry. The half upstream tank (Series CTB) is applicable to rougher flotation and concentration of ore with size: 0~1mm.
technical parameters
Model |
Diameter
mm |
Length of drum
mm |
Speed
r/min |
Feeding size
mm |
Capacity
t/h |
Power
KW |
CTB6012 |
600 |
1200 |
<35 |
2-0 |
10-20 |
1.5 |
CTB6018 |
600 |
1800 |
<35 |
2-0 |
15-30 |
2.2 |
CTB7518 |
750 |
1800 |
<35 |
2-0 |
20-45 |
2.2 |
CTB9018 |
900 |
1800 |
<35 |
3-0 |
40-60 |
3 |
CTB9021 |
900 |
2100 |
<35 |
3-0 |
45-60 |
3 |
CTB9024 |
900 |
2400 |
<28 |
3-0 |
45-70 |
4 |
CTB1018 |
1050 |
1800 |
<20 |
3-0 |
50-75 |
5.5 |
CTB1021 |
1050 |
2100 |
<20 |
3-0 |
50-100 |
5.5 |
CTB1024 |
1050 |
2400 |
<20 |
3-0 |
60-120 |
5.5 |
CTB1218 |
1200 |
1800 |
<18 |
3-0 |
80-140 |
5.5 |
CTB1224 |
1200 |
2400 |
<18 |
3-0 |
85-180 |
7.5 |
CTB1230 |
Model |
The cylinder size
(D×L)(mm) |
Width of the belt(mm) |
Magnetic intensity |
Feeding size
(mm) |
Capacity
(t/h) |
XCT465 |
400×650 |
500 |
Customized scope
1600-4500 Gauss
|
<70 |
5 |
XCT565 |
500×650 |
500 |
<70 |
10 |
|
XCT665 |
600×650 |
500 |
<70 |
15 |
|
XCT68 |
600×800 |
650 |
<80 |
20 |
|
XCT758 |
750×800 |
650 |
Customized scope1600-5500 Gauss
|
<70 |
25 |
XCT7595 |
750×950 |
800 |
<80 |
30 |
|
XCT995 |
900×950 |
800 |
<80 |
150-210 |
|
XCT10115 |
1000×1150 |
1000 |
<80 |
350-430 |
