Specifications
1.Raw material:wire rod, steel rebar, round bar2.Straightening diam:6-14mm
3.Cutting length:800-8000mm
4.Speed:55m/min
wire straightening & cutting machine
---Introduction---
wire straightening & cutting machine
Bar wire straightener and cutter for bar is used to straightening galvanized wire or rebar with 4mm-16mm, and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine. So it is widely accepted to the factory who is dealing wire wires and wire mesh. Also widely used in construction area.
---Main parameter---
wire straightening & cutting machine
Type |
GT6-14 |
GT-4-12 |
Straightening Dimension |
Φ6-Φ14 |
Φ4-Φ12 |
Wire Traction Speed |
55m/min |
55m/min |
Wire Cut Lengths |
800-8000mm(can add) |
800-8000mm(can add) |
Cutting Length Error |
±15mm |
±15mm |
Wire Straightening Degrees |
±2mm/m |
±2mm/m |
Traction Motor |
3KW-6p |
2.2KW-6p |
Straightening Motor |
11KW-4P |
7.5KW-4P |
Cutting Motor |
5.5KW-4p |
4KW-4p |
Whole Weight |
1500kg |
1000kg |
Overall Dimension |
2700×800×1200mm |
2500×800×1100mm |

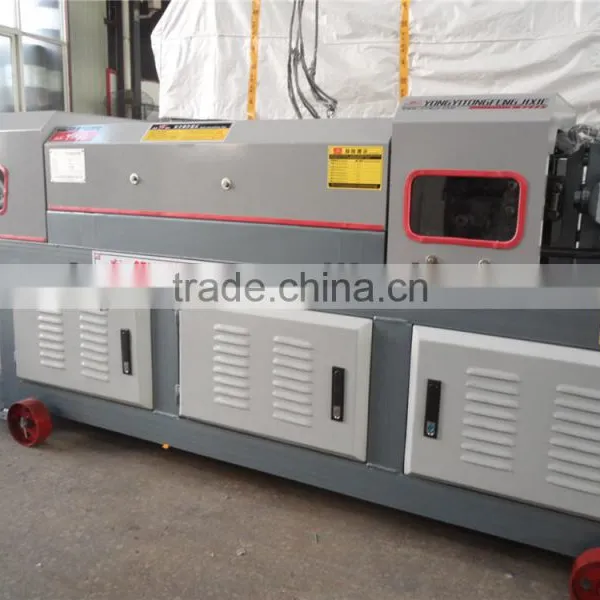

---Picture showcase---
wire straightening & cutting machine
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
1. 12 months guarantee
2. patiently response and enthusiastic service
Outer packing: wooden case
Inner packing: iron shelf
Delievery details: within 15 days after reveiving prepayment
1. What is raw material?
Wire rod, round steel, screwed steel, steel rebar
2. What is machine usage?
Straightening and cutting
