Home > Products > egg tray machine > HY-32 waste paper egg tray machinery

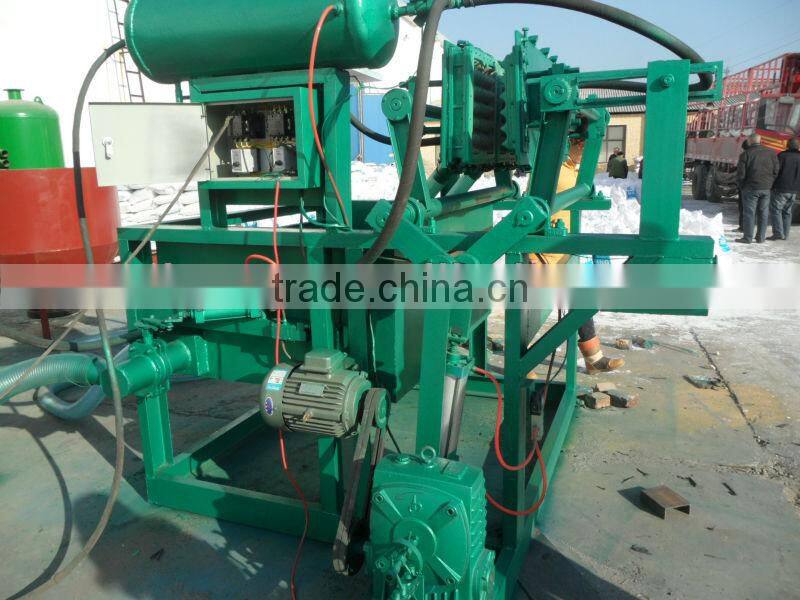

HY-32 waste paper egg tray machinery
- 50 Set / Sets per Month
- QingDao TianJin
- T/T Credit Card
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Egg Tray Machine | Processing Type: | Pulp Molding Machine |
Place of Origin: | Henan, China | Brand Name: | HengYuan | Model Number: | HY-4, HY-16, HY-32 |
Voltage: | 380V, 50 HZ | Power(W): | 33.5-116kw | Dimension(L*W*H): | 10*6*4.5m |
Weight: | 3-5t | Certification: | Other | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Model: HY-4, HY-16, HY-322.Capacity: 1000pcs/h, 2000-25000pcs/h, 3000-4000pcs/h
Waste paper egg tray machinery
Brief introduction
Egg tray mostly recycled pulp molding machines by repression, because the production process is simple, low cost, no pollution, known as the " green " packaging , egg tray usually pack eggs , duck eggs and others, its main role is to shock , easy to transport and carry. it is hot sale around the world.
Specification
Type
| Mold | Capacity | Power | Plant area | consumption | Labor |
HY-4
| 4 | 1000pcs/h | 33.5kw | More than 300 square meter | 2ton/24hours (coal) | 4-6 peoples |
HY-16 | 16
| 2000-2500pcs/h | 60kw | More than 500 square meter | 2.2ton/24hours (coal) | 4-6 peoples |
HY-32
| 32 | 3000-4000pcs/h | 116kw | More than 600 square meter | 2.5ton/24hours (coal) | 4-6 peoples |
Brief equipment of whole set egg tray machine
1. pulp molding system: hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet for pulping system
2. forming system: Rotary forming machine, Molds, Roots vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet for forming system
3. drying system: Conveyor, Blower, induced fan, Burner, Bellows, etc
4. packing system: baling machine
The whole set egg tray machines (1000pcs/h)
HY-4 , molding machine
HY-16, molding machine
HY-32, molding machine
A set of mold
Packing detail: Packed in containers or as request
Delievery detail: 30 days after receiving prepayment
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China
1. How many kind of types of molding system?
There are three types molding system, HY-4 has one side with 4 pieces molds, HY-16 has four sides with 16 pieces molds, HY-32 has 8 sides with 32 pieces molds. the mold is changeable according to customer's requestion.there also have many kind of shapes for eggs, shoes, wine, electric product.
2. How many dryer methods?
There are three drying types: drying by natural wind, drying by brick coneyor, drying by metal squared dryer
What can we do for you? welcom to contact me
