Specifications
small model egg tray machine1.Power:33.5-116kw
2.Weight:3-5Ton
3.Weight of egg tray:100g/piese
4.Warranty:1 year
GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China.

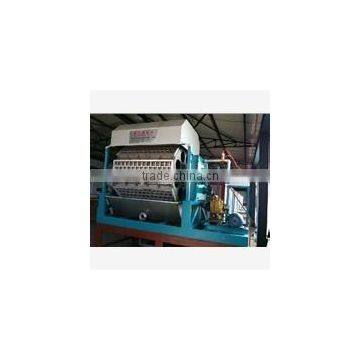

small model egg tray machine
Specification of small model egg tray machine
Type |
Mold |
capacity |
power |
Plant area |
consumption |
Labor |
HY-4 |
4 |
1000pcs/h |
33.5kw |
More than 300 square meter |
2ton/24hours (coal) |
4-6 peoples |
HY-16 |
16 |
2000-2500pcs/h |
60KW |
More than 500 square meter |
2.2ton/24hours (coal) |
4-6 peoples |
HY-32 |
32 |
3000-4000pcs/h |
116KW |
More than 600 square meter |
2.5ton/24hours (coal) |
4-6 peoples |
Brief introduction of small model egg tray machine
egg tray extruding machine is widely used in egg tary,machine parts,mobile phone,artware,fruit and other packing with wide market degree of automatic,simple operation,less labor,no pollution,recyclable,reduce cost,quickly becoming the typical green packing for today.
Packing detail: Packed in containers or as request
Delievery detail: 30 days after receiving prepayment
We also use CIF TERMS
Equipment of the whole production line
1. pulp molding system: hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet for pulping system
2. forming system: Rotary forming machine, Molds, Roots vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet for forming system
3. drying system: Conveyor, Blower, induced fan, Burner, Bellows, etc
4. packing system: baling machine
HY-4 Layout of small model egg tray machine
1.
The Seller will send two engineers to the buyer’s factory, they are responsible for the instruction of installing machine and training the operator until the machine working normally. All the expenses out of china (including the round-trip air tickets, foods and hotel, salary 70usd/day/enginner) should be borne by the buyer. The buyer should prepare onetranslator for our engineers to communication.
2.
Forming machine warranty time: 12 month.
(not including the mould and quick-wear parts)
The seller will provide below quick-wear parts for free to buyer:
Proximity switch --10 units.
Solenoid valve –1 unit (10 leather packing)
Mold core –10 boxes
3.
After guarantee period the Seller will send engineer on the Buyer’s request. All the expenses of this engineer will be borne by the Buyer’s company, and service charge will be negotiated by the Buyer and the Seller.
4.
Weclcome to visting our company,we will pick up you at the nearest vide you a comfortable visting in China.
Type HY-32
1. How many kind of types of molding system?
A:There are three types molding system, HY-4 has one side with 4 pieces molds, HY-16 has four sides with 16 pieces molds, HY-32 has 8 sides with 32 pieces molds. the mold is changeable according to customer's requestion.there also have many kind of shapes for eggs, shoes, wine, electric product.
2. How many dryer methods?
A:There are three drying types: drying by natural wind, drying by brick coneyor, drying by metal squared dryer
