Specifications
1.5 ton per hour wood pellet millCE Certificate
Endurable roller and die
High heating value
Easy operation
High capacity wood biomass pellet machine
Following are the specification of the machines:
Model |
Capacity (kg/h) |
Power (kw) |
Production Dia(mm) |
Packing size(m3) |
Weight (kg) |
HSKLN200 |
100-120 |
7.5 |
6-8 |
1.15*0.53*0.75 |
320/350 |
HSKLN250 |
180-200 |
15 |
6-8 |
1.25*0.6*0.85 |
370/400 |
HSKLN300 |
200-300 |
22 |
6-10 |
1.3*0.6*0.9 |
490/550 |
HSKLN350 |
400-500 |
30 |
6-15 |
1.65*1*1.6 |
750/800 |
HSKLN450 |
650-750 |
37 |
6-20 |
1.8*1*1.75 |
900/1000 |
HSKLN550 |
850-1000 |
45 |
6-30 |
2*1.1*1.8 |
1400/1600 |
Following are some pictures of the machine and final pellets:
Pellet mill can compress all kinds of biomass raw materials into pellets for fuel. Pellets are widely used for home and industrial application.
Features of our pellet mill
1) Solid structure
2) Roller and die are made of steel alloy and they are through surgace heat treatment.
3) Our pellet mill features high pressure and it can compress hard wood into pellets.
Following are the specification of the machines:
Model |
Capacity (kg/h) |
Power (kw) |
Production Dia(mm) |
Packing size(m3) |
Weight (kg) |
HSKLN200 |
100-120 |
7.5 |
6-8 |
1.15*0.53*0.75 |
320/350 |
HSKLN250 |
180-200 |
15 |
6-8 |
1.25*0.6*0.85 |
370/400 |
HSKLN300 |
200-300 |
22 |
6-10 |
1.3*0.6*0.9 |
490/550 |
HSKLN350 |
400-500 |
30 |
6-15 |
1.65*1*1.6 |
750/800 |
HSKLN450 |
650-750 |
37 |
6-20 |
1.8*1*1.75 |
900/1000 |
HSKLN550 |
850-1000 |
45 |
6-30 |
2*1.1*1.8 |
1400/1600 |

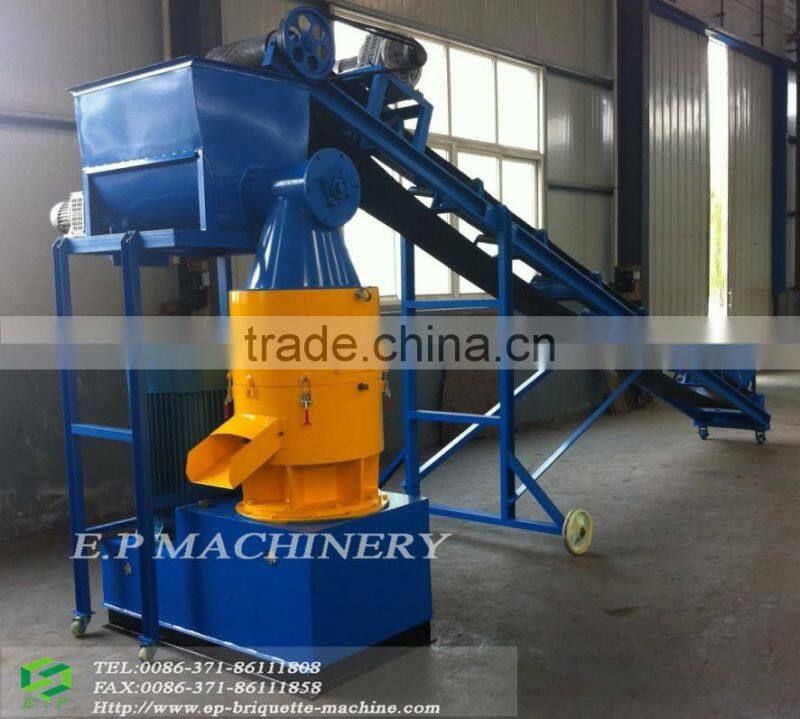

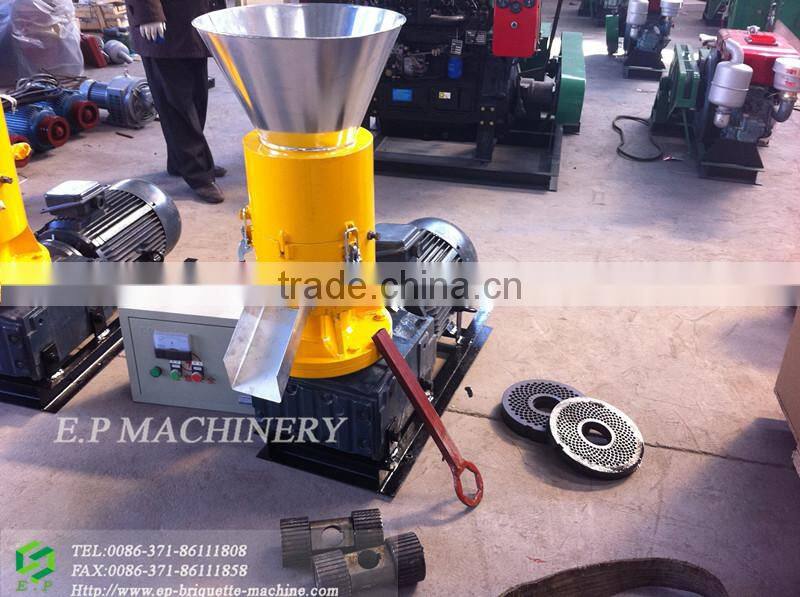

Machine pictures

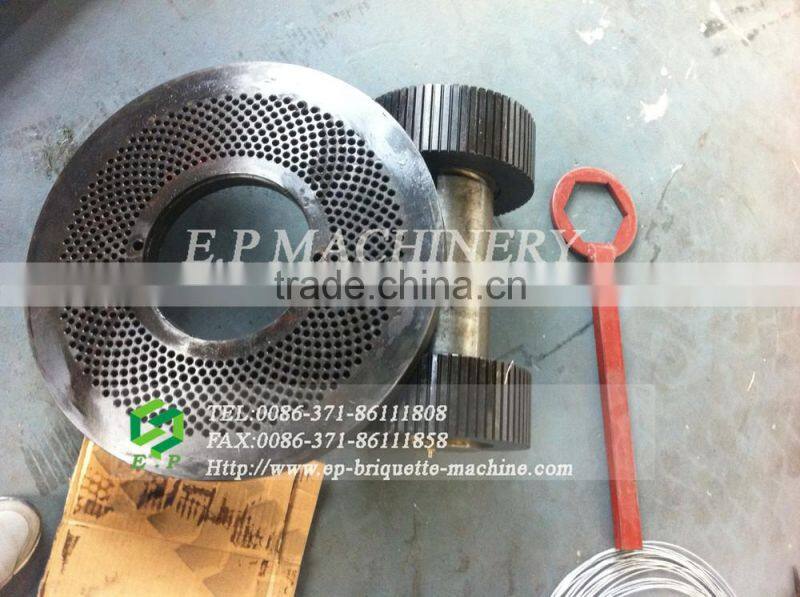

250 pellet mill roller and die

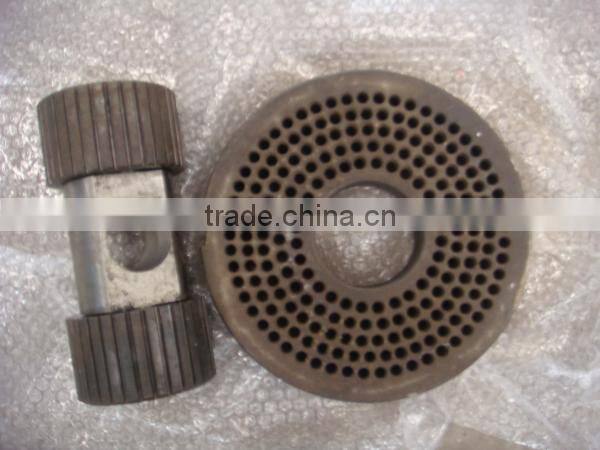

550 pellet mill roller and die
Packing is plywood case and shipping is 15-20 working days after deposit
We offer online technical support.
Machine guarantee time is one year except spare part
