The pioneer of environmental protection--An ideal waste solution supplier
Hydraulic baler machine for cardboard,PET bottle, scrap plastic, waste paper
1.Product introduction:
- Horizontal semi-automatic hydraulic baler machine with door (closed mouth).
- PLC control system, can inspect feeding automatically, automatic compression and other processes, also can be operated manually.
- Convenient, safety, the tie wire by manual, one-off bale out, right and left hydraulic locking door.
- Applicable to waste paper, carton box, cardboard, plastic, fiber and other solid plastic industry.
2. Machine parameter:
Model |
JPW100BC |
Hydraulic power (Ton) |
100 |
| Bale size (W*H *L mm) | 1100*1100*(300-1100) |
Feeding opening size (L*W mm) |
1500*1100 |
Bale weight (kg) |
600-800 |
Bale lines |
5 |
| Out-bale way | one-off bale out |
| Name | Hydraulic baler machine for cardboard,PET bottle, scrap plastic, waste paper |
Brand |
CSJ |
Voltage (customizable) |
380 V/ 50 HZ |
|
Power (Kw/Hp)
|
30 Kw/40 Hp
|
Machine size(L*W*H mm) |
6100*1650*2200 |
3.Brand Of Baler Parts:
Crucial Components Allocation | |
HYDRAULIC TECHNIQUE |
REXROTH (Germany TECHNIQUE) |
HYDRAULIC ELEMENTS |
YUTIEN,HYDOR (TAIWAN Brand) |
SEALING PARTS |
HALLET (UK brand) |
ELECTICAL ELEMENTS |
DELIXI (Europe brand ) |
OIL PIPE |
ZMTE (Europe brand) |
MOTOR |
JIABAO (Brand-specific Customized hydraulic motor, without junction axis ,lower noise, no maintenance and energy saving, safe and reliable |
PUMP |
HENGYUAN (Taiwan investment) |

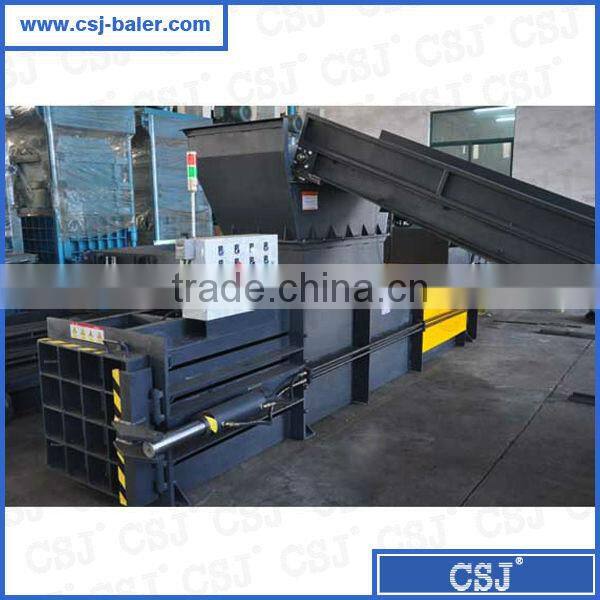

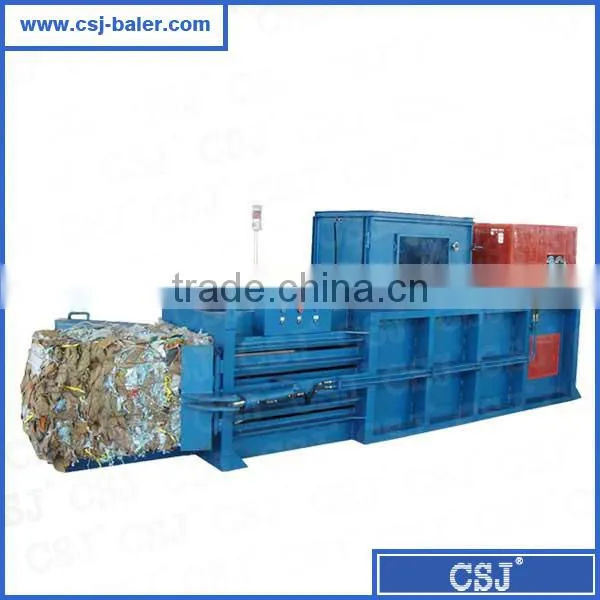

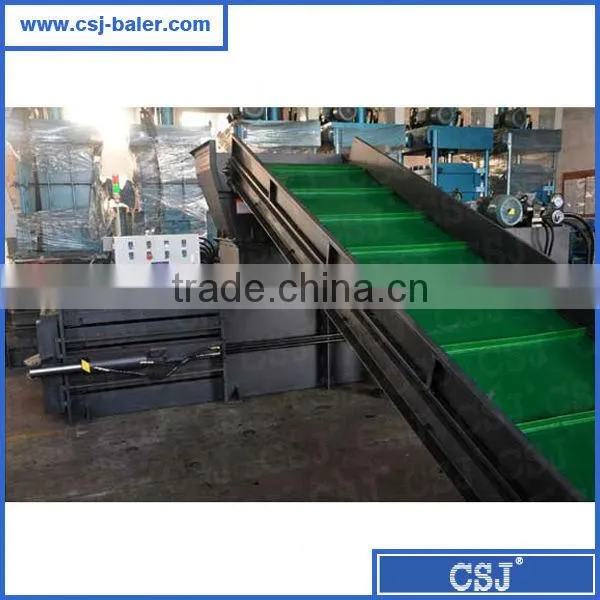

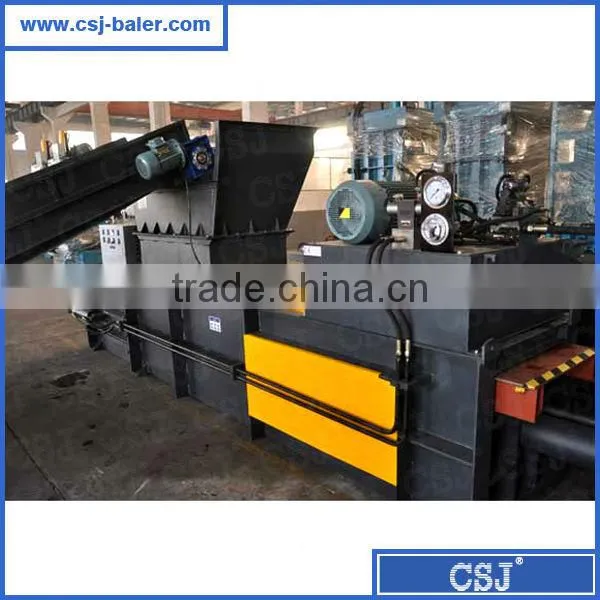

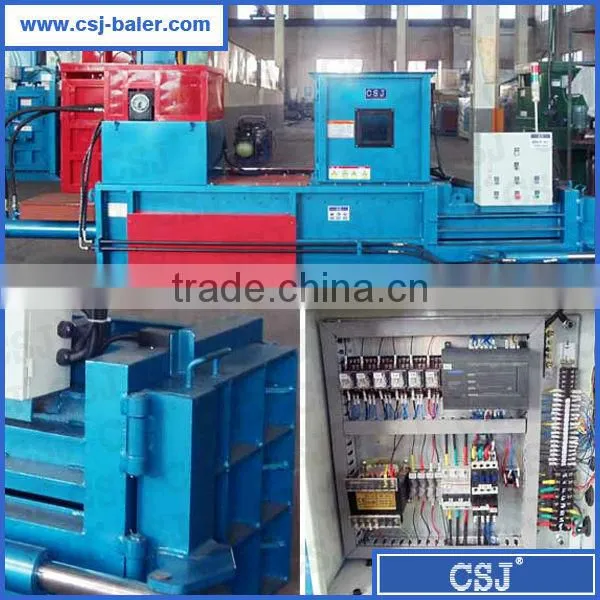

4.Details of machine photoes:
5.Models for option:
Model |
Hydraulic power (Ton) |
Bale size(W*H*L mm) |
Feed opening size (L*W mm) |
Bale weight(kg) |
Bale lines |
Out- bale way |
Voltage (customizable) |
Power (Kw/Hp) |
Machine size (L*W*H mm) |
JPW40BC |
40 |
720*720*(300-1000) |
1000*720 |
250-350 |
4 |
one-off bale out |
380V / 50 hz |
15kw/20 hp |
4350*1080*1870 |
JPW60BC |
60 |
1000*750*(300-1100) |
1200*1000 |
350-500 |
4 |
one-off bale out |
380V / 50 hz |
18.5kw/25hp |
4450*1100*2180 |
JPW80BC |
80 |
1100*800*(300-1100) |
1350*1100 |
500-600 |
5 |
one-off bale out |
380V / 50 hz |
22kw/30hp |
5600*1530*2100 |
JPW100BC |
100 |
1100*1100*(300-1100) |
1500*1100 |
600-800 |
5 |
one-off bale out |
380V / 50 hz |
30kw/40hp |
6100*1650*2200 |
6.Accessaries of complete equipment:
7.Certification:
8.Production process:
9.Packing for shipment:
10.In exhibition:
11.About us:
- Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
- We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
- Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
- Got CE ISO TUV SGS and so on Certifications
- We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.
12.Our service:
- One year warranty for whole machine.
- Engineers available to service machinery overseas.
- 24 hours technical support by e-mail.
13.Contact us:
Contact person: Alice Zhu
E-mail:jiabao801(@)
Website:
Cell: 0086-15821887659
Tel: 0086-021-61400508
Skype: csj-baler801
QQ: 2880619239
Add: Room 909, No.6 building, No.299 west Jiangchang Road, Shanghai China
