19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine

19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine thumbnail-1
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine thumbnail-2
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine thumbnail-3
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine thumbnail-4
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine thumbnail-5
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine thumbnail-6
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine photo-1
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine photo-2
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine photo-3
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine photo-4
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine photo-5
19 Years Good Reputation Coconut Chaff Bagging Machine Wood Shavings Press Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Other, Food, garbage
Packaging Type:
Other, PP strapping / iron wire
Contact Supplier Request Quote Chat Now
Nantong Jiabao Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Other, Food, garbage
Packaging Type Other, PP strapping / iron wire
Packaging Material Metal, Plastic
Automatic Grade Semi-Automatic
Driven Type Hydraulic
Voltage 380V /50Hz
Power 22Kw/30Hp, 22 Kw/30 Hp
Place of Origin Shanghai, China
Brand Name CSJ
Model Number JPW-KT180
Dimension(L*W*H) 4250*3100*1700 mm
Weight 4300 KG
Certification CE,SGS,TUV,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

The pioneer of environmental protection--An ideal waste solution supplier



19 years good reputation coconut chaff bagging machine wood shavings press machine



1.Product introduction:

  • Adopting PLC control system, hydraulically driven, horizontal bagging, bales are produced at high speed and with high yields.
  • Simple to operate, easy to use and highly automated, using less labor, fed manually or automatically by conveyor.
  • Applicable to compress and bag sawdust, rice hull, cotton seeds shell, hay, peanut shell and other scraps.
  • Compress and bagging are finished by one time. Bales are easy to store, reducing transport cost.
  • Compressed materials are easy to remove , ideal for environmental building materials, plant fertilizer, animal material, etc.

2. Machine parameter:



Model

JPW-KT180

 Name

19 years good reputation coconut chaff bagging machine wood shavings press machine

Hydraulic power (Ton)

180
Bale size (L*W*H mm) 750*430*310

Feed opening size (L*W mm)

1200*700

Output (Ton/hr)

2.5-3

Package size (W*H mm)

740*1150

Machine size (L*W*H mm)

4250*3100*1700

Brand

 CSJ

Voltage (customizable) (V/HZ)

380V / 50HZ

Power (Kw/Hp)

22Kw/30Hp

Machine weight (KG)

4300


3.Brand Of Baler Parts:



Crucial Components Allocation

HYDRAULIC TECHNIQUE

REXROTH (Germany TECHNIQUE)

HYDRAULIC ELEMENTS

YUTIEN,HYDOR (TAIWAN Brand)

SEALING PARTS

HALLET (UK brand)

ELECTICAL ELEMENTS

DELIXI (Europe brand )

OIL PIPE

ZMTE (Europe brand)

MOTOR

JIABAO (Brand-specific Customized hydraulic motor, without junction axis ,lower noise, no maintenance and  energy saving, safe and reliable

PUMP

JINGGONG (Taiwan investment)

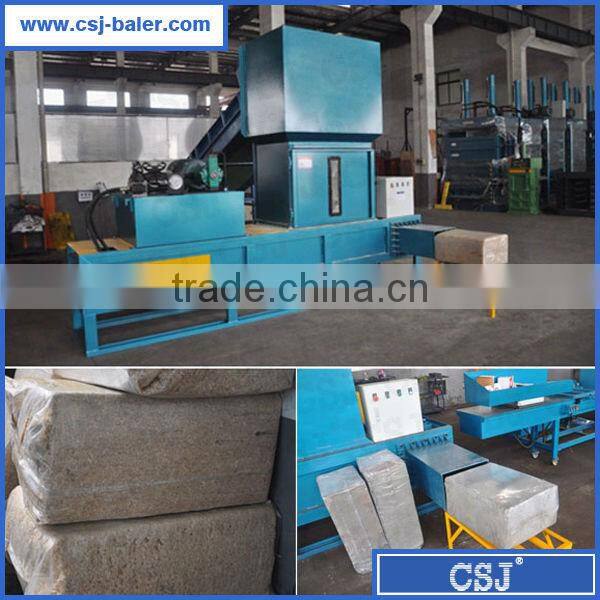

4.Details of machine photoes:
19 years good reputation coconut chaff bagging machine wood shavings press machine19 years good reputation coconut chaff bagging machine wood shavings press machine



5.Models for options:



Model

Hydraulic force(Ton)

Block size(L*W*H mm)

Feed opening size(L*H mm)

Capacity (T/H)

Voltage (customizable) (V/Hz)

Power (Kw/Hp)

Machine size (L*W*H mm)

Machine weight (kg)

Package size (W*H mm)

JPW-KT90

40/50

750*430*310

1000*700

1.5-1.8

380V/50HZ

11kw/15hp

3920*2880*1700

2400

740*1150

JPW-KT110

50/60

750*430*310

1000*700

2-2.5

380V/50HZ

15kw/20hp

3920*2900*1700

2700

740*1150

JPW-KT140

60/80

750*430*310

1000*700

2.5-3

380V/50HZ

18.5kw/25hp

3920*2880*1700

3000

740*1150

JPW-KT180

80/100

750*430*310

1200*700

2.5-3

380V/50HZ

22kw/30hp

4250*3100*1700

4300

740*1150



6. Accessaries of complete equipment:





7.Certification:



19 years good reputation coconut chaff bagging machine wood shavings press machine



8.Production process:



19 years good reputation coconut chaff bagging machine wood shavings press machine

19 years good reputation coconut chaff bagging machine wood shavings press machine



9.Packing for shipment:



19 years good reputation coconut chaff bagging machine wood shavings press machine



10.In exhibition:





11.About us:



  • Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
  • We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
  • Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
  • Got CE ISO TUV SGS and so on Certifications
  • We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.

12.Our service:

  •  One year warranty for whole machine.
  •  Engineers available to service machinery overseas.
  •  24 hours technical support by e-mail.

13.Contact us:



Contact person: Alice Zhu

E-mail:jiabao801(@)

Website:

Cell: 0086-15821887659

Tel: 0086-021-61400508

Skype: csj-baler801

QQ: 2880619239

Add: Room 909, No.6 building, No.299 west Jiangchang Road, Shanghai China
