Puxin High Efficient/high Automatic/no Smell Food Waste Treatment System

Puxin high efficient/high automatic/no smell food waste treatment system

OR PUXIN High Efficiency Food Waste Anaerobic Treatment System

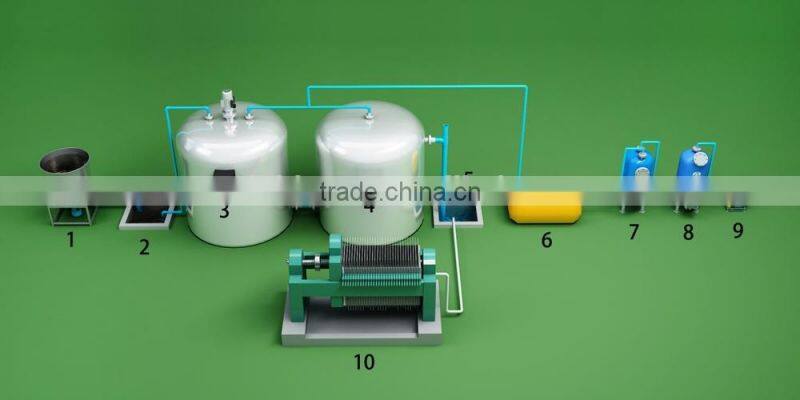

1.food waste shredder, 2.material collecting tank, 3.first stage anaerobic reactor, 4.second stage anaerobic reactor, 5. sludge storage tank, 6. biogas storage bag, 7. desulphurization device, 8 dehydration device, 9.biogas pump, 10.sludge pressure filter

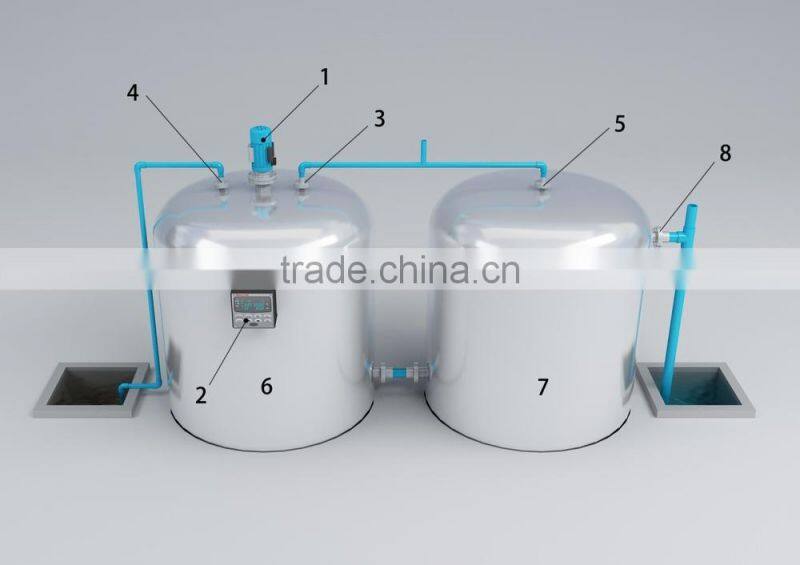

1. mechanic stirring device , 2. automatic controlling device , 3,5 .gas outlet, 4. inlet, 6. first stage anaerobic reactor 7. second stage anaerobic reactor, 8.outlet

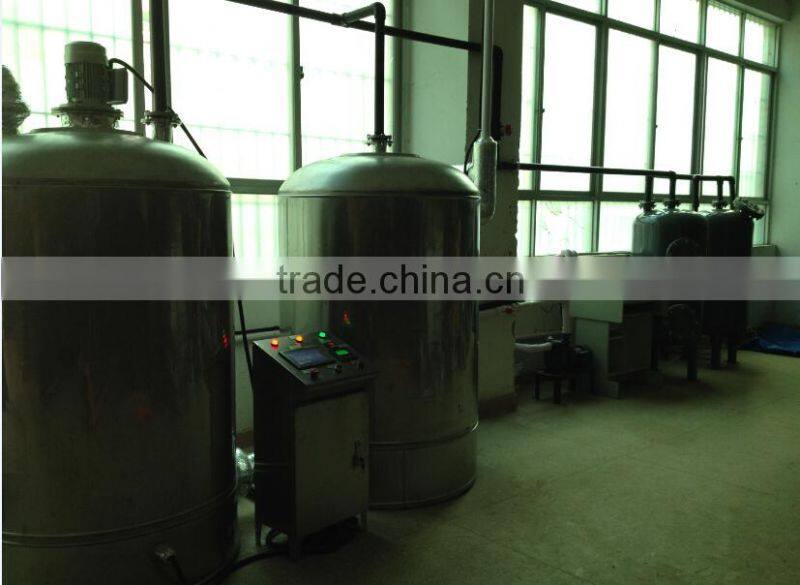

Photo No. (1)

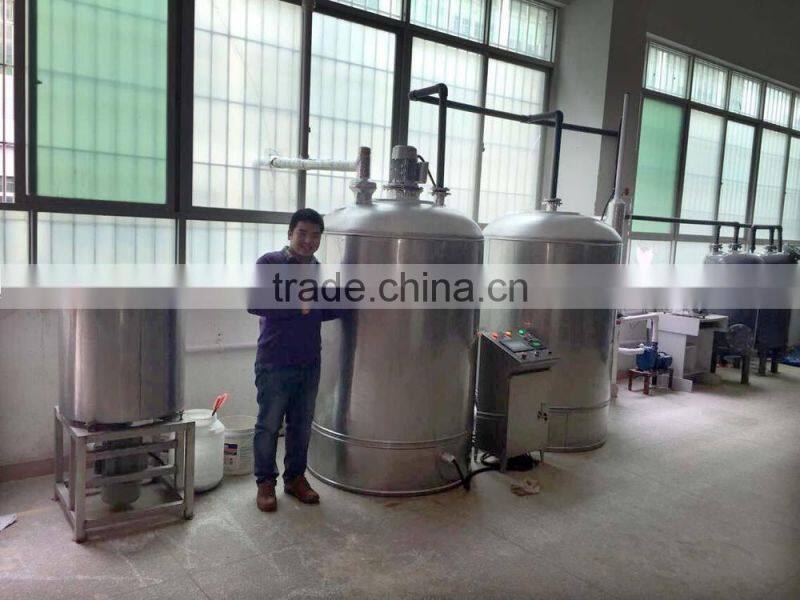

Photo No. (2)

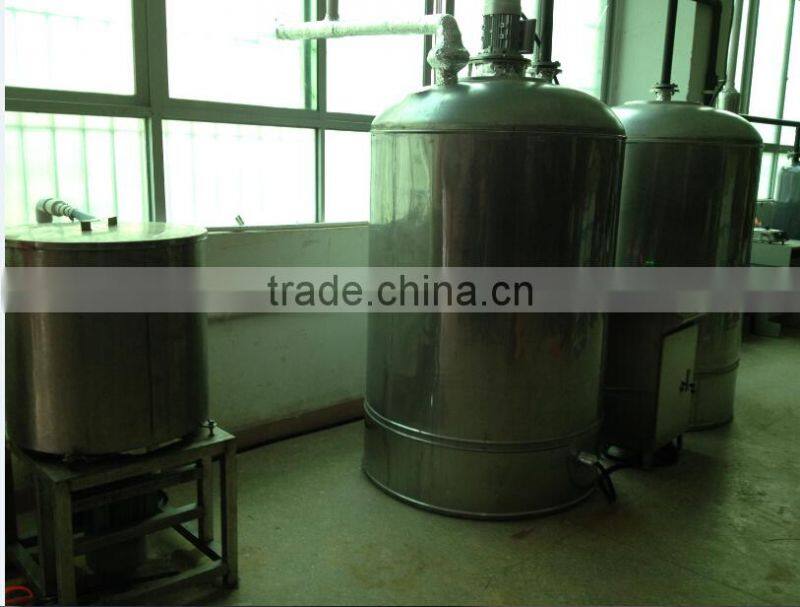

Photo No. (3)

This product is designed to treat kitchen wastes for restaurants, hotels or residential areas. It is also suitable for food processing plants and supermarkets to treat food wastes

The product is composed mainly of a food waste shredder, a material collecting tank, a first stage anaerobic reactor, a second stage anaerobic reactor, a sludge storage tank, a biogas storage bag, a desulphurization device, a dehydration device, a biogas pump and the biogas appliance.

The anaerobic reactor is constructed of double layer of stainless steel plates with 5cm thick foam insulation layer installed between, and it has the an electric heater, a temperature controlling device,a PH value controlling system and a mechanic stirring device installed.

The anaerobic reactor can work at constant temperature set such as 55C or 35C

The volume of a single anaerobic reactor is 1-6m3.
