Ozone Equipments for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Water Ozonizer Ozone Generator for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
-
Ozone Water Equipment for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
-
Ozone Generator Air and Water Equipment for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
-
Ozone Air Purifier for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
-
Ozone Sterilizer for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
-
Ozone Water Purifier for Agriculture/water Treatment/aquarium/drinking Water/food Processing/air
Product Details
| Place of Origin | Guangdong, China | Brand Name | oZocenter | |
| Model Number | ozone equipment CH-WZQ |
carton case with foam to protect the ozone equipments
Product Description
Specifications
ozone equipment for agriculture/water treatment/aquarium/drinking water/food processing/air/swimmingozone output:10-50g/h

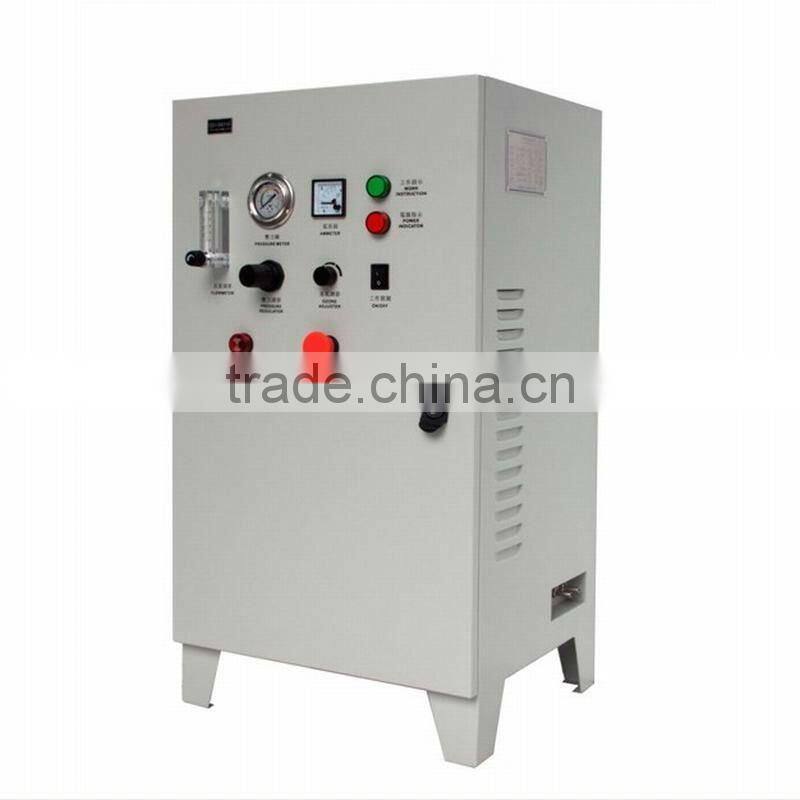

Features of CH-WZQ:
1. Carbon Steel Sprayed cabinet
2. Install with CH~PC10~60g/hr enamel ozone generator tube, Water cooled for internal &external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration.
3. Adjustable ozone output, Use high~frequency & Intelligent power supply inverse system, ozone outpt can be changed on demand to achieve accuracy control.
4. Feed air ambient or Feed external oxygen source (oxygen cylinder)
5. High ozone concentration is more 90mg/L
6. Easy operate for system, it can add ORP on control for water PH
7. Easy to maintain and assemble, easy
8.Control Panel: Ozone output adjuster, Flow meter, ORP (Choose), Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light, Alarm
Application:
1. Industrial waste water treatment
2. Swimming pool water, SPA water, hot tub
3. Aquaculture, marine and aquarium
4. Drinking water, Bottle water treatment
5. Food processing
6. Indoor air control, air purify, etc
Specification:
Item | Unit | CH-WZQ | ||||
10G | 20G | 30G | 40G | 50G | ||
Oxygen flow rate | LPM | 1~3 | 2~7 | 3~10 | 5~10 | 8~18 |
Ozone concentration | Mg/L | 69~88 | 52~104 | 56~93 | 85~116 | 60~90 |
Ozone output | G/Hr | 5~12 | 12~22 | 16~33 | 34~51 | 43~64 |
Power | W | 220 | 250 | 400 | 510 | 1300 |
Fuse | A | 3 | 3 | 3 | 5 | 6 |
Cooling water flow rate | LPM | 30 | 48 | |||
Size | mm | 460×390×840 | ||||
Noted: 1. Above ozone capacity were tested under oxygen source, it must connect with outside oxygen/air source.
2. Net weight will be 10% different for different plug.
Welcome to contact me for price and catalogue!!! Welcome inquiry!!
