high concentration 3L 5L 7L 15L PSA oxygen concentrator price
CH-OX series oxygen generators use the characteristic of special molecular sieve to separate the oxygen from the air and remove harmful substance for high purity industrial oxygen product by thetechnology of pressure swing adsorption(PSA).
Feature:
1.Patented products
CH-OX series molecular sieve is an air separation plant which has already obtained domestic patent.
2.Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3.Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4.The oxygen output is stable and continuously
5.Low-pressure
oxygenproduction working pressure 1.5-2 Bar.
high concentration 3L 5L 7L 15L PSA oxygen concentrator price

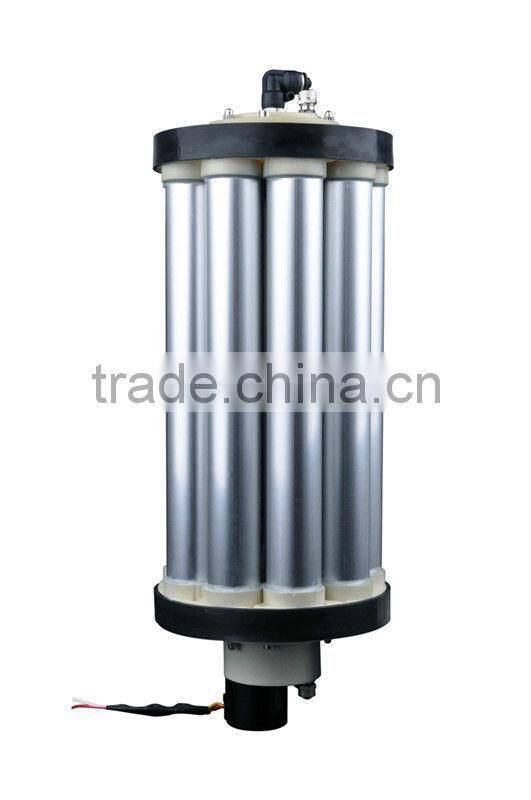

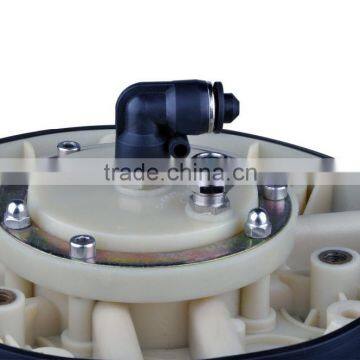

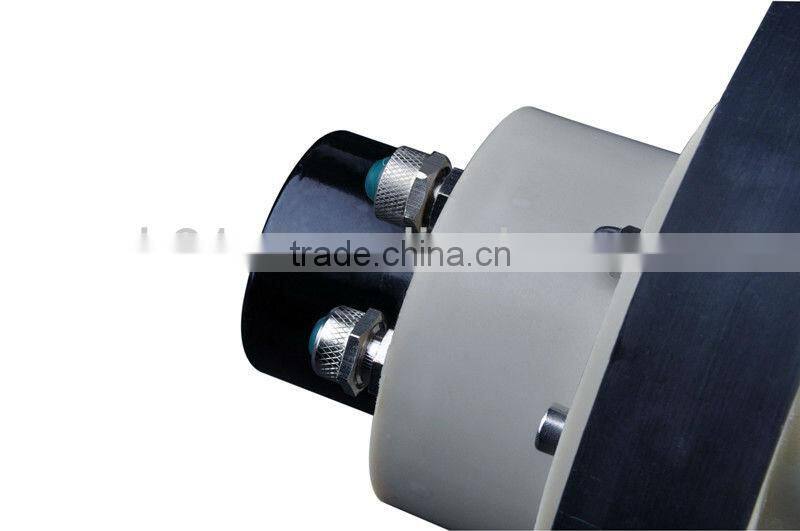

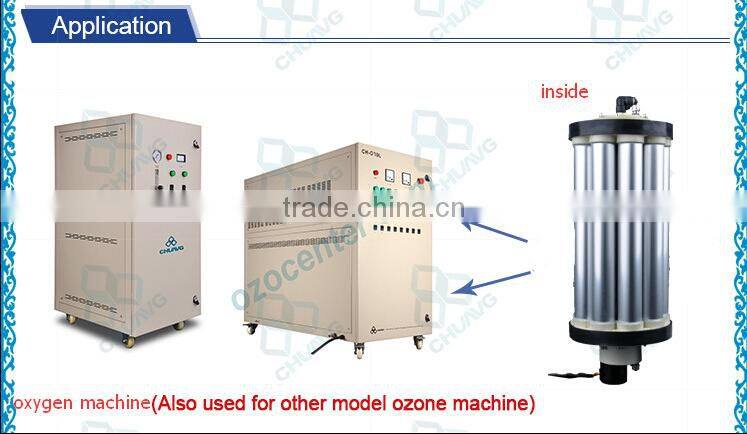

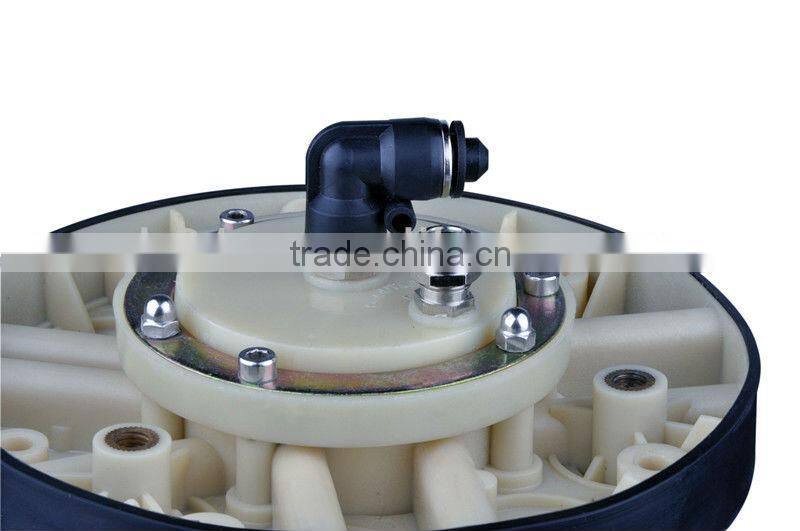

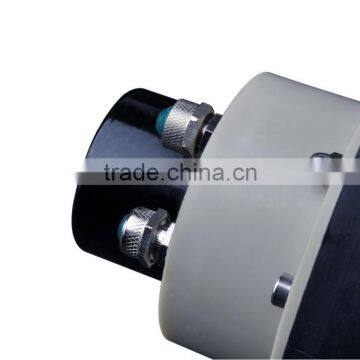

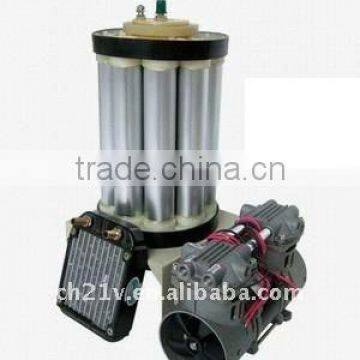

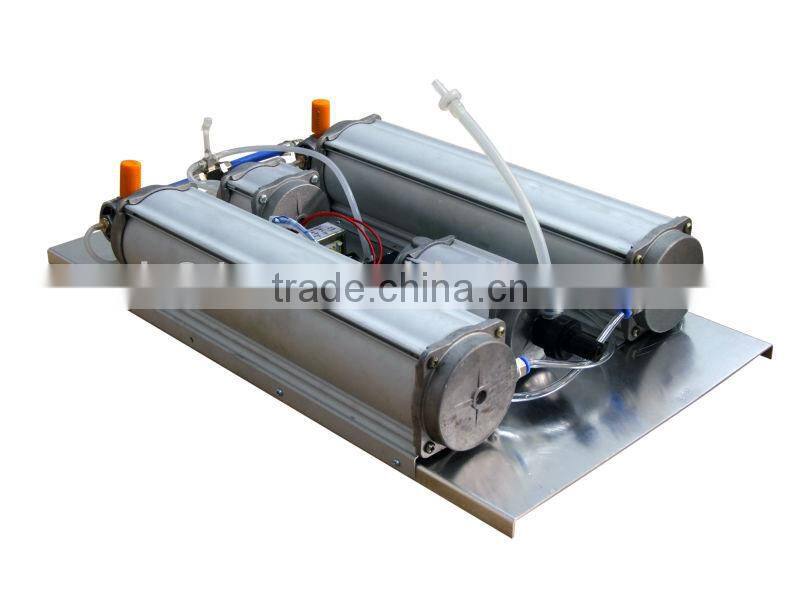

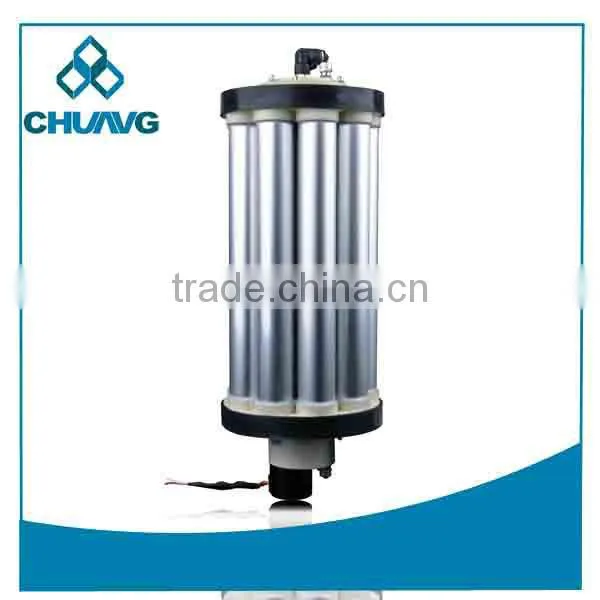

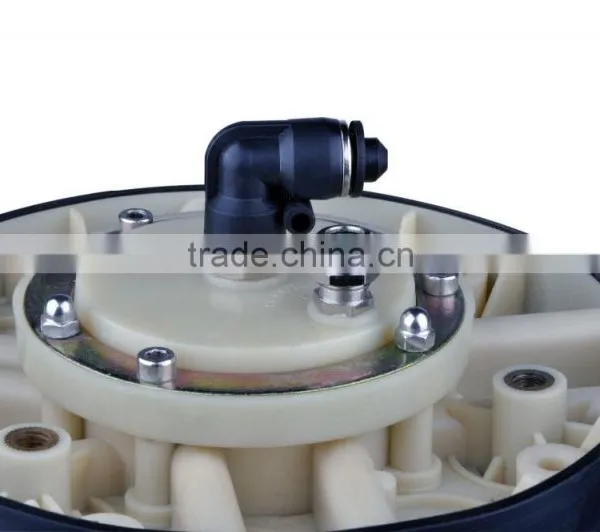

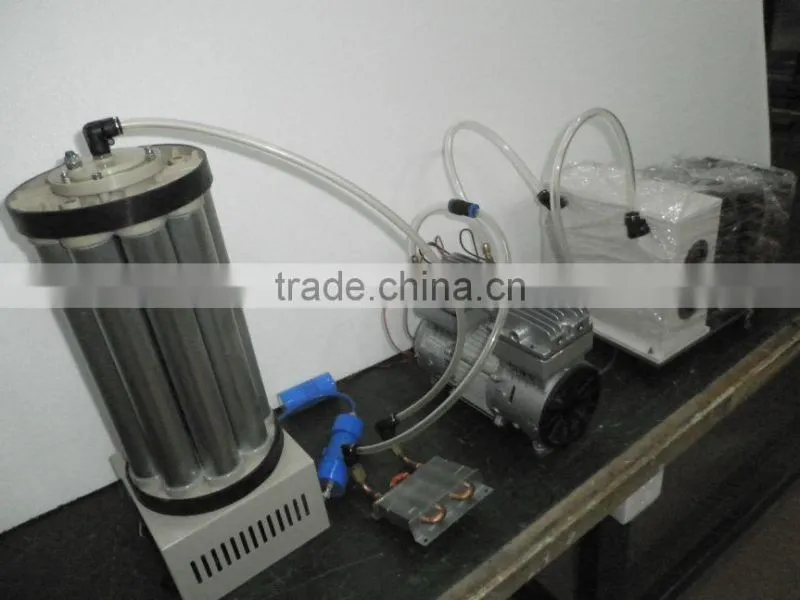

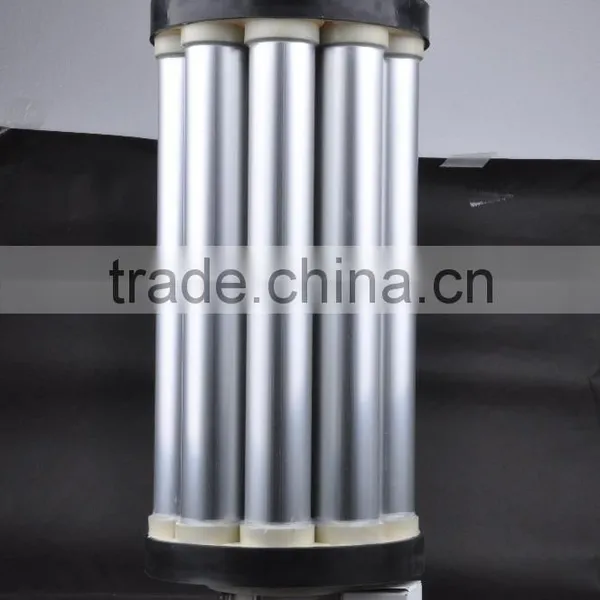

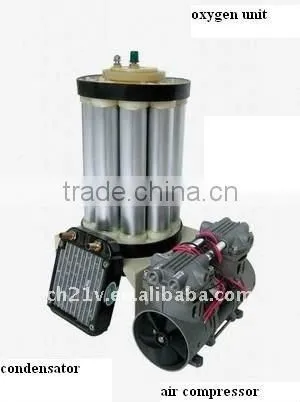

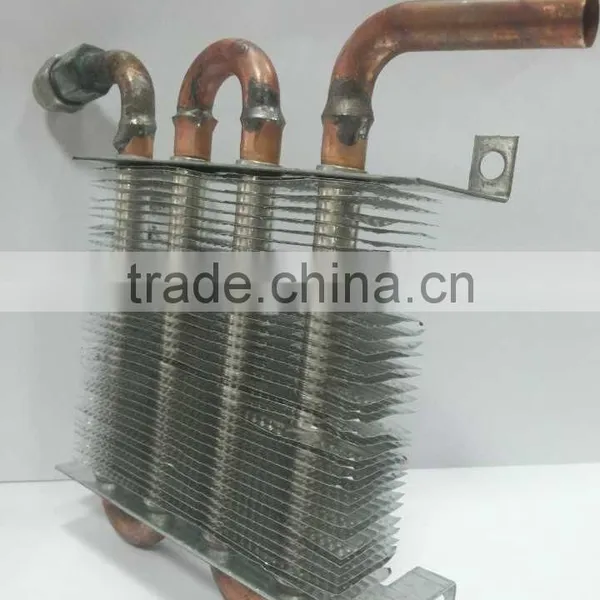

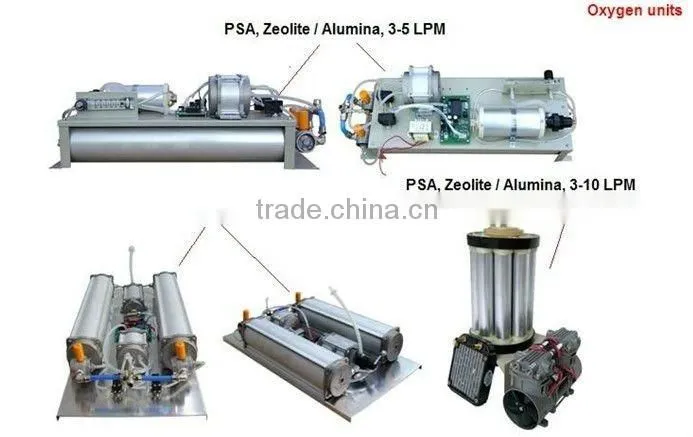

Pictures of goods:
High Efficiency -Specifications
Item | Unit | CHOX3AL | CHOX5AL | CHOX7AL | CHOX10AL | CHOX15AL |
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 150-200 | 180L/Min |
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
Temperature | °C | indoor temperature | ||||
Relative humidity | % | ≤ 70%±10% | ||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Dimension | mm | 200×310 | 200×430 | 200×500 | 200×560 | 200×880 |
Net weight | kg | 15.70 | 18.30 | 19.30 | 30.60 | 32.5 |
Related Products:
110V/220V high oxygen concentration 3L 5L 7L 15L oxygen concentrator price

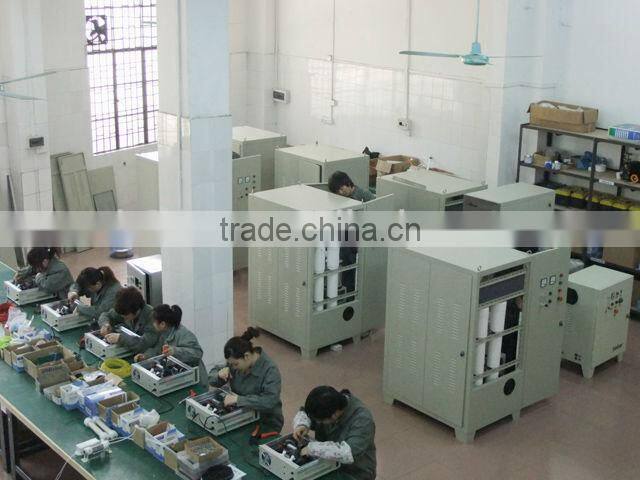

Company & workshop:
