Specifications
Protein skimmer for aquarium, aquaculture and fish farm1.no power
2.long life
3.cheap and good
4.mixing ozone
Protein skimmer for aquarium, aquaculture and fish farm

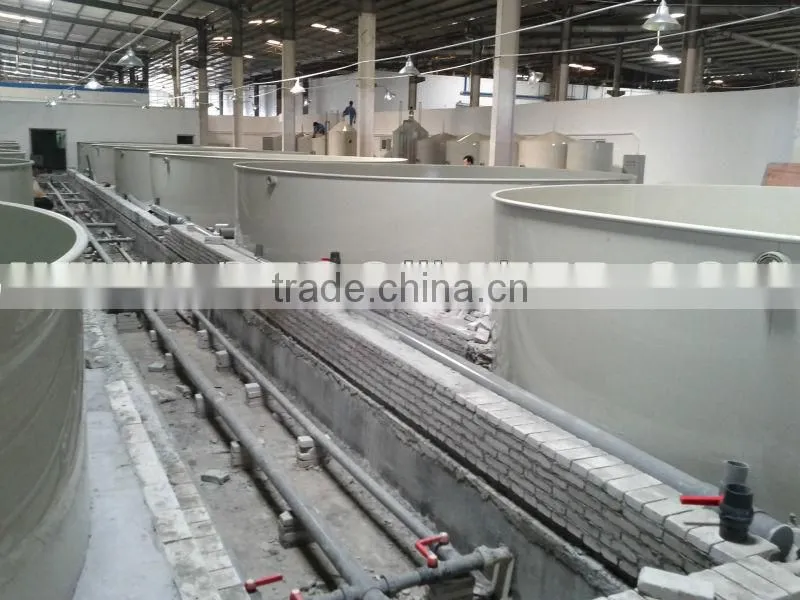

Fresh water & Seafood cultivating factory
Fresh water & Seawater hatcheries

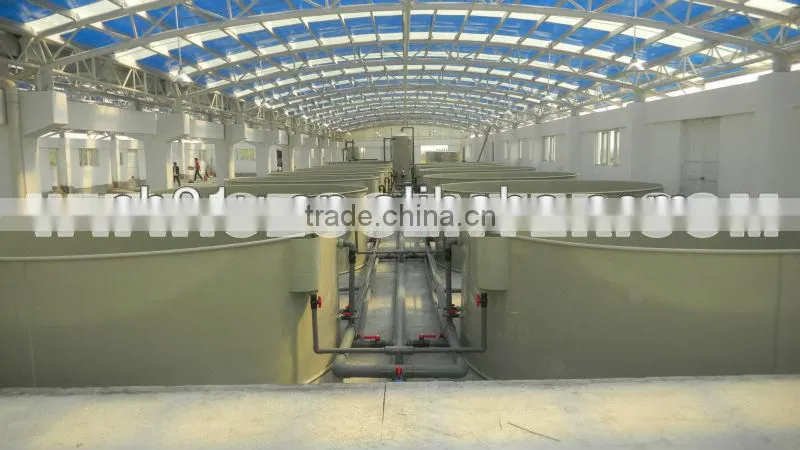

Oceanopolis, aquarium ,aquaculture ,fishing farm etc
Swimming pool water treatment
Sewage water treatment
Domestic watet treatment
Ozone Generator
Features
1. Housing: Carbon steel sprayed with Plastic, which is good for water proof.
2. Installed with CH-PC10-50g/hr enamel ozone generator tube, Water cooled for internal &external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration.
3. Adjustable ozone output, Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
4. Feed external oxygen source (oxygen cylinder, oxygen concentrator, liquid oxygen storage)
5. High ozone concentration is more 90mg/L
6. Easy to maintain and assemble
7. Control Panel: Gas flow meter ,Voltage meter ,Current meter ,Work instruction ,Power indication ,On/Off ,Ozone output adjuster ,Pressure regulator ,Trouble alarm, Emergency stop device .
Specifications
Item |
Unit |
CH-WZQ 50G |
CH-WZQ 30G |
CH-WZQ 20G |
CH-WZQ 10G |
Flow rate of oxygen supply |
L/Min |
6-15 |
3-6 |
3-10 |
1-4 |
Ozone concentration |
Mg/L |
115-65 |
120-94 |
104-51 |
100-66 |
Ozone output |
g/hr |
41.40-58.50 |
21.6-33.84 |
18.72-30.60 |
6-15.80 |
Power |
KW |
0.5 |
0.5 |
0.3 |
0.13 |
Frequency |
KHZ |
5 |
5 |
6 |
6 |
High voltage output |
V |
PP3600V |
|||
Power amplification |
A/V |
IGBT 50A/600V |
|||
Way of cooling |
Water cooled for internal & external electrodes |
||||
Cooling water flow rate |
L/Min |
6 |
5 |
4 |
4 |
Cooling water temperature |
°C |
30 |
|||
Adjustable (Variable control) |
% |
0-100 |
|||
Power supply |
V/HZ |
220v/110v 50/60HZ |
|||
Dimension |
mm |
460*385*840 |
|||

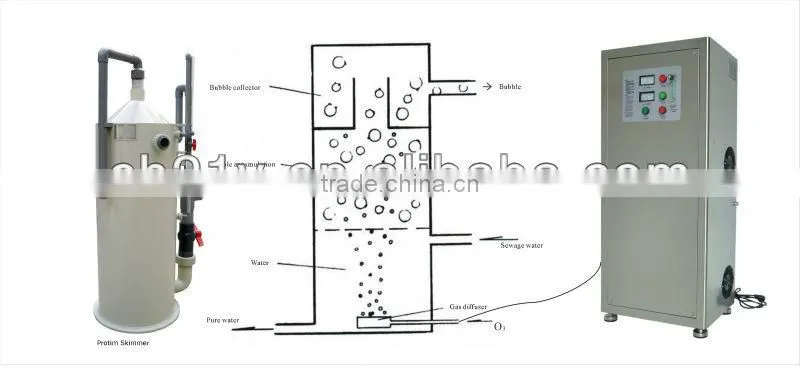

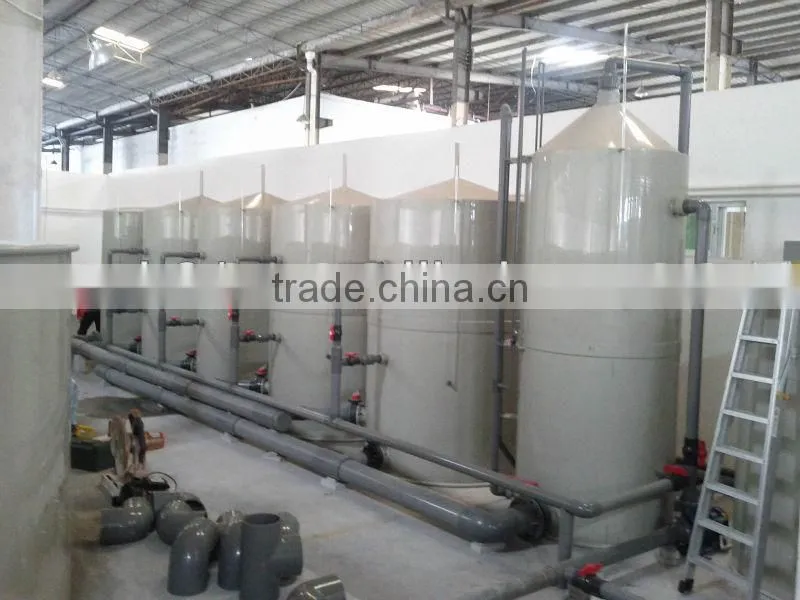

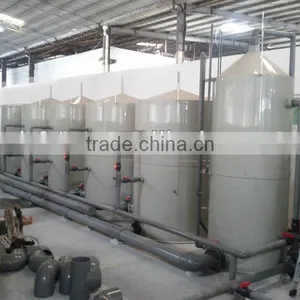

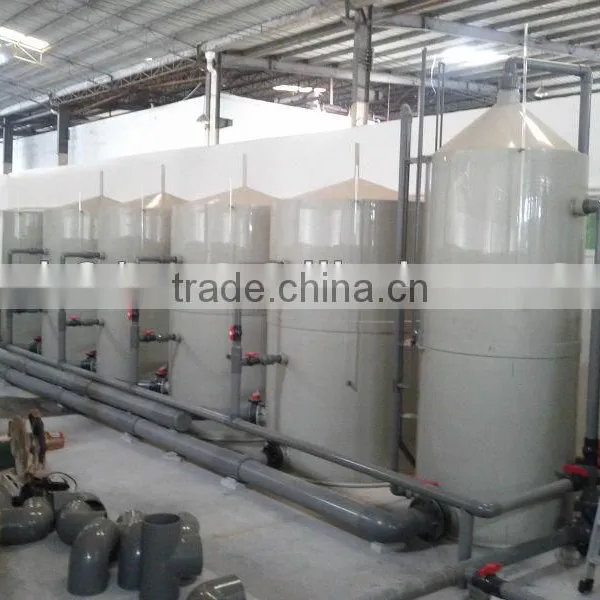

Protein Skimmer
Features
Instead the using of Venturi, Booster pump, low power for saving energy.
Using the collecting pipe, no need to clean, for saving water.
PDO air intake device produces abundance air bubble, for high separate efficiency.
Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
Trouble-free design, long service life but free maintenance.
Functions
Removing organism such as night soil, colloid etc, for reducing the load of biological treatment and ensuring the water quality.
Increasing the dissolved oxygen in water, for improving the biological treatment efficiency.
Removing the harmful air in water, stabilize the PH in water.
Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
Specifications
Model |
Water flow rate |
Size |
CH-FPS-10 |
10 M3/Hr |
Diameter450×H1550 mm |
CH- FPS -15 |
15 M3/Hr |
Diameter520×H1800 mm |
CH- FPS -20 |
20 M3/Hr |
Diameter620×1800 mm |
CH- FPS -30 |
30 M3/Hr |
Diameter700×H2100 mm |
CH- FPS -40 |
40 M3/Hr |
Diameter700×H2400 mm |
CH FPS -60 |
60 M3/Hr |
Diameter850×H2400 mm |
CH- FPS -80 |
80 M3/Hr |
Diameter920×H3000 mm |
CH- FPS -100 |
100 M3/Hr |
Diameter1050×H3000 mm |
CH- FPS -150 |
150 M3/Hr |
Diameter1250×H3100 mm |
CH- FPS -160 |
160 M3/Hr |
Diameter1300×H3100 mm |
CH- FPS -200 |
200 M3/Hr |
Diameter1350×H3500 mm |
