Specifications
1.Air Cooling2. Adjustable ozone output
3.with built-in oxygen system
4.long life time
5.10-50g/hr

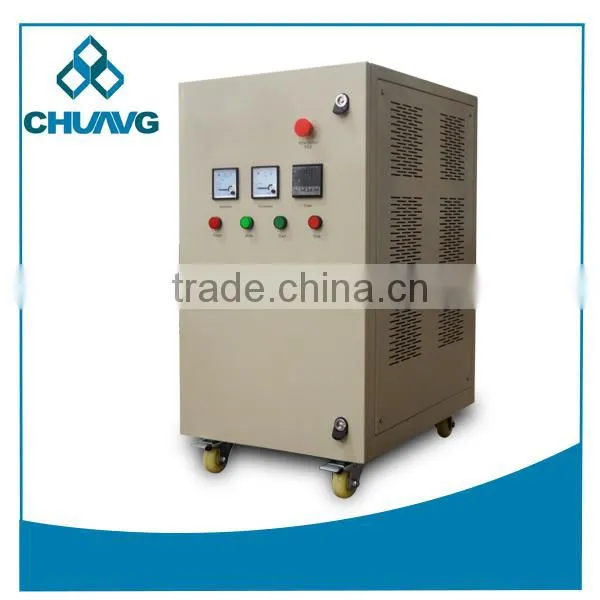

Air Cooling and Adjustable ozone output Ozone Generator
Air Cooling and Adjustable ozone output Ozone Generator
Specifications
Item |
Unit |
CH-YF5G |
CH-YF10G |
CH-YF15G |
CH-YF20G |
CH-YF30G |
CH-YF40G |
Oxygen flow rate |
LPM |
3 |
3.5 |
5 |
8 |
10 |
15 |
Ozone concentration |
Mg/L |
48.5~52.3 |
48.5~52.3 |
49.5~51.2 |
38.9~41.7 |
53.2~56.1 |
43~45.2 |
Ozone output |
G/Hr |
5 |
10~11 |
14.8~15.4 |
18.6~20 |
32~34 |
40 |
Power |
Kw |
≤0.48 |
≤0.81 |
≤0.924 |
≤1.00 |
≤1.23 |
≤2.64 |
Current |
A |
2.2 |
3.6 |
4.2 |
4.5~4.7 |
5.6±5% |
12 |
Voltage |
V |
220V/50HZ |
|||||
NW |
KG |
48.3 |
71 |
74 |
77 |
81.5 |
136.5 |
Size |
cm |
45x50x84 |
50×66×95 |
45*93*118 |
|||
>>Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
Air Cooling and Adjustable ozone output Ozone Generator
Operation Instruction
1.Before use this machine,put it in a stable flat place which can hold its
weight.
2.Use the power equipped with the machine;
3.The machine use for air purification,fisrtly attach the silicone tube into
>>the ozone outlet and then turn on the power;
4.Set the timer and then come out ozone, and put the tube into the room.
5.When use for room air purification, it requires nobody is present,
>>after 30 minutes people can walk into the room.
6.If use for water treatment, the air stone should be attached into the
>>silicone tube and put into the water.
7 .Attention, the machine should be placed higher than the water,in case
>>that the water refluex occur.
Air Cooling and Adjustable ozone output Ozone Generator
Applications:
1. Waste water treatment , Chemical oxidation ,sterilization
2. Swimming pool and SPA water sterilization and disinfection
3. Domestic water sterilizer for housing estate
4. Aquaculture and aquarium water sterilization
5. Space air purification ,sterilizing room
6. Ozonated water for sterilization and disinfection ( sea food processing ,washing
>>beverage bottle and Barrel, washing floor )
7. Beverage and Drinking water disinfection
9.Decompose chemical residual from vegetable and fruit ,Eliminate bacteria and
>>virus for agriculture products tokeep fresh ,use for food processing, cold storage .
QUALITY CONTROL
Every procedure has personnel inspection. All the products must be
>>tested and qualified before packaging.
Air Cooling and Adjustable ozone output Ozone Generator
AFTER SERVICE
We provide 12month free maintenance.The buyer should return theproduct in the original conditions
>>to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer
>>should also pay for the costs of the parts to be replaced.
ABOUT US
what we do?
>>We Provide high-quality ozone generator for : Ozone generator wholesalers
>>Retailers and oneline shops (Ebay, Amazon...) OEM-The custom-made ozone
>>generator are available. Upon customer's idea, drawings, photos etc.
>>ODM-The modification of the ozone generator after customer's selection is accepted.
Excellent after-sales service:
>>1 year warranty again the manufacture defect, offer life time consultation on
>>problems occurred.2M silicone tube and 2PCS air stone gift for any ozone machine
>>order.Report on the making process.Marketing feedbacks tracing.
Why choosing us?·
>>Having 7 years production experienced .We are trusty business partner.·
>>Quality Controlled:Quality Control personnel check the quality at every stage of
>>production, from the incoming raw materials to the finished product. ·
>>CH-T Production Capacity: 3000 pcs per month. ·
>>We have serial products: ozone tube ,UV water sterilizers, ozone generators,
>>oxygen concentrators, protein skimmers, and filters, mixing pumps and other water
>>or air treatment spare parts.·
>>We supply OEM service according to customers' requests and give out professional
>>suggestions. Distributors Offer : Welcome to be our distributor
