10-50g/h Complete Ozone Generator Water Treatment For Sugar Factory
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
10~60G Ozone Generator for Drinking Water Purification
-
5-30G/H High Concentration Ozone Water Treatment Machine / Water Ozonator
-
2013 New Large Ozone Generator for Water Treatment
-
2013 Hot Sale Water Cooling Feed Outside Oxygen Source Ozone Generator
-
High Quality Environment And Waste Water Treatment Equipment
-
Top Sell Air Cooling Complete Adjustable Industry Ozone Machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | ozocenter | |
| Model Number | CH-Y |
Wooden case
Product Description
Specifications
10-50g/h Complete Ozone Generator Water Treatment For Sugar Factory1.built-in oxygen system
2.water cooling enamel ozone tube
10-50g/h Complete Ozone Generator Water Treatment For Sugar Factory
Features:
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

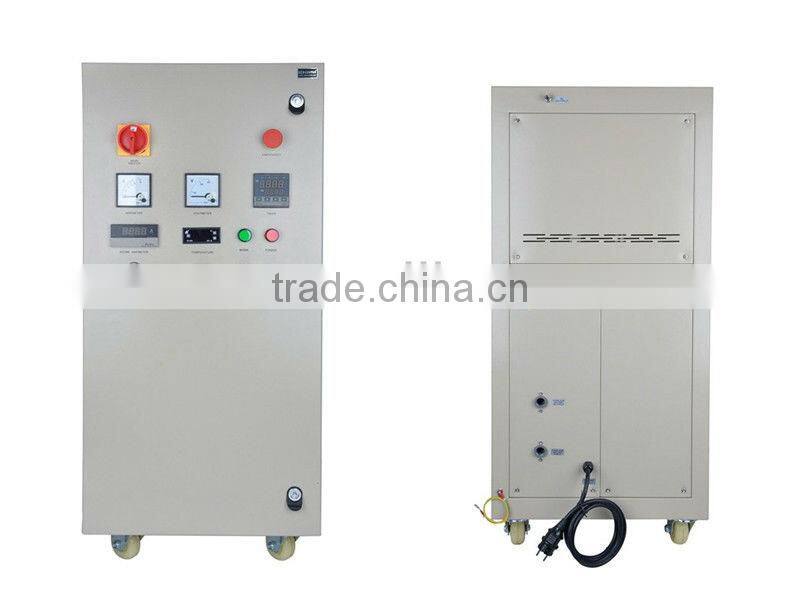

Control panel:
Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
Specifications
Item | Unit | CH-Y10G | CH-Y20G | CH-Y30G | CH-Y40G | CH-Y50G |
Oxygen flow rate | LPM | 1~3 | 2~6 | 3~10 | 5~15 | 8~18 |
Ozone concentration | Mg/L | 58~88 | 57~88.6 | 87.5~56.8 | 90~56 | 90~60 |
Ozone output | G/Hr | 5~10 | 11~21 | 16~34 | 27~50 | 43~64 |
Power | Kw | ≤0.96 | ≤0.98 | ≤1.43 | ≤1.62 | ≤1.85 |
Fuse | A | 13 | 13 | 15 | 15 | 20 |
Cooling water flow | LPM | 30 | 48 | |||
NW | KG | 105 | 105 | 166 | 170 | 175 |
Size | mm | 500×830×1110 | 650×1030×1230 | |||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug





Why choosing us?
· Having 7 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· NT-BT Production Capacity: 3000 pcs per month.
· We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor
Trade terms:
1.Lead Time :3-25 Working days,depend on the order quantity.
2.Delivery Ways:DHL,FEDEX door to door service or others.
3.MOQ:1 Set
Shipping:



Company & workshop:
Company Profile
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd., located in Guangzhou City, Guangdong Province, is a professional ozone generator manufacturer specializing in R & D, design, manufacture and processing of ozone products & spare parts. We also provide professional service with consultation in type selection, reliable and economic recommendation and after-sales service. The main products of the company are CH-KTB, CH-BT, CH-BT and CH-KTA series of Portable ozone Generators with the brand of "oZocenter". CH-PTF, CH-PT series of Ceramic Ozone Generators and CH-PC series enamel ozone tube, which have already obtained domestic patents. The products of our company are widely used for water treatment, chemical oxidation, food processing industry, and pharmaceutical industry etc. Our series products, which seek for greater perfection and for the quality goal of excellence, is special reflected in the CH-KTB, CH-BT, CH-KTA, CH-PTF, CH-PT & CH-PC series products. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new requirements. Chuanghuan will become your close partner and friend with its good reputation and professional skills.
