Specifications
air purifier1different plug
2.with built-in oxygen system
3.high frequency electric board
pact assembly, long time
new style durable ozone generator ionizer air purifier
new style durable ozone generator ionizer air purifier
DESCRIPTION
WE ARE THE OZONE GENERATOR BEST SUPPLIER IN CHINA!

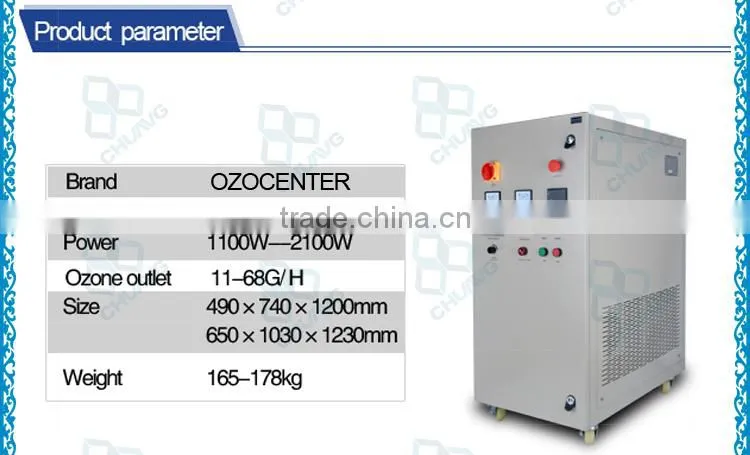

Specification
Item |
Unit |
CH-Y10G |
CH-Y20G |
CH-Y30G |
CH-Y40G |
CH-Y50G |
Oxygen flow rate |
LPM |
1~3 |
2~6 |
3~10 |
5~15 |
8~18 |
Ozone concentration |
Mg/L |
58~88 |
57~88.6 |
87.5~56.8 |
90~56 |
90~60 |
Ozone output |
G/Hr |
5~10 |
11~21 |
16~34 |
27~50 |
43~64 |
Power |
Kw |
≤0.96 |
≤0.98 |
≤1.43 |
≤1.62 |
≤1.85 |
Fuse |
A |
13 |
13 |
15 |
15 |
20 |
Cooling water flow |
LPM |
30 |
48 |
|||
NW |
KG |
105 |
105 |
166 |
170 |
175 |
Size |
mm |
500×830×1110 |
650×1030×1230 |
|||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
new style durable ozone generator ionizer air purifier
Applications:
>>Drinking water treatment, Spring water treatment ozone generator, Drinking water bottle disinfection equipment, Pool water treatment ozone generator, Industrial water treatment, >>Water treatment complete machine, Chemical oxidation, Decolor and bleach ozone machine, >>Medical water sterilization and disinfection, Food water treatment, Workshop purify,
>>Air conditioner ozone generator, Sterile workshop disinfection equipment, Sterile workshop purifier, Waste gas treatment ozone generator, Waste smoke treatment ozone generator, >>Environmental control equipment, Indoor air control ozone generator, Pharmaceutical factory air purifier
Functions:
>>Laboratory: chemical oxidation for raw material of flavors and fragrances, small water treatment experiment
>>Beverage process industry: such as pure water, spring water and any other water sterilization and disinfection
>>Fruits & vegetables process industry: such us keep fresh, storage etc
>>Food process industry: water, workshop, sterile room, equipments, tools
>>Pharmaceutical industry: water, air conditioner, workshop, dressing room, sterile room etc
new style durable ozone generator ionizer air purifier
Ozone Generator
1.Good diffusivity: Ozone gas can reach to everywhere without dead angle.
2.Strong sterilization ability: Ozone sterilization ability is the same with
peroxyacetic acid (C2H403),which is stronger than regular disinfectant.
3.Convenient raw material: Ozone use oxygen gas as raw material, which we
can get from air ambient.
4.Eco-friendly: Ozone can be resolved into oxygen and oxygen atoms, so without
secondary pollution.
UV Sterilizer
1.Weak penetrability, which makes the disinfection effect very weak if the UV
radiation can’t reach.
2.Shorter life time: the sterilization ability decrease along with using time. And
short life time 8,000~12,000 hours (China) with higher repair cost, but ozone with
20,000 hours.
3.Harmful for health: UV light is electromagnetic radiation with a wave length of 328~210nm,this could make microorganism die of losing DNA transformation ability.
If UV directly onto people, it will cause skin, eyes problem, even cause skin cancer.
new style durable ozone generator ionizer air purifier
♦Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
♦Does the ozone generator work efficently ?
Undeniably,ozone can sterilize and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
new style durable ozone generator ionizer air purifier
QUALITY CONTROL
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
new style durable ozone generator ionizer air purifier
ABOUT US
What we do?
1.We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and oneline shops (Ebay, Amazon...)
2.OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
>>1 year warranty again the manufacture defect, offer life time consultation on
problems occurred.
>>Report on the making process.Marketing feedbacks tracing.
Why choosing us?
1.Having 7 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage
of production, from the incoming raw materials to the finished product.
3.CH-Y Production Capacity: 3000 pcs per month.
4.We have serial products: ozone tube ,UV water sterilizers, ozone generators,
oxygen concentrators, protein skimmers, and filters, mixing pumps and other water
or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor.
