New 30G Air Cooling Corona Discharge Ozone Generator Tube / Ozone Plate
- Guangzhou/Shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
1G Air Cooling Corona Discharge Ozone Generator Ceramic Plate
-
ISO Certification Wholesale 3G 7G Ceramic Ozone Generator Tube
-
Water Cooling Ozone Corona Discharge Tube Adjustable Ceramic Ozone Generator Tubes
-
Air and Water Cooling Ozone Generator Tube Water and Air Purifier Project
-
Manufacturers 1g 3g 7g Ozone Generator Tube / Ozone Generator Kits
-
China Wholesale Ozone Reactor / Ozone Generator Cell
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ozocenter | |
| Model Number | CH-PT |
Carton case with foam to protect the products
Product Description

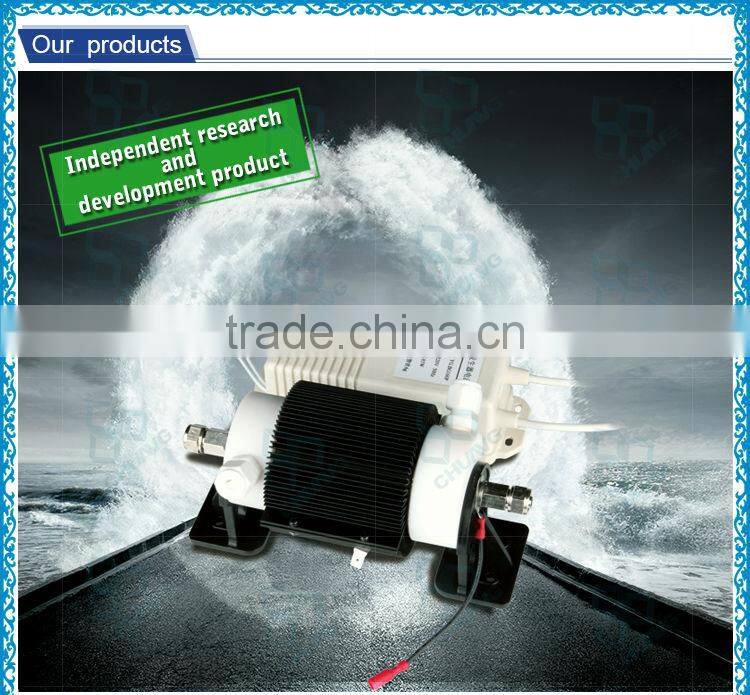

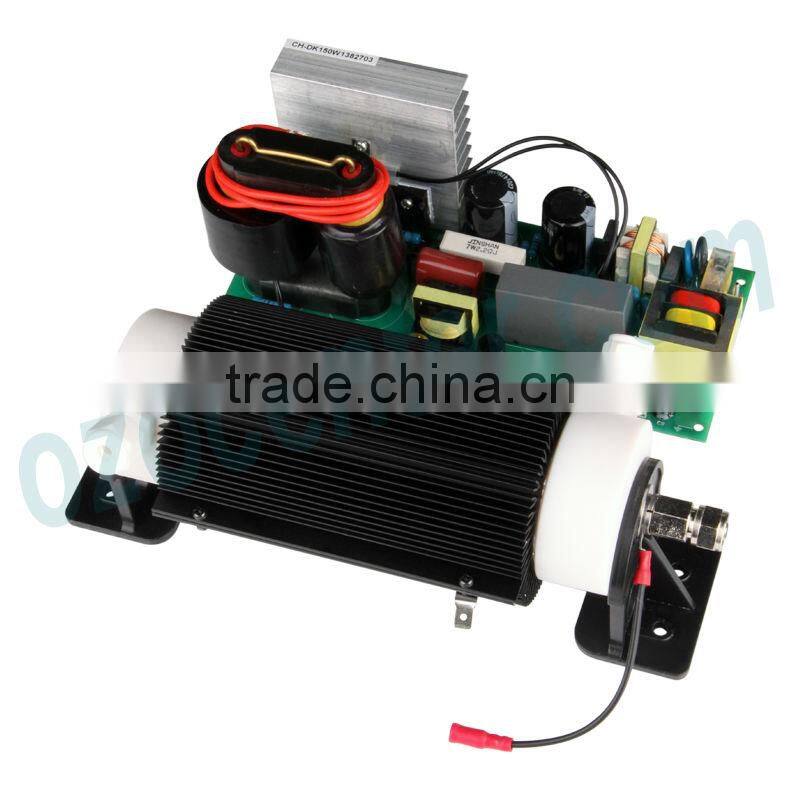

New 30G air cooling corona discharge ozone generator tube / ozone plate
CH-PT
Features of ozone generator parts CH-PT Series:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~60 mg/L, which is much higher than conventional products.
2. product which got domestic patent in 2008.
A. The internal electrode cooled by water, external electrode cooled by air (fan).
B. The aluminum plate looks like sun flower which has larger cooling area, easy for heat
dissipation.
C. Thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
5. Easy to maintain and install
6. Quality materials

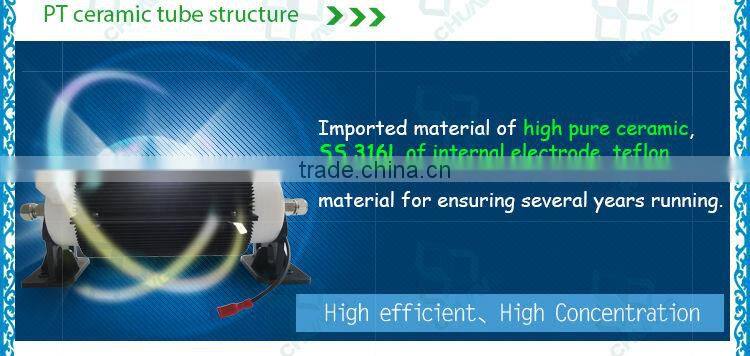

Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Specifications:
CH-PT 7-50G/Hr
Item | Unit | CH-PT | ||||
7GM | 7GA | 15GA | 30GA | 50GA | ||
Ambient temperature | ℃ | 28 | 21.9 | 22 | 26 | |
Ambient humidity | % | 37 | 39 | 38 | 44 | |
Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
Current +_10% | A | 0.45 | 0.86 | 1.4 | 1.9 | |

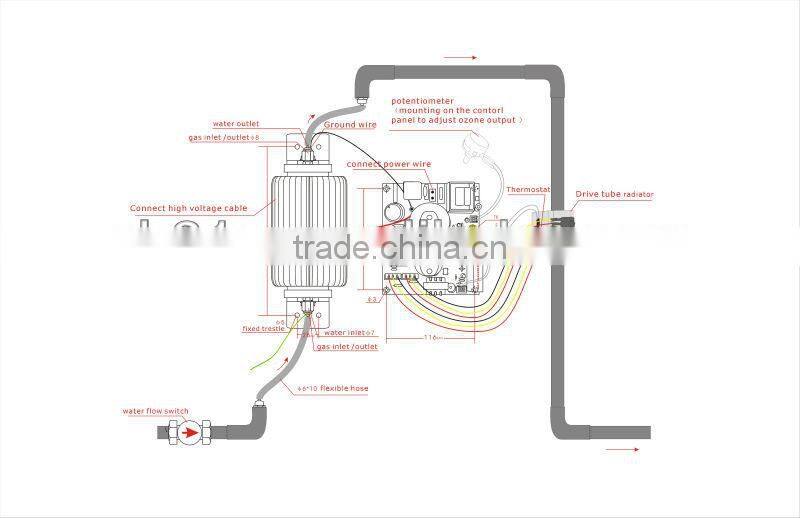

Cooling way |
| Air cooling for external electrode,water cooling for internal electrode | ||||
Cooling water flow rate | LPM | >2 | ||||
Diameter of cooling water pipe | mm | ED10 | ||||
Temperature of cooling water | ℃ | Ambient temperature ±8℃ | ||||
Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
Diameter of Gas inlet/outlet | mm | ED6 | ED6 | ED6 | ED8 | ED8 |
Ozone output adjust range | % | / | 20-100 | 20-100 | ||
Line power supply | V/Hz | 110/60 220/50 | ||||
Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 300×140×150 | 325×140×150 | |
Power supply dimensions | mm | 177×66×53 | 201×86×83 | 125×100×95 | 210×146×60 | 210×146×60 |
weight of power supply | KG | 0.73 | 0.66 | 1.0 | 0.62+2 | 0.62+2 |
weight of ozone tube | KG | 1.12 | 1.38 | 3.76 | 4.2 | |

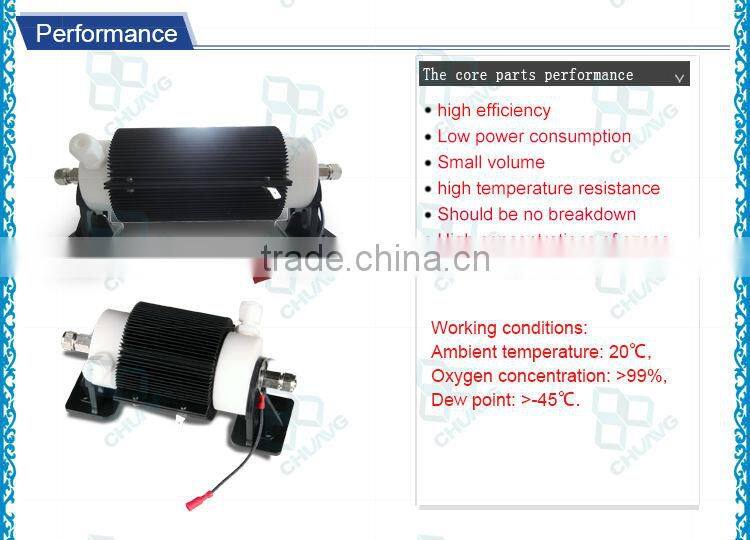

Working conditions:
Ambient temperature:20°C,
Oxygen concentration: >99%,
Dew point:>-45C,
cooling water output temperature: 20°C.
