New arrival corona discharge ozone generator ceramic plate
CH-PTF
Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.

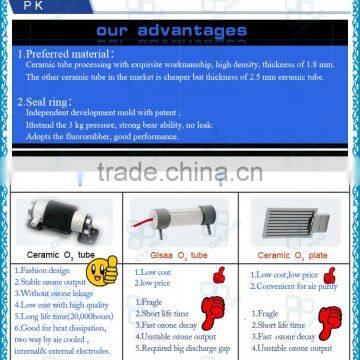

Features of CH-PTF Series:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can reach 20~110 mg/L, which is 4 to 5 times higher than conventional products.
2.Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, and constant is high but with low loss.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5.Easy to maintain and install
New arrival corona discharge ozone generator ceramic plate
To Dear Customer:
This CH-PTF series ceramic coating corona discharge ozone generator tube has two design:
1. CH-PTF-A: the ozone tube with a adjustable power supply, the ozone output is 20-100% adjustable.
2. CH-PTF-M: the ozone tube with a modual power supply, the ozone output is not adjustable.
New arrival corona discharge ozone generator ceramic plate
New arrival corona discharge ozone generator ceramic plate
CH-PTF1G ~3G
Item | Unit | CH-PTF | ||||
1G (12V) | 1G (220V) | 1G (110V) | 3GM | 3GA | ||
Ambient temperature | ℃ | 21.6 | 25 | 23.6 | 21 | |
Ambient humidity | % | 40 | 50 | 21.6 | 40 | |
Power | W | ≤14.4 | ≤15 | ≤15 | ≤50 | ≤80 |
Oxygen feed flow rate | LPM | 0.3~0.5 | 0.3~1 | 0.3~1 | 0.5-1 | |
Ozone concentration | Mg/L | 49~40 | 49~30 | 49~30 | 81.6-49.2 | |
Ozone output | G/Hr | 0.88~1.2 | 0.88~1.8 | 2.4-2.95 | ||
Ozone output adjustable range | % | / | / | 20~100 | ||
Line power supply | V/Hz | 110/60 220/50 | ||||
Cooling way | / | Air cooling | ||||
Diameter of cooling fan | mm | 50*50 | 50*50 | 50*50 | 120 | |
Diameter of gas inlet/outlet | mm | ED6 | ||||
Power supply dimensions | mm | 105*57*50 | 96*47*32 | 96*47*32 | 153×60×53 | 201×86×83 |
ozone tube dimensions | mm | 125*50*50 | 165×90*90 | |||
Ozone tube weight | Kg | 0.2 | 0.5 | |||
Power supply weight | Kg | 0.15 | 0.59 | 0.76 | ||
CH-PTF5G ~7G
Item | Unit | CH-PTF | ||||
5GM | 5GA | 6GM | 6GA | 7GA | ||
Ambient temperature | ℃ | 21 | 21 | 26 | 26 | |
Ambient humidity | % | 40 | 49 | 49 | ||
Power | W | ≤65 | ≤80 | ≤80 | ≤85 | ≤95 |
Oxygen feed flow rate | LPM | 0.5-2 | 1~3 | 1~3 | ||
Ozone concentration | Mg/L | 72~48 | 64.6~36.7 | 70~41.2 | ||
Ozone output | G/Hr | 2.16~4.76 | 3.9~6.6 | 4.20~7.4 | ||
Ozone output adjustable range | % | / | 20~100 | / | 20~100 | 20~100 |
Line power supply | V/Hz | 110/60 220/50 | ||||
Cooling way | / | Air cooling | ||||
Diameter of cooling fan | mm | 150 | ||||
Diameter of gas inlet/outlet | mm | ED6 | ||||
Power supply dimensions | mm | 177*66*53 | 201*86*83 | 177*66*53 | 201*86*83 | 201*86*83 |
ozone tube dimensions | mm | 185*90*90 | 200*90*90 | 212*90*90 | ||
Ozone tube weight | Kg | 0.53 | 0.56 | 0.65 | ||
Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 1.1 |
New arrival corona discharge ozone generator ceramic plate
1. Sterilization: destroy a variety of bacteria and viruses efficiently but without secondary pollution.
2. Detoxification: effectively remove the residual pesticides from vegetables and fruits.
3. Deodorization: eliminate mould, smoke etc.
4. Oxygen increasing: improve the oxygen level for air and water.
5. Health: air purification, expedite human metabolism.
New arrival corona discharge ozone generator ceramic plate
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
3.We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
4.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor.
New arrival corona discharge ozone generator ceramic plate
