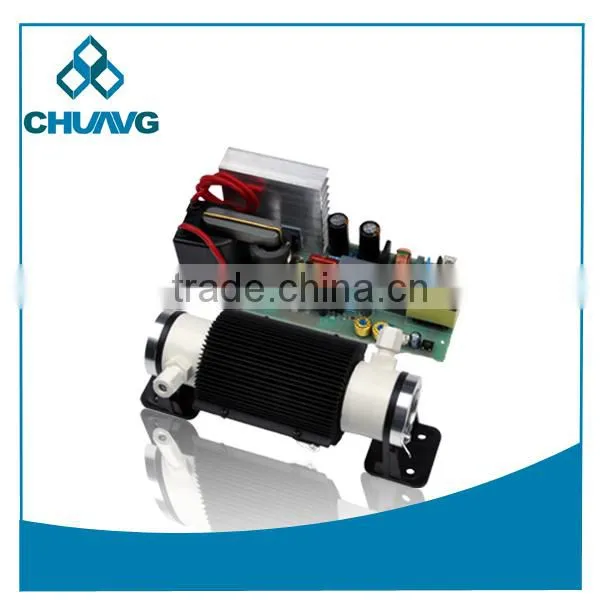

Top sales 5g/hr ozone tube ozone cell with power supply
CH-PTF

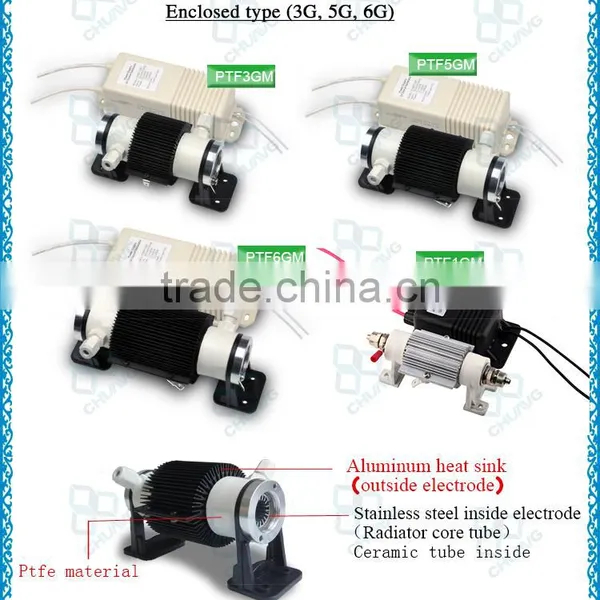

Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
DESCRIPTION
WE ARE THE OZONE GENERATOR BEST SUPPLIER IN CHINA!

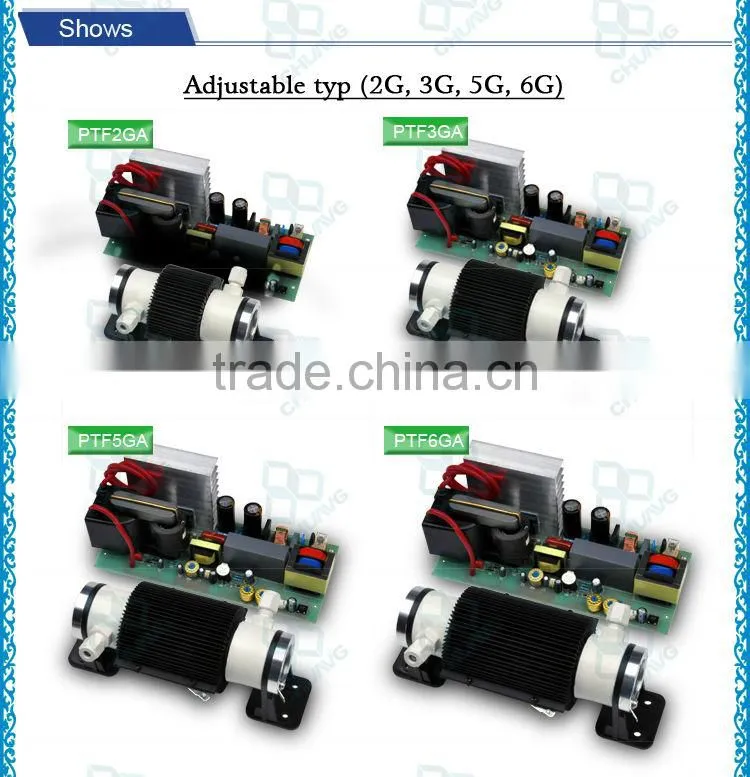

CH-PTF1G ~3G
Item |
Unit |
CH-PTF |
||||
1G (12V) |
1G (220V) |
1G (110V) |
3GM |
3GA |
||
Ambient temperature |
℃ |
21.6 |
25 |
23.6 |
21 |
|
Ambient humidity |
% |
40 |
50 |
21.6 |
40 |
|
Power |
W |
≤14.4 |
≤15 |
≤15 |
≤50 |
≤80 |
Oxygen feed flow rate |
LPM |
0.3~0.5 |
0.3~1 |
0.3~1 |
0.5-1 |
|
Ozone concentration |
Mg/L |
49~40 |
49~30 |
49~30 |
81.6-49.2 |
|
Ozone output |
G/Hr |
0.88~1.2 |
0.88~1.8 |
2.4-2.95 |
||
Ozone output adjustable range |
% |
/ |
/ |
20~100 |
||
Line power supply |
V/Hz |
110/60 220/50 |
||||
Cooling way |
/ |
Air cooling |
||||
Diameter of cooling fan |
mm |
50*50 |
50*50 |
50*50 |
120 |
|
Diameter of gas inlet/outlet |
mm |
ED6 |
||||
Power supply dimensions |
mm |
105*57*50 |
96*47*32 |
96*47*32 |
153×60×53 |
201×86×83 |
ozone tube dimensions |
mm |
125*50*50 |
165×90*90 |
|||
Ozone tube weight |
Kg |
0.2 |
0.5 |
|||
Power supply weight |
Kg |
0.15 |
0.59 |
0.76 |
||

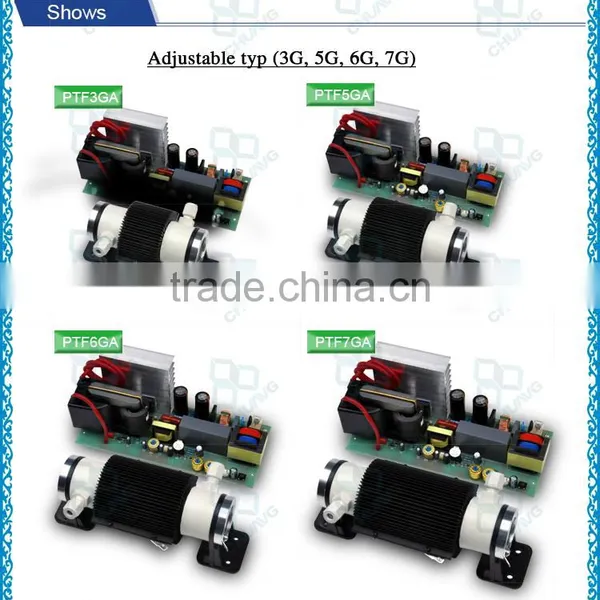

CH-PTF5G ~7G
Item |
Unit |
CH-PTF |
||||
5GM |
5GA |
6GM |
6GA |
7GA |
||
Ambient temperature |
℃ |
21 |
21 |
26 |
26 |
|
Ambient humidity |
% |
40 |
49 |
49 |
||
Power |
W |
≤65 |
≤80 |
≤80 |
≤85 |
≤95 |
Oxygen feed flow rate |
LPM |
0.5-2 |
1~3 |
1~3 |
||
Ozone concentration |
Mg/L |
72~48 |
64.6~36.7 |
70~41.2 |
||
Ozone output |
G/Hr |
2.16~4.76 |
3.9~6.6 |
4.20~7.4 |
||
Ozone output adjustable range |
% |
/ |
20~100 |
/ |
20~100 |
20~100 |
Line power supply |
V/Hz |
110/60 220/50 |
||||
Cooling way |
/ |
Air cooling |
||||
Diameter of cooling fan |
mm |
150 |
||||
Diameter of gas inlet/outlet |
mm |
ED6 |
||||
Power supply dimensions |
mm |
177*66*53 |
201*86*83 |
177*66*53 |
201*86*83 |
201*86*83 |
ozone tube dimensions |
mm |
185*90*90 |
200*90*90 |
212*90*90 |
||
Ozone tube weight |
Kg |
0.53 |
0.56 |
0.65 |
||
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
1.1 |
QUALITY CONTROL
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
