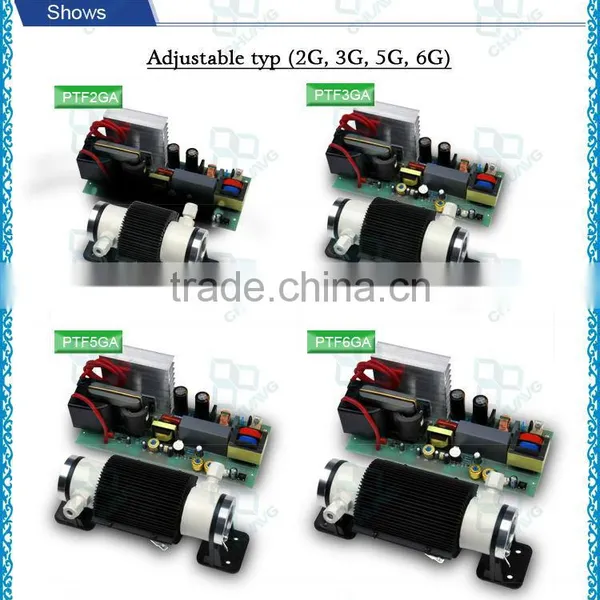

Top sale air cooling Ozone generator spare parts / ozone generator kits
CH-PTF

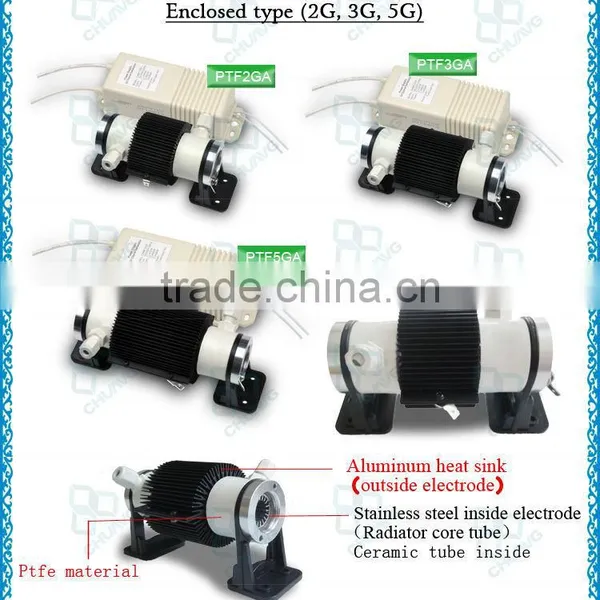

Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Features:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
CH-PTF1G ~3G
Item |
Unit |
CH-PTF |
||||
1G (12V) |
1G (220V) |
1G (110V) |
3GM |
3GA |
||
Ambient temperature |
℃ |
21.6 |
25 |
23.6 |
21 |
|
Ambient humidity |
% |
40 |
50 |
21.6 |
40 |
|
Power |
W |
≤14.4 |
≤15 |
≤15 |
≤50 |
≤80 |
Oxygen feed flow rate |
LPM |
0.3~0.5 |
0.3~1 |
0.3~1 |
0.5-1 |
|
Ozone concentration |
Mg/L |
49~40 |
49~30 |
49~30 |
81.6-49.2 |
|
Ozone output |
G/Hr |
0.88~1.2 |
0.88~1.8 |
2.4-2.95 |
||
Ozone output adjustable range |
% |
/ |
/ |
20~100 |
||
Line power supply |
V/Hz |
110/60 220/50 |
||||
Cooling way |
/ |
Air cooling |
||||
Diameter of cooling fan |
mm |
50*50 |
50*50 |
50*50 |
120 |
|
Diameter of gas inlet/outlet |
mm |
ED6 |
||||
Power supply dimensions |
mm |
105*57*50 |
96*47*32 |
96*47*32 |
153×60×53 |
201×86×83 |
ozone tube dimensions |
mm |
125*50*50 |
165×90*90 |
|||
Ozone tube weight |
Kg |
0.2 |
0.5 |
|||
Power supply weight |
Kg |
0.15 |
0.59 |
0.76 |
||
CH-PTF5G ~7G
Item |
Unit |
CH-PTF |
||||
5GM |
5GA |
6GM |
6GA |
7GA |
||
Ambient temperature |
℃ |
21 |
21 |
26 |
26 |
|
Ambient humidity |
% |
40 |
49 |
49 |
||
Power |
W |
≤65 |
≤80 |
≤80 |
≤85 |
≤95 |
Oxygen feed flow rate |
LPM |
0.5-2 |
1~3 |
1~3 |
||
Ozone concentration |
Mg/L |
72~48 |
64.6~36.7 |
70~41.2 |
||
Ozone output |
G/Hr |
2.16~4.76 |
3.9~6.6 |
4.20~7.4 |
||
Ozone output adjustable range |
% |
/ |
20~100 |
/ |
20~100 |
20~100 |
Line power supply |
V/Hz |
110/60 220/50 |
||||
Cooling way |
/ |
Air cooling |
||||
Diameter of cooling fan |
mm |
150 |
||||
Diameter of gas inlet/outlet |
mm |
ED6 |
||||
Power supply dimensions |
mm |
177*66*53 |
201*86*83 |
177*66*53 |
201*86*83 |
201*86*83 |
ozone tube dimensions |
mm |
185*90*90 |
200*90*90 |
212*90*90 |
||
Ozone tube weight |
Kg |
0.53 |
0.56 |
0.65 |
||
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
1.1 |
About OZONE
1) Ozone is the strongest disinfectant is known, which does not leave toxic residues, since it decomposes to oxygen and water or carbon dioxide in the air.
2) Ozone has a agran varieddad of benefits and is increasingly extended their application in various spheres of human life, of that long list of benefits and some applications include:
** It is used to purify water in houses, cities and treatment plants wastewater
** Disinfection of rooms, homes, hospitals, air conditioning, cold storage, pharmaceutical and other industries requiring everywhere aceptico environment.
** It is used as a deodorizer, remove odors are not covered.
** It is used in medical treatments for diseases such as cancer, skin allergies, arthritis, internal and external infections, deworming in the stomach, ophthalmology and dentistry and many more.
