20g/h Ozone Generator Used for Water Treatment, 20g/h Ozone Generator Tube

Specifications

20g/h ozone generator used for water treatment, 20g/h ozone generator tube

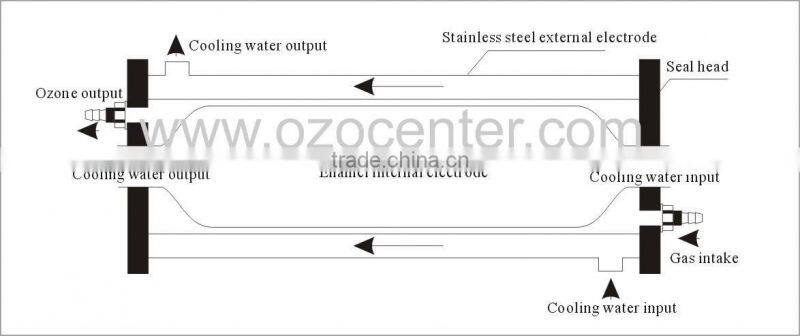

1.Electrodes:

Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.

2.Cooling way:

Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.

  3.Adjustable ozone output: 20-100%.

Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

4.High ozone concentration & output .

Specifications

Working conditions:

Ambient temperature: 20°C, Oxygen concentration: >99%, Dew point: >-45, cooling water output temperature:20°C.
