Specifications
WPC panel extrusion line1, screw and barrel: made of 38CrMoAlA, nitriding
2, ABB inverter
3, auto-cut
4, formula support

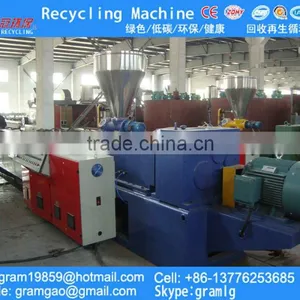

The WPC panel extrusion line consists of screw feeder, conical double-screw extruder, calibration table, haul-off and cutter, and stacker.
1),The screws and barrel are made of 38CrMoAlA, with nitriding processing.
2),reducer: hard gear teeth surface ,
3),main motor and forced feeder: use inverter for speed adjustment,
4),height of calibration table can be adjusted easily from control panel.
5), cutter with alloy saw and dust collector.
6), SIEMENS electric parts
7), free production formula technology
8), turn-key project cooperation.
Item |
SJZ-45 |
SJZ-51 |
SJZ-65 |
SJZ-80 |
SJZ-92 |
Diameter of screw(mm) |
45/100 |
51/105 |
65/132 |
80/156 |
92/188 |
Screw rotation speed(rpm) |
1-37 |
1-32 |
1-34.7 |
1-36.9 |
1-32.9 |
Effective length of screw(mm) |
985 |
1070 |
1440 |
1800 |
2500 |
Power of main motor (KW) |
15 |
18.5 |
37 |
55 |
90 |
Barrel heating power (KW) |
12 |
18 |
24 |
36 |
86.8 |
Production capacity(kg/h) |
50 |
50-80 |
80-150 |
180-260 |
300-450 |
Center height(mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
Net weight(kg) |
2800 |
3200 |
4000 |
5000 |
10000 |
