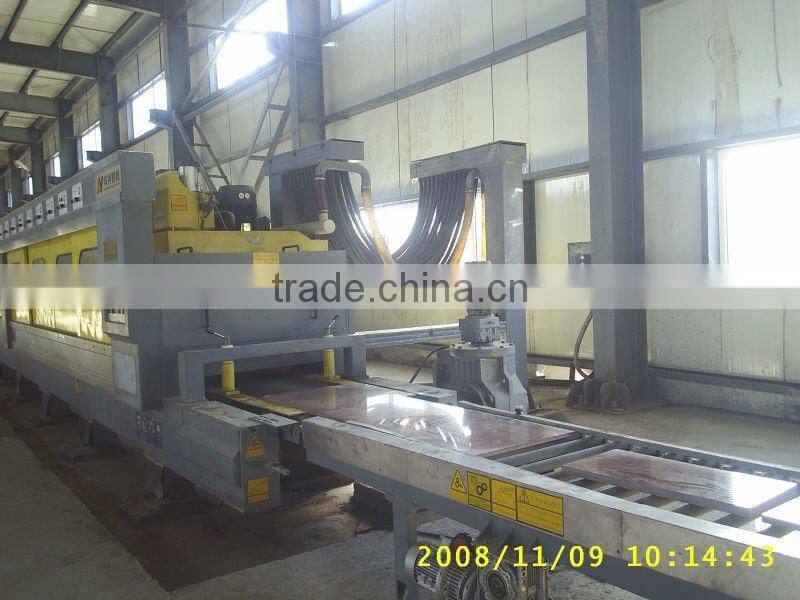

HGM06/18 Multi-head Grinding and Polishing Machine
This machine is mainly used for grinding and polishing granite plate.
Advanced control system, the PLC has been used to control the man-machine interface with LCD screen, wide plate type with automatic contour detection device and the aptitude control functions.
The main technical parameter:
.
Machine Type | HGM06/18 (3+18) | HGM09/18 (3+18) | HGM12/18 (2+18) | HGM14/18 (18) | HGM16/18 (18) | HGM20/18 (18) | |
No. of Calibrators | 3 | 2 | The wide slab calibrating headss Size is the same as polishing heads. Uasually unload the polishing Abrasives and load the calibrating Abrasives for the front 2 heads. | ||||
Working width | 650mm | 950mm | 1250mm | ||||
Calibrating plate diameter | 680mm | 980mm | 1280mm | ||||
Calibrating up-down movement power | 0.75kw | ||||||
Calibrating main motor | 22kw | ||||||
No. of polishing heads | 18 | ||||||

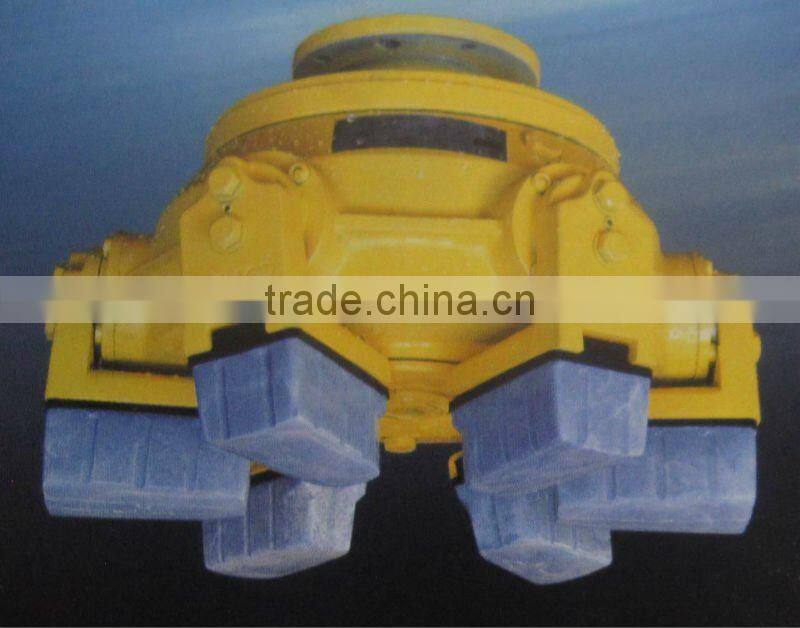

Diameter of polishing head | 450mm | ||||||
No. of abbrasivves | 6 | ||||||
Main motor power | 11kw | ||||||
Conveyor belt power | 3kw | ||||||
Bridge movement power | 4kw*2 | ||||||
Cleaning brusher motor | 1.5kw | ||||||
Working thickness | 20-50mm | ||||||
Water consumption | 25L/min/heads | ||||||
Vertical stroke of polishing heads | 150mm | ||||||
Cooling water pressure | 0.15-0.3Mpa | ||||||
Processing capacity | 0.6-1m/min | 0.3-0.5m/min | |||||
Total Power | 278.75 | 278.75 | 256 | 210.5 | 210.5 | 210.5
| |
