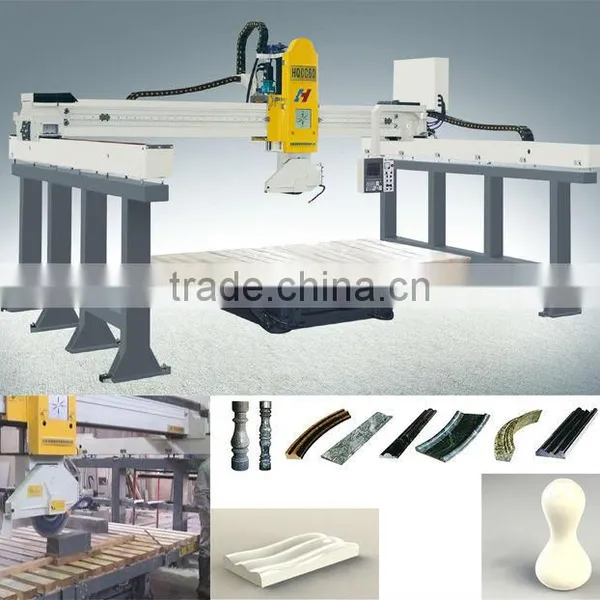

HQCC60 Stone Cutting Machinery China

HQCC60 Stone Cutting Machinery China thumbnail-1
HQCC60 Stone Cutting Machinery China photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Shandong Gold Rhino Huaxing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Granite
Place of Origin Shandong, China
Brand Name HUAXING
Model Number HQCC60
Certification ce
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

                            HQC40 Series Infrared Ray Bridge Cutters







Main technical parameter:









Type

HQC40A

HQC40L

HQC40E and HQC40B

max. Cross stroke of blade

3500mm

max. longitudinal stroke of blade

3300mm

max.Elevation stroke of blade

200mm

Max.cross movement speed of blade

12500mm/min

Max.longitudinal movement speed of blade

8500mm/min

Max. tipping angle of working table

85º

Max. angle of swing of working table

90º

360º

Angle of adjusting of working table

0º  90º

0º  30º  45º  60º

90º    120º   135º

150º    240º

Dimension of working table

3240*2000mm

The type of side-beam guiding rail

Straight glide guiding rail

Double V roller guiding rail

Straight glide guiding rail

Total capacity

19.1(15.1)kw (according to the requirements)

15.1KW

  Main motor

15(11)kw (according to the requirements)

11KW

walking motor of carriage

1.5 kw

Woving motor of cross beam

1.1 kw

Oil pump motor

1.5 kw

Rated working pressure

0.7mpa

Overall dimension

6100*5200*3000
