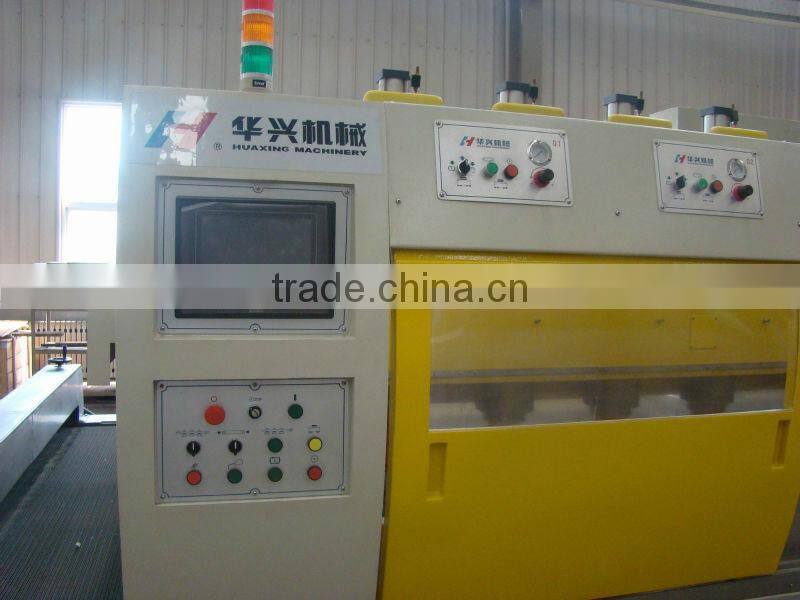

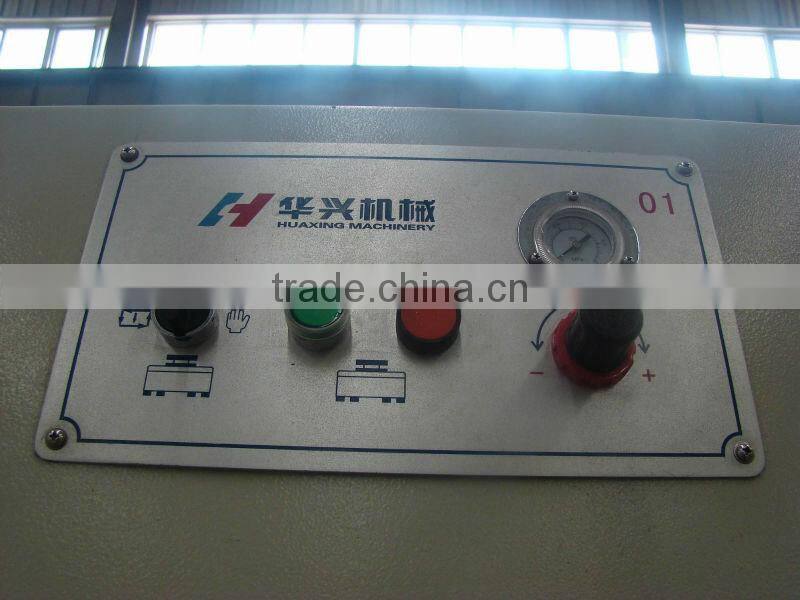

HLM Polishing Mahcine -Stone Polishing Machine
- 10000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | HUAXING | Model Number: | HGM HLM HRM RPM |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

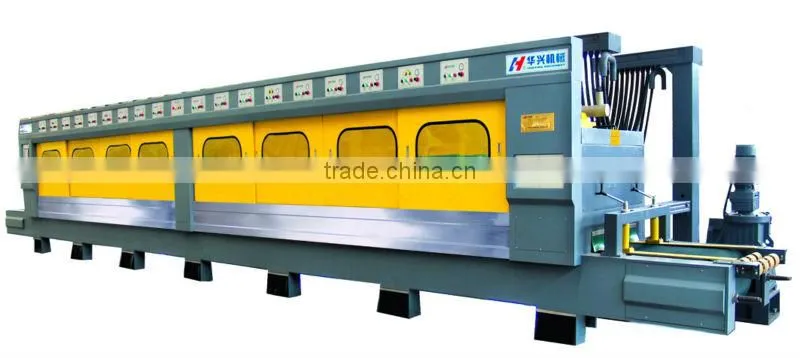

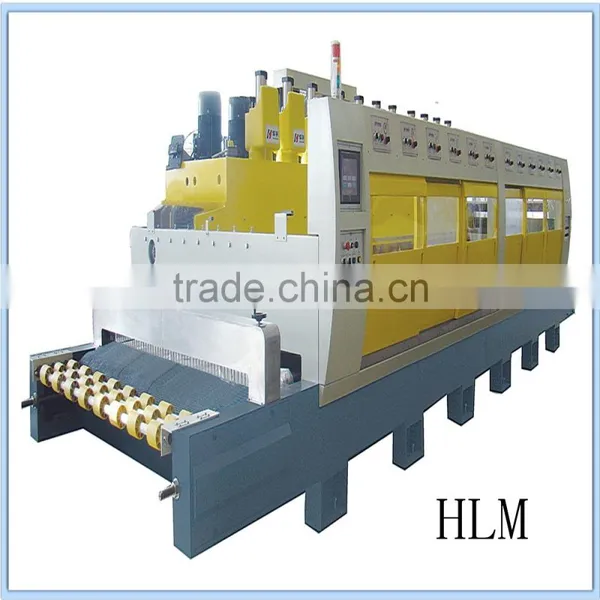

HLM series of marble slab polishers
Machine Type | HLM06/12 (3+12) | HLM09/12 (3+12) | HLM12/12 (2+12) | HLM20/12 (12) | HLM20/8 (8) | HLM20/6 (6) |
No. of Calibrators | 3 | 2 | The 2000mm slab calibrating heads’s Size is the same as polishing heads. Uasually unload the polishing Abrasives and load the calibrating Abrasives for the front 2 heads. | |||
Working width | 650mm | 950mm | 1250mm | |||
Calibrating plate diameter | 680mm | 980mm | 1280mm | |||
Calibrating up-down movement power | 0.75kw | |||||
Calibrating main motor | 22kw | |||||
No. of polishing heads | 12 | 8 | 6 | |||
Diameter of polishing head | 500mm | |||||
No. of abbrasivves | 7 | |||||
Main motor power | 11kw | |||||
Conveyor belt power | 3kw | |||||
Bridge movement power | 4kw*2 | 4kw
| ||||
Cleaning brusher motor | 1.5kw | |||||
Working thickness | 20-50mm | |||||
Water consumption | 25L/min/heads | |||||
Vertical stroke of polishing heads | 150mm | |||||
Cooling water pressure | 0.15-0.3Mpa | |||||
Processing capacity | +1.5m/min | |||||
Total Power | 212.75 | 212.75 | 190 | 144.5 | 96.5 | 74.5 |
This machine is mainly used for grinding and polishing granite plate. Updating technology is used in this machine; it has reasonable structure, stable working conditions and high efficiency. Advanced control system, the PLC has been used to control the man-machine interface with LCD screen, wide plate type with automatic contour detection device and the aptitude control functions.
The main technical parameter:
- 1. The grinder of the machine adopt universal shock attenuation device, have long life, low failure rate, high efficiency and low loss millstone. non-friable board advantage
2. Conveying belt use international brands, uniform thickness, guaranteeing the thickness of sheet basic uniform.
3. Conveying belt and crossbeam can be adjusted through the frequency converter, to achieve variable speed control.
4. The Number of grinder is12-18, the width of grinder is 600-2000mm. Grinding and Polishing thickness is 15-50mm, grinder capacity is 11Kw.
