Specifications
gypsum powder grinder machineused in metallurgy,construction materials,chemical grinder,
Mohs hardness<=9.3,humidity<=6% mill

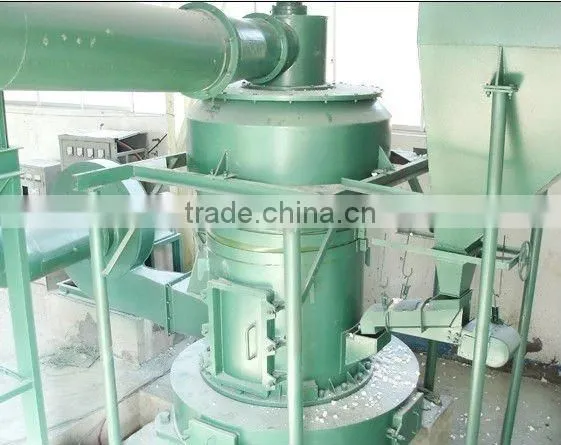

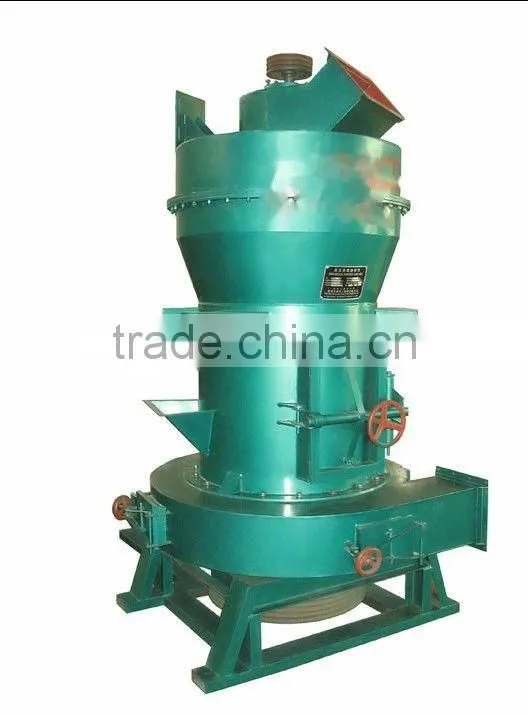

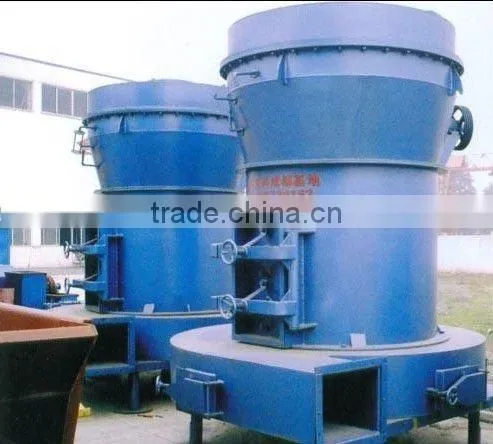

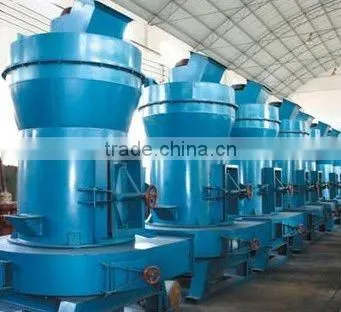

Introduction of gypsum powder Grinder:
Gypsum powder Grinder is mainly applied to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical, and mining, etc. it can produce powder from various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%, such as gypsum quartz, feldspar, calcite, talcum, barite, fluoride, Xircom, cinder, white lime, cement clinker, activated carbon, dolomite, granite, soft coal, coking coal, lignite, magnesia, chromium oxide green, gold ore, red clay, clay, kaolin, coke, coal Gangue, porcelain clay, kyanite, fluorspar, bentonite, medicinal stone liparite, diabase, pyrophyllite, shale red stone, emeraldite, basalt, gypsum, graphite, carborundun, heat insulating material, etc.
Features of the High Pressure Suspension Grinder:
1. Compared with the common Raymond grinding mill under the same power conditions, the capacity can be increased by 10%, under the performance of high-pressure springs, the rollers grinding pressure on raw materials can be raised by 1500kgf.
2. All the mineral materials with Mohs hardness below 9.3 can be crushed.
3. The final product size ranges from the maximum particle diameter of 0.95mm (20mesh) to the finest diameter of 0.038mm (400 mesh). A few materials can reach 0.013mm (1000 mesh).
4. Its dust-removing effect fully meets the national dust discharge standard.
5. The classifier is easy for adjustment.
6. The grinding device adopts a superposition multi-grade sealing with good sealing performance.
Specifications of gypsum powder Grinder
Type |
Roller |
Ring |
freeding size(mm) |
Fineness of product(mm) |
power(kw) |
|||
|
No |
Diameter(mm) |
Height(mm) |
Inside Diameter(mm) |
Height(mm) |
|
|
|
YGM65 |
3 |
210 |
150 |
650 |
150 |
<15 |
0.613-0.033 |
15 |
YGM75 |
3 |
260 |
150 |
780 |
150 |
<15 |
0.613-0.033 |
18.5 |
YGM85 |
3 |
270 |
140 |
830 |
140 |
<20 |
0.613-0.033 |
22 |
YGM85B |
3 |
270 |
150 |
830 |
150 |
<20 |
0.613-0.033 |
22 |
YGM95 |
4 |
310 |
170 |
950 |
170 |
<25 |
0.613-0.033 |
37 |
