Obvious Advantages -High Pressure Suspension Grinder Machine

Obvious Advantages -High Pressure Suspension Grinder Machine thumbnail-1
Obvious Advantages -High Pressure Suspension Grinder Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, High Pressure Suspension Grinder
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Dafu Mechanical Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, High Pressure Suspension Grinder
Motor Type AC Motor
Power(W) energy-saving
Capacity(t/h) check the specification
Place of Origin Henan, China
Brand Name CHINA DAFU
Model Number as request
Dimension(L*W*H) XX
Weight XX
Certification CE ISO etc.
Warranty 1year

Specifications

mainly applied to the powder processing of mineral products in the industries of metallurgy,construction materials,chemical.etc


Company Information



Obvious Advantages -High Pressure Suspension Grinder machineObvious Advantages -High Pressure Suspension Grinder machineObvious Advantages -High Pressure Suspension Grinder machineObvious Advantages -High Pressure Suspension Grinder machineObvious Advantages -High Pressure Suspension Grinder machine

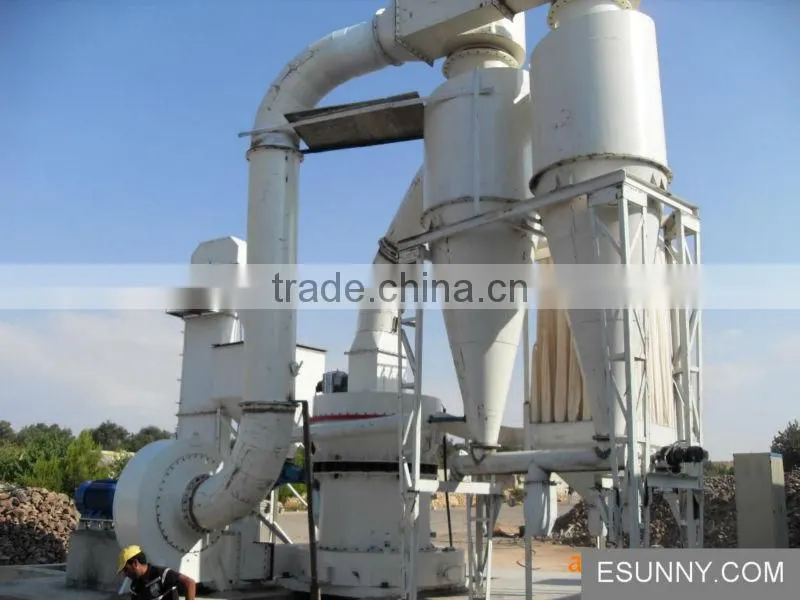

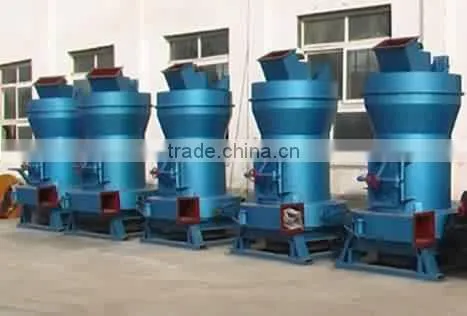

High Pressure Suspension Grinder

Introduction of High Pressure Suspension Grinder:
High Pressure Suspension Grinder is mainly applied to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical, and mining, etc. it can produce powder from various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%, such as quartz, feldspar, calcite, talcum, barite, fluoride, Xircom, cinder, white lime, cement clinker, activated carbon, dolomite, granite, soft coal, coking coal, lignite, magnesia, chromium oxide green, gold ore, red clay, clay, kaolin, coke, coal Gangue, porcelain clay, kyanite, fluorspar, bentonite, medicinal stone liparite, diabase, pyrophyllite, shale red stone, emeraldite, basalt, gypsum, graphite, carborundun, heat insulating material, etc.

Features of the High Pressure Suspension Grinder:
1. Compared with the common grinding mill under the same power conditions, the capacity can be increased by 10%, under the performance of high-pressure springs, the rollers grinding pressure on raw materials can be raised by 1500kgf.
2. All the mineral materials with Mohs hardness below 9.3 can be crushed.
3. The final product size ranges from the maximum particle diameter of 0.95mm (20mesh) to the finest diameter of 0.038mm (400 mesh). A few materials can reach 0.013mm (1000 mesh).
4. Its dust-removing effect fully meets the national dust discharge standard.
5. The classifier is easy for adjustment.
6. The grinding device adopts a superposition multi-grade sealing with good sealing performance.


High Pressure Suspension Grinder

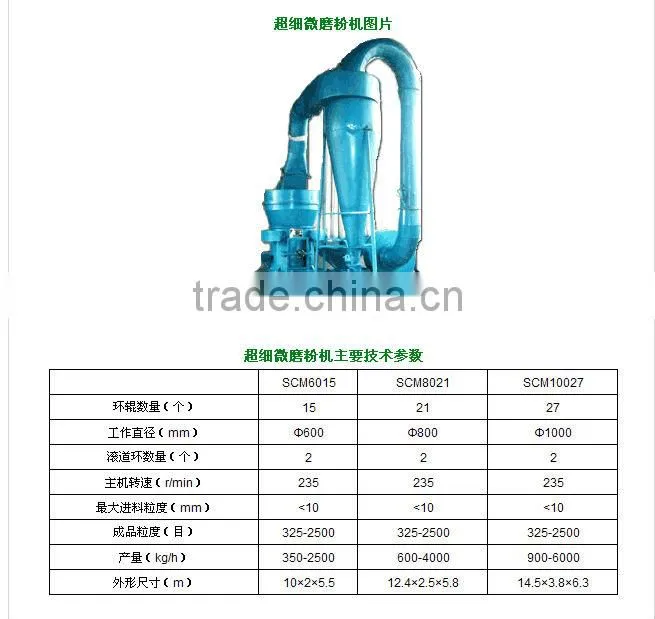

Specifications of High Pressure Suspension Grinder
Type
Roller
Ring
freeding size(mm)
Fineness of product(mm)
power(kw)
No
Diameter(mm)
Height(mm)
Inside Diameter(mm)
Height(mm)
YGM65
3
210
150
650
150
<15
0.613-0.033
15
YGM75
3
260
150
780
150
<15
0.613-0.033
18.5
YGM85
3
270
140
830
140
<20
0.613-0.033
22
YGM85B
3
270
150
830
150
<20
0.613-0.033
22
YGM95
4
310
170
950
170
<25
0.613-0.033
37

Notice: Any change of High Pressure Suspension Grinder technical data shall not be advised additionally.
