Vertical Mine Stone Grinding Machine

Vertical Mine Stone Grinding Machine thumbnail-1
Vertical Mine Stone Grinding Machine photo-1
US$ 1,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Dafu Mechanical Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Lian yungang or Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Raymond Mill
Motor Type AC Motor
Power(W) 15/18.5/22/30/37kw
Capacity(t/h) higher
Place of Origin Henan, China
Brand Name CHINA DAFU
Model Number 3R/4R/5R
Dimension(L*W*H) XXX
Weight XXX
Certification XXX
Warranty long time

Specifications

Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials

Raymond Grinder

Introduction of Raymond Grinder:
Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

Structural characteristics of Raymond Grinder:
the whole grinding mill is of a standing structure. It features small occupying space and strong integration capacity. It can form an independent production system from the lump materials , crushing to finished powder and packaging. All the finished particles have a good uniformity of fineness, with passing screen rate as high as 98%. This is what other machine cannot reach. The machine adopts electromagnetic vibrating feeder, which ensures even and regular feeding. It is easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain. The transmission device of the main unit is equipped with a close gearbox which ensures its smooth transmission and reliable operation. Attendance of operater is not necessary in the mill operating room because the adoption of advanced central control console switch.

Raymond Mill Working principle:

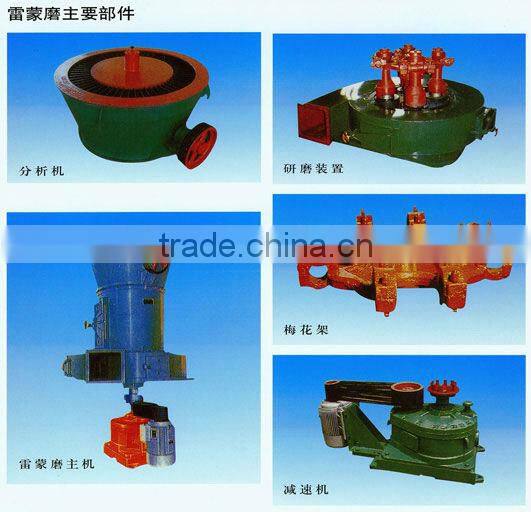

The whole grinder is collocated with jaw crusher, elevator, hopper, electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower.
The working principle is as follows: load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.
After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.
The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.
In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the deuster and sequentially to the atmosphere after purification.

 If you are interested in the Raymond Mill by us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!

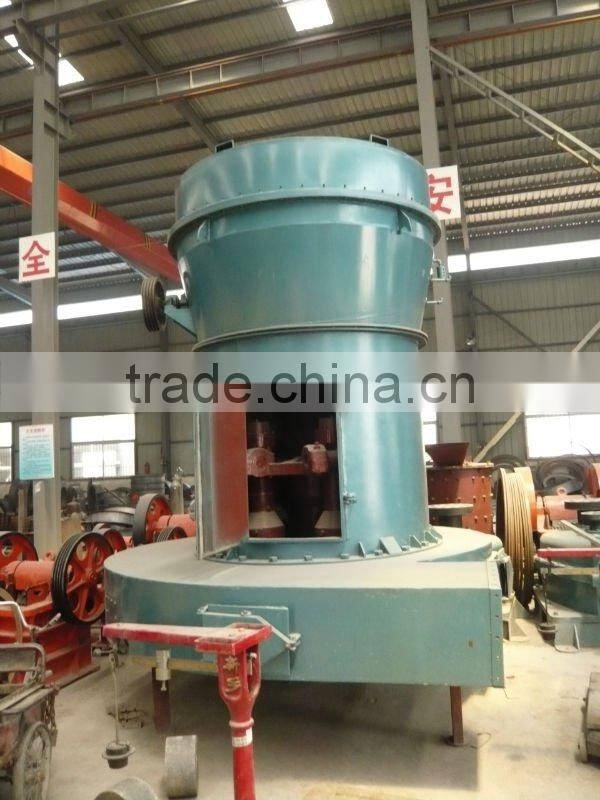

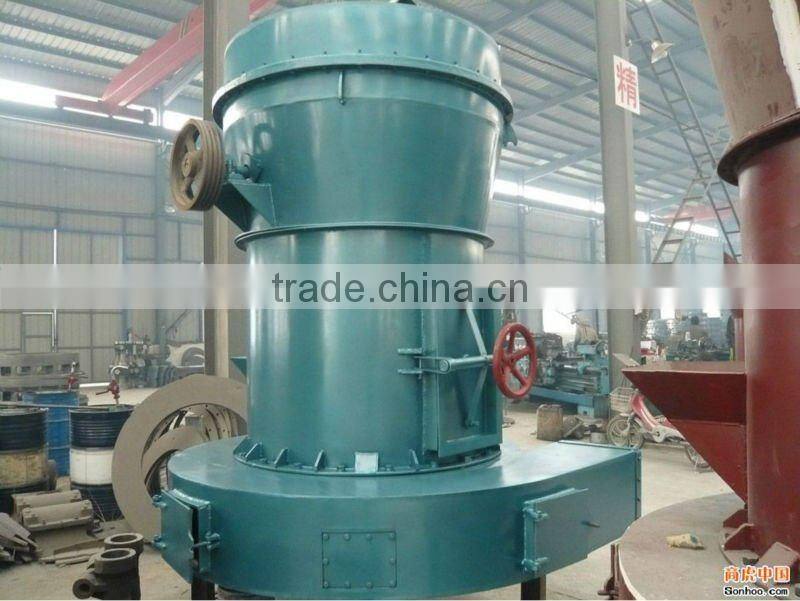

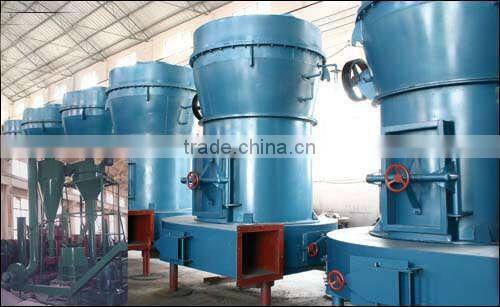

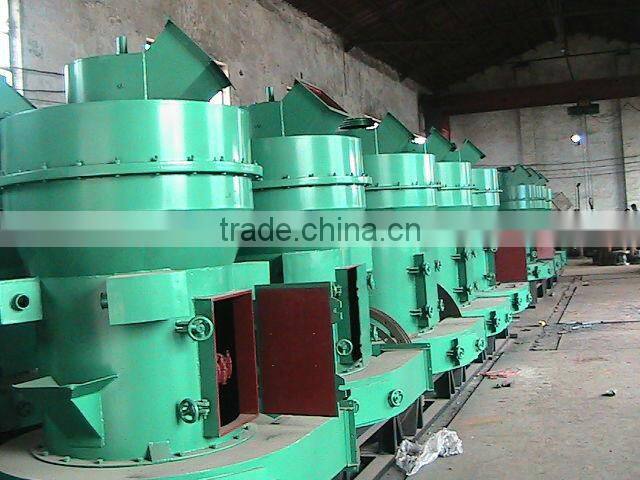

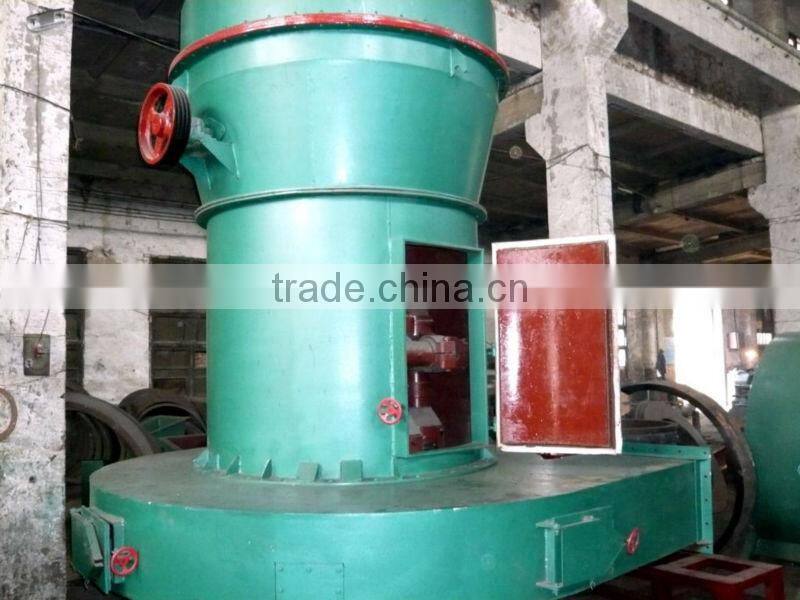

Raymond Mill
 vertical mine stone grinding machinevertical mine stone grinding machine

Specifications of Raymond Mill
Type Roller Ring Max.Stuff size(mm) Fineness of product(mm) power for Machine(kw)
NO DIMENSION(mm) HEIGHT(mm) INSIDE DIAMETER HEIGHT(mm)
3R2115 3 210 150 630 150 15 0.44-0.165 15
3R2615 3 260 150 780 150 15-20 0.44-0.165 18.5
3R2715 3 270 150 830 150 15-20 0.44-0.165 22
3R3016 3 300 160 880 160 15-20 0.44-0.165 30
4R3216 4 320 160 970 160 20-25 0.44-0.165 37

Notice: Any change of Raymond Mill technical data shall not be advised additionally.
