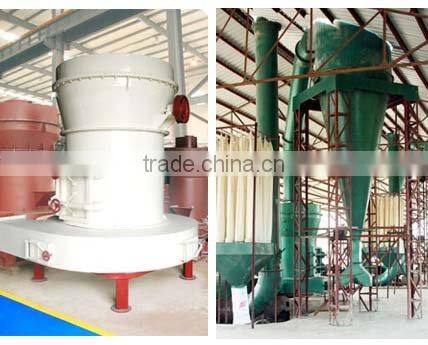

Help CenterGood Quality Raymond Milling Machine
Related Products
-
Water-cooling Wood Flour Milling MachineUS$ 3,000 - 8,000MOQ: 1 Set -
China Hot Sale Water-cooling Wood Flour MachineUS$ 3,000 - 8,000MOQ: 1 Set
-
Good Quality Water-cooling Wood Milling MachineUS$ 3,000 - 8,000MOQ: 1 Set
-
Hot Sale Water-cooling Wood Flour MachineUS$ 3,000 - 8,000MOQ: 1 Set
-
High-pressure Micropowder Grinder-Low CostUS$ 1,000 - 20,000MOQ: 1 Set
Specifications
Raymond Millling Machine advantages:1.Three-dimensional structure.
2.land-saving
3.easy to be a whole set
Brief Introduction of Raymond Grinding Mill:
The whole grinder is collocated with jaw crusher, elevator, hopper, electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower.
In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the deuster and sequentially to the atmosphere after purification.
Working Principle of Raymond Grinding Mill:
The working principle is as follows: load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.
After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.
The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.
Structure of Raymond Grinding Mill:
1.The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2.Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach;
3.Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4.Main parts of the whole plant are made from cast and steel of high quality. The techniques is so subtly that insures the durability of whole plant,
5.The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
| Specifications of Raymond Grinding Mill | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
