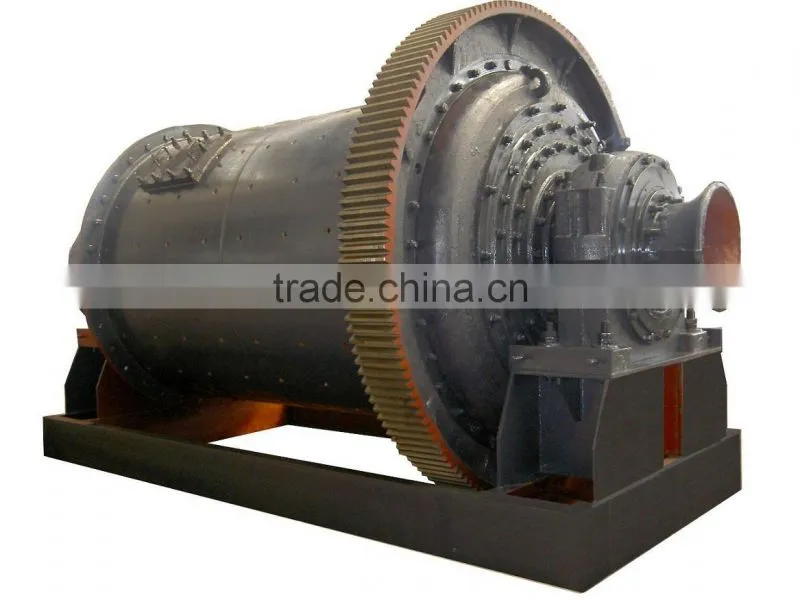

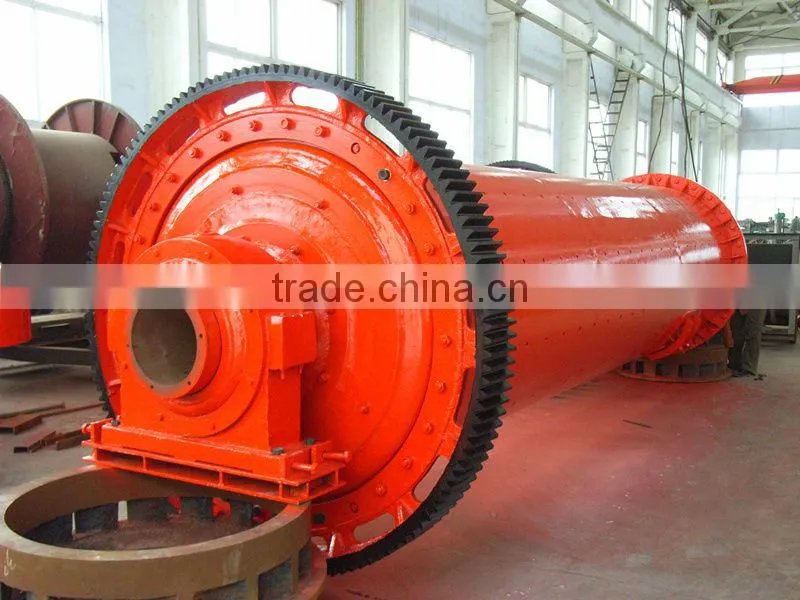

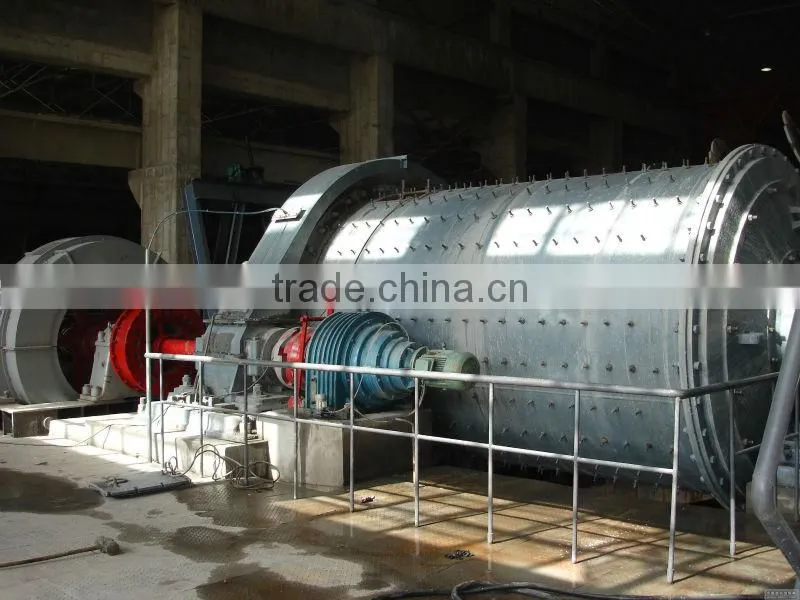

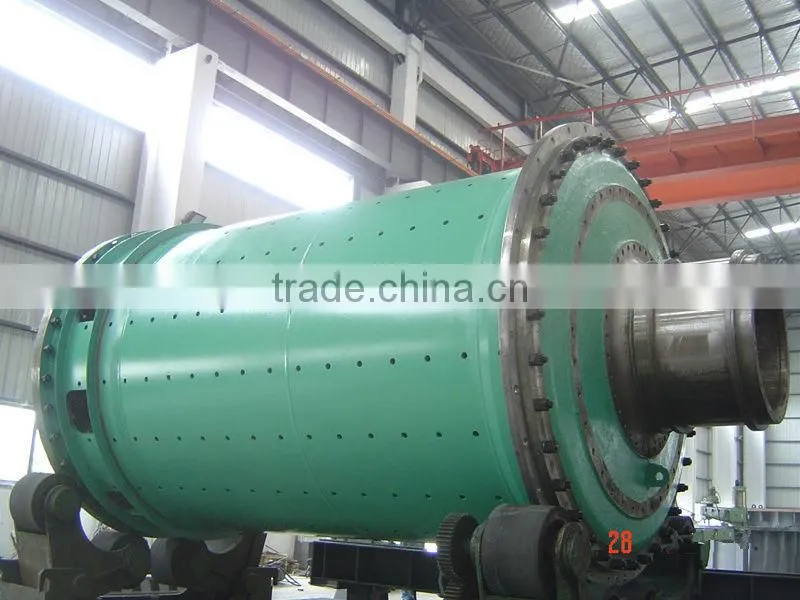

Rod Mill With High Output

Rod Mill With High Output photo-1
US$ 800 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Rod Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Rod Mill
Motor Type AC Motor
Power(W) higher
Capacity(t/h) as request
Place of Origin Henan, China
Brand Name China Dafu
Model Number MBS-SERIES
Dimension(L*W*H) XX
Weight XX
Certification ISO9001
Warranty 1

Specifications

Rod mill has dry and wet two types to choose, we can produce according to your specific requirement.

Rod Mill
Description of MBS type Rod Mill:
Rod mill has dry and wet two types to choose, user could choose depend on the fact. The company uses the advanced output controllable technology, with the face milling material set the suitable miller, change the traditional surface contact into line contact, make the output granularity evener, high product, widely used in chemical industry, metallurgy, glassed industry, and the high rquirement of the evenness for milling after milling, sand making of building sand in recent years.

 If you are interested in the Rod Mill by us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!

Rod Mill


Specifications of Rod Mill
Type Shell specifications(mm) Shell rotation speed(r/min) Feeder granul-arity(mm) Output granul-arity(mm) Processing capacity(t/h) Power(kw) Weight((kg)
Dia. Length
MBS0918 900 1800 36-38 <=25 0.833-0.147 0.62-3.2 18.5 4600
MBS0924 900 2400 36 <=25 0.833-0.147 0.81-4.3 22 5100
MBS1224 1200 2400 36 <=25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 <=25 0.833-0.147 2.4-7.5 75 15600
MBS1830 1830 3000 25.4 <=25 0.833-0.147 4.8-11.6 130 28000
MBS2130 2100 3000 23.7 <=25 0.833-0.147 14-35 155 34000
MBS2136 2100 3600 23.7 <=25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 <=50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 <=50 0.833-0.147 32-86 400 86000
MBS2740 2700 4000 20.7 <=50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 <=50 0.833-0.147 64-180 800 137000

Notice: Any change of Rod Mill technical data shall not be advised additionally.
