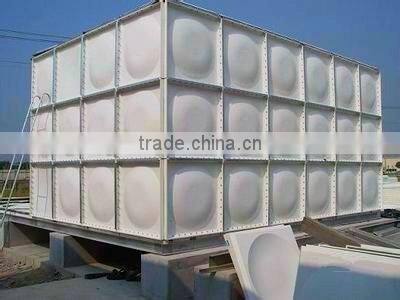

Large Volume Fiberglass Plastic Farm Water Tank in high quality
We are manufacturer in water lank ,our products including:GRP water tank ,FRP water tank ,SMC water tank ,stainless steel water tank ,BDF water tank enameled steel water tank ,hot dip galvanized steel water tank ,gush paint steel water tank ect……
Product description:
| water tank Material | GRP/FRP/SMC |

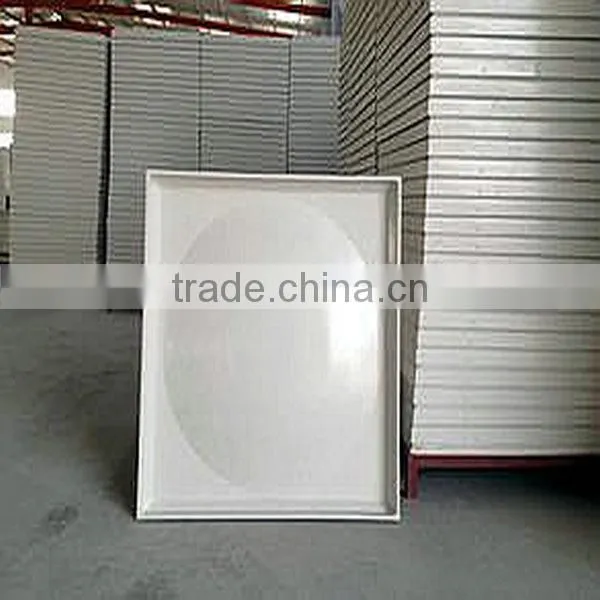

| tank panel Size | 1x1m, 1x0.5m, 0.5x0.5m |
| Panel Shape | Ball shape |
| panel Thickness | 4mm-18mm |
| Remarks | Thickness Tolerance: ±0.2mm |
| water tank volume | From 1m3 to 1000m3 |
| Color | White,Blue,and so on |
|
SMC water tank physical and chemical properties |
ensile strength (Mpa)≥60 |
| Bending strength (Mpa)≥100 | |
| Bending modulus (Gpa)≥7.0 | |
| Pap hardness≥60 | |
| Bibulous rate,%≤1.0 | |
| Glass fiber content,%≥25 | |
| Leakage | No leakage after filled with water |
| Full of water deformation |
Filled with water, wall maximum deformation after no more than 1.0% of the tank bottom center height, no more than 10 mm maximum deformation |
| Water quality | Accord with GB5740 |
| Packaging Detai | Product packaging by the standards of each country. |
| Delivery Detai | Water tank leadtime within 25 days |

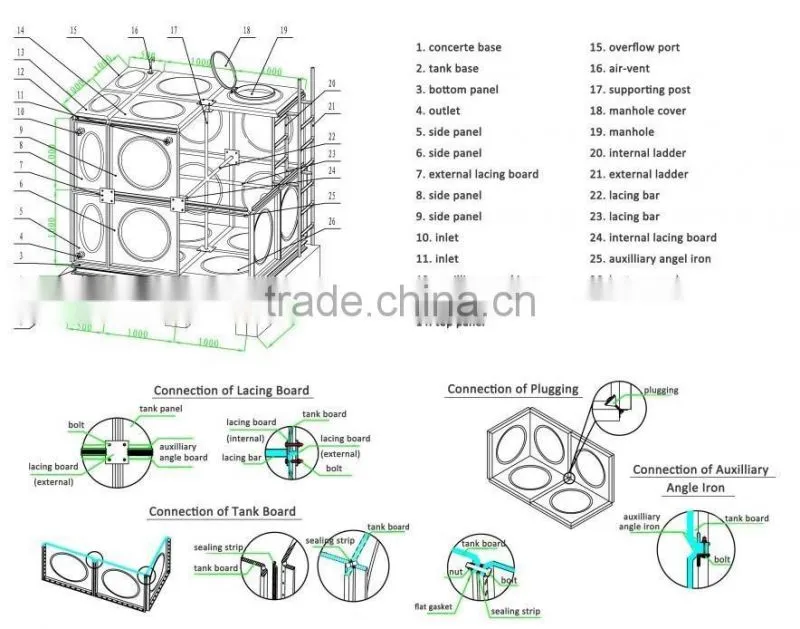

Structure drawing
|
Tank height (mm) |
Thickness of each panel | |||||
|
bottom panel |
1st layer side panel |
2st layer side panel |
3st layer side panel |
4st layer side panel |
cover panel |
|
| 1000 | 10# | 10# | / | / | / | 5# |
| 1500 | 10# | 10# | 8# | / | / | |
| 2000 | 12# | 10# | 8# | / | / | |
| 2500 | 12# | 12# | 10# | 8# | / | |
| 3000 | 14# | 14# | 12# | 8# | / | |
| 3500 | 16# | 14# | 12# | 10# | 8# | |
| 4000 | 18# | 18# | 14# | 12# | 10# | |

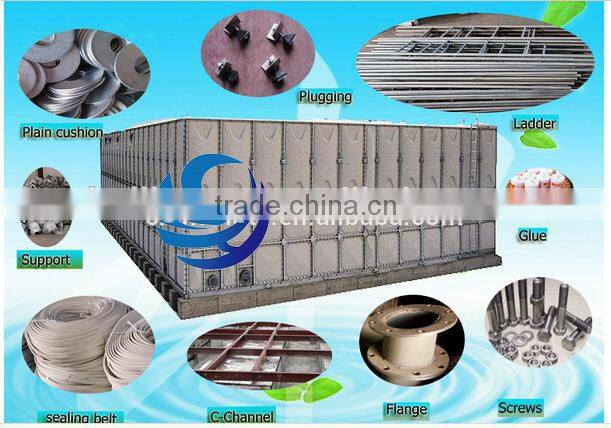

Accessories
Packaging and shipping
1.plywood 2.iron bracket 3.naked package
Application
1). storage and regulation of living water supply & construction water supply
2). Rainwater Harvesting & Storage
3). Effluent/Acid and alkali solution treatment & Storage
4).Hospital,buildings,building site, school and other place
5). temporary water storage for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc
Features
1. Excellent UV and weather-resistant characteristics; Corrosion resistant; anti-rusted.
2. High strength and Durability.
3. Non-leakage
4. Excellent Hygienic, good water quality: non-toxic and corrosion from panels and prevent bacteria increasing.
5. High seismic tolerances; Does not deform or dent.
6. Low thermal conductivity and excellent thermal insulation.
7. Easy to clean and maintenance management convenient.
Company show
Dezhou Huili Environmental Technology Co., Ltd is a professional production enterprise specializing in the production and design of the water tank
Company's products include: fiber glass reinforced plastic water tank, stainless steel watertank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and undergroud water tank Company tenets: quality first, customer first and best credibility!The same price with best quality,the same quality with highest reputation!
The company has a professional after-sale service institution, each service branch are provided with a fixed installation and after sale serviece personnel to ensure the user to get a response from us in the first time.

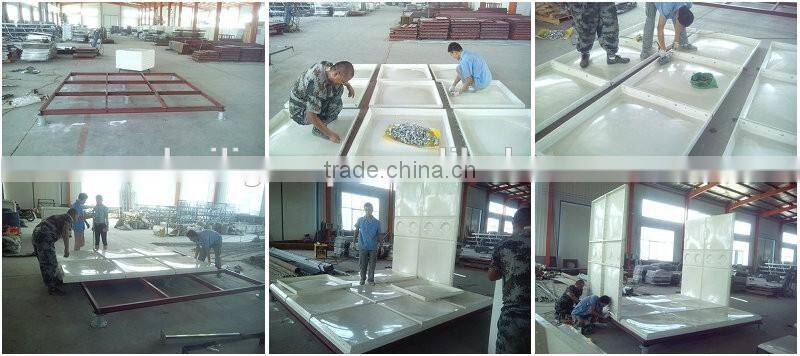

Water Tank install
STEP-BY-STEP ASSEMBLY
TANKS FROM 1 TO 10,000M3 (260 – 2,500,000 USG)
Step 1. Install steel footings on leveled concrete foundations.
Step 2. Align GRP panels to be pre-assembled.
Step 3. Place rubber sealant from ready-to-use roll between panels.
Step 4. Connect panels with bolts and nuts.
Step 5. Position bottom panel sections, and finish up base of tank.
Step 6. Position three sides of the tank.
Step 7. Position and fix roof panels and if required, roof support pipes and plates.
Step 8. Install reinforcement if required.
Step 9. Close up the tank with the fourth side.
Step 10. Finish the internal or external reinforcement.
Step 11. Fill and test.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it
would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading

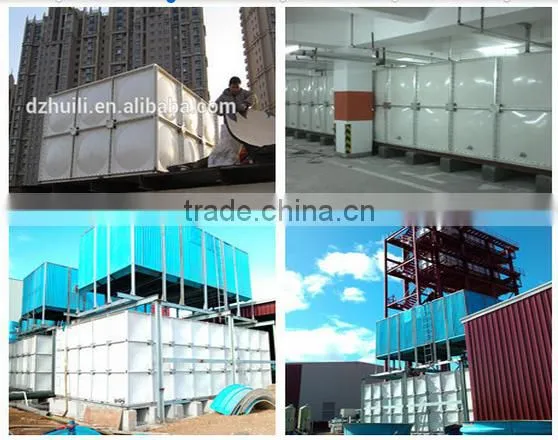

Our successful case
